HOOD ULTRA SPX 0975678, ULTRA SPX SE H975678 and EUROPEAN ULTRA SPX SE E975 (4939533953A011)

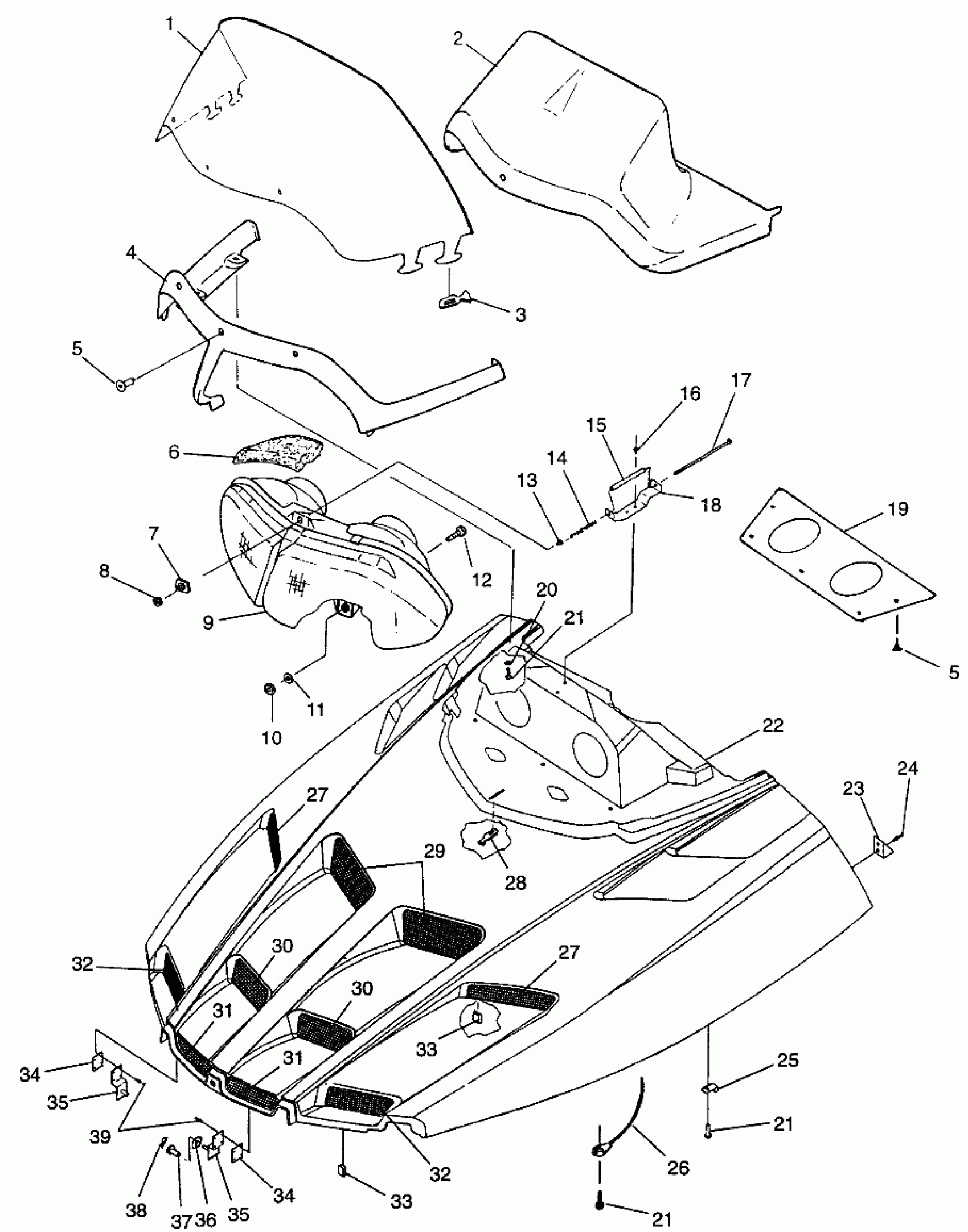

Polaris ULTRA SPX - 0975678 HOOD ULTRA SPX 0975678, ULTRA SPX SE H975678 and EUROPEAN ULTRA SPX SE E975 (4939533953A011) Diagram
#
1
WNDSHLD,LOW,SMOKE(AGR)
5432266
Unavailable
2
HOUSING,INST.
5431780-070
Unavailable
3
RETAINER,WINDSHIELD,(10)
5410970
$1.49
4
RETAINER,W/S,DP.VLT.MET. (Deep Violet Metallic)
5432573-230
Unavailable
5
RIVET,PLASTI-LOC.(50)
7621509
$1.49
5
RIVET,PLASTI-LOC.(50)
7621509
$1.49
6
FOAM-HEADLIGHT
5811094
Unavailable
7
NUT,H/L.PIVOT
5431901
Unavailable
8
NUT, LOCK(10) Substituted by 7541925
7541929
Unavailable
9
BULB,QUARTZ.H/L,INDY
2870448
$24.99
9
RETAINER,H/L BULB
4032063
Unavailable
9
H/L ASM. (Incl., Bulbs)
2431009
$185.99
10
NUT(10)
7542124
Unavailable
11
WASHER(10) Substituted by 7558301
7555776
Unavailable
12
SCREW(10)
7512222
$2.39
13
WASHER,SPECIAL
5020811
Unavailable
14
SPRING,ADJ.H/L
7041397
Unavailable
15
SPACER,TUBE
5333296
Unavailable
16
RIVET(50)
7621485
$1.49
17
SCREW,ADJ.,H/L.(10)
4032072
Unavailable
18
BRKT,H/L ADJUST
5240757-067
Unavailable
19
PLENUM,AIR INTAKE,HD. Substituted by 5432665
5431991
Unavailable
20
BURR,RIVET(50)
7555904
$1.49
21
SCREW(10)
7512026
$1.49
21
SCREW(10)
7512026
$1.49
21
SCREW(10)
7512026
$1.49
22
HOOD,AGR,DP VLT Substituted by 2631895-230 (Incl. Foil & Foam)
2631689-230
Unavailable
23
CUP, HOOD LATCH,(10)
5430733
$4.84
24
RIVET(50)
7621334
$1.49
25
CLAMP, RETAINER(10)
7080372
$3.99
26
CABLE-HOOD RETAINER
7080569
Unavailable
27
SCREEN,LH,SIDEUPP.LOUVER Substituted by 5241146-067
5241145-067
Unavailable
27
SCREEN,RH,SIDEUPP.LOUVER
5241146-067
Unavailable
27
SCREEN,LH,SIDEUPP.LOUVER Substituted by 5241146-067
5241145-067
Unavailable
27
SCREEN,RH,SIDEUPP.LOUVER
5241146-067
Unavailable
28
RETAINER-TAB,(10)
5411075
Unavailable
29
SCREEN,RH,CTR,UPP.LOUVER
5241142-067
$19.83
29
SCREEN,LH,CTR,UPP.LOUVER Substituted by 5241142-067
5241141-067
Unavailable
30
SCREEN,LH,CTR,MID.LOUVER Substituted by 5241140-067
5241139-067
Unavailable
30
SCREEN,CTR,MID.LOUVER
5241140-067
Unavailable
30
SCREEN,LH,CTR,MID.LOUVER Substituted by 5241140-067
5241139-067
Unavailable
30
SCREEN,CTR,MID.LOUVER
5241140-067
Unavailable
31
SCREEN,LOUVER,CTR.LOW.
5241138-067
Unavailable
31
SCREEN,LOUVER,CTR.LOW.
5241138-067
Unavailable
32
SCREEN,RH,SIDELOW.LOUVER
5241144-067
$16.35
32
SCREEN,LH,SIDELOW.LOUVER Substituted by 5241144-067
5241143-067
Unavailable
32
SCREEN,RH,SIDELOW.LOUVER
5241144-067
$16.35
32
SCREEN,LH,SIDELOW.LOUVER Substituted by 5241144-067
5241143-067
Unavailable
33
SPEEDCLIP,'U'TYPE(10)
7670082
Unavailable
33
SPEEDCLIP,'U'TYPE(10)
7670082
Unavailable
34
PLATE,HINGE,BLK.
5211536-067
$5.75
34
PLATE,HINGE,BLK.
5211536-067
$5.75
35
HINGE,UPPER,LH
1012246-067
$15.08
35
HINGE,UPPER,RH
1012247-067
Unavailable
35
HINGE,UPPER,LH
1012246-067
$15.08
35
HINGE,UPPER,RH
1012247-067
Unavailable
36
WASHER(10)
7555734
$1.49
37
BUSHING, HINGE
5431884
Unavailable
38
PIN,HITCH(10)
7661644
$2.39
39
RIVET(50)
7621433
$1.49
