FRONT TORQUE ARM ULTRA SPX 0975678, ULTRA SPX SE H975678 and EUROPEAN ULTRA (4939533953B013)

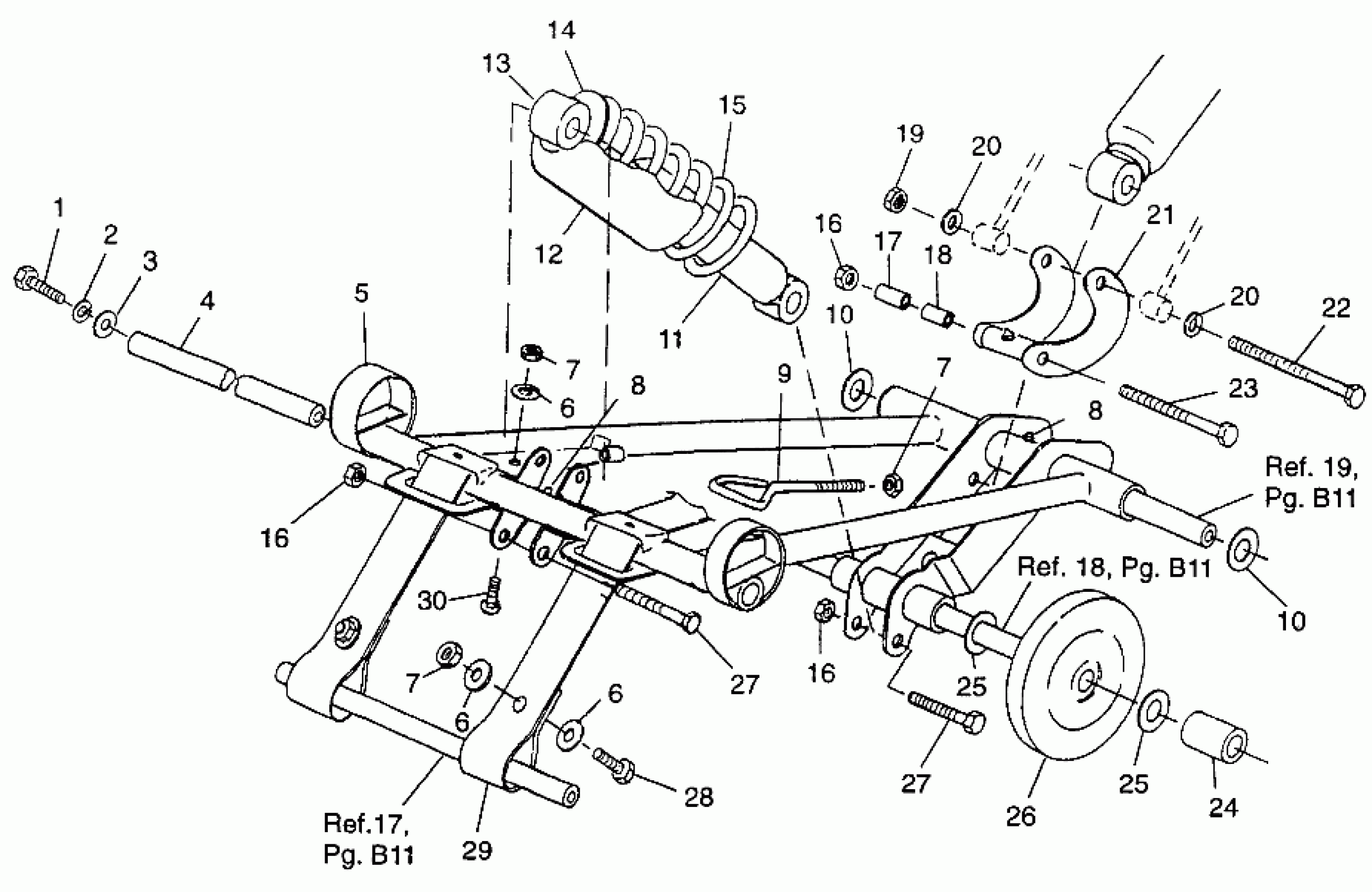

Polaris ULTRA SPX - 0975678 FRONT TORQUE ARM ULTRA SPX 0975678, ULTRA SPX SE H975678 and EUROPEAN ULTRA (4939533953B013) Diagram
#
Description
Price
1
BOLT(10)
7515526
$1.19
2
WASHER(10)
7552603
$1.49
3
WASHER(10) Substituted by 7555893
7555983
Unavailable
4
Shaft
5131450
Unavailable
5
ARM,F.TORQUE,X-10 Substituted by 1541203-067
1541140-067
Unavailable
6
WASHER(10)
7555716
$1.59
6
WASHER(10)
7555716
$1.59
6
WASHER(10)
7555716
$1.59
7
NUT-5/16-18 NYLOK-Y
7542324
$1.49
7
NUT-5/16-18 NYLOK-Y
7542324
$1.49
7
NUT-5/16-18 NYLOK-Y
7542324
$1.49
8
ZERK,FITTING,THREADED(10)
7080433
$1.49
8
ZERK,FITTING,THREADED(10)
7080433
$1.49
9
BOLT,EYE
7010050
Unavailable
10
WASHER(10)
7555893
$1.49
10
WASHER(10)
7555893
$1.49
11
RING, RETAINING(10)
7710424
$0.63
11
RETAINER, SPRING BODY
5020617
Unavailable
12
SHIELD-SPRING
5430671
$24.27
13
Shock, Front Track, Fox (See Pg. A37 For Details)
-------
Unavailable
14
RETAINER,SPRING,SLOTTED,CAST Substituted by 5020618
5630580
Unavailable
15
SPRING,BLACK,COMP.
7041253-067
$95.22
16
NUT LOCK(10)
7542403
$3.99
16
NUT LOCK(10)
7542403
$3.99
16
NUT LOCK(10)
7542403
$3.99
17
Spacer
5333028
$1.59
18
BUSHING,PIVOT TUBE
5020561
$1.59
19
NUT LOCK(10)
7542411
$3.19
20
WASHER-.390X.750X.020-WAVE-Y
7555795
$1.49
20
WASHER-.390X.750X.020-WAVE-Y
7555795
$1.49
21
ARM,SHOCK
1540942-067
Unavailable
22
BOLT(10)
7515472
$2.39
23
BOLT(10)
7515438
$4.79
24
SPACER, OUTER
5332784
Unavailable
25
MACHINERY BUSHING(10)
7556301
$3.19
25
MACHINERY BUSHING(10)
7556301
$3.19
26
Asm., Bogie Wheel (See Pg. A27, Ref. 8)
-------
Unavailable
27
BOLT(10)
7515415
$1.49
27
BOLT(10)
7515415
$1.49
28
BOLT(10)
7515307
$3.99
29
STRAP,LIMITER,FRONT
5411045
Unavailable
30
BOLT(10)
7512377
$4.79
