ENGINE MOUNTING - H975678 (4939533953C003)

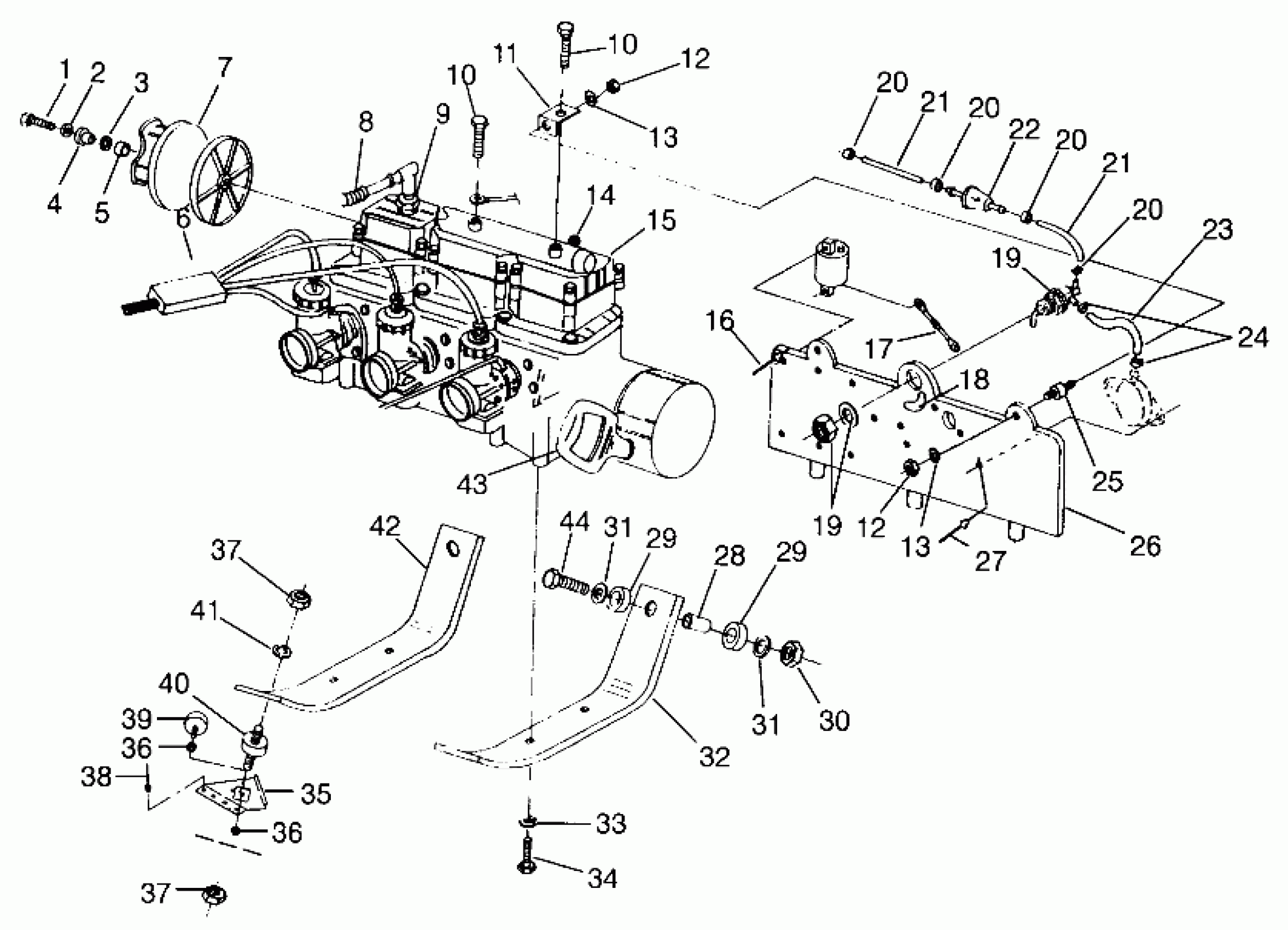

Polaris ULTRA SPX - 0975678 ENGINE MOUNTING - H975678 (4939533953C003) Diagram
#
1
SCREW
7512595
Unavailable
2
WASHER-7/16-INT LK-(1222)-Z
7575202
$4.79
3
O RING,(10)
5410507
$1.49
4
WASHER,CLUTCH RETAIN.
5010287
$12.99
5
SPACER,CLUTCH BOLT
5020513
$44.99
6
CABLE,THROTTLE,W/OIL
7080623
Unavailable
7
Asm., Drive Clutch ( See Pg. C1, Ref. 18)
-------
Unavailable
8
TUBING,CONVOLUTED
5521147
Unavailable
9
SPARKPLUG(8)
3070165
$3.99
10
Bolt (See Pg. C12, Ref. 1)
-------
Unavailable
10
Bolt (See Pg. C12, Ref. 1)
-------
Unavailable
11
BRKT,HDWE MT.,BLK.
5241179-067
Unavailable
12
NUT HEX(10)
7542105
$3.99
12
NUT HEX(10)
7542105
$3.99
13
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
13
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
14
Thermo Switch, Comp. (SPX) (See Pg. C12,Ref. 11)
-------
Unavailable
14
SENSOR,TEMPERATURE (SE) (EURO)
4110179
Unavailable
15
ENG.(S.B.)EC68PL-03 [No Longer Available] (EC68PL03)- NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston and crankshaft assembly. Prior a
3085233
Unavailable
16
RIVET(50)
7621233
Unavailable
17
STRAP,GND,(IGN.COIL)
5211663
$3.51
18
DECAL,FUEL SHUT-OFF
7073869
Unavailable
19
VALVE,FUEL SHUTOFF
7051016
Unavailable
19
VALVE,FUEL SHUTOFF
7051016
Unavailable
20
HOSE CLAMP, RED
7080003
$1.49
20
HOSE CLAMP, RED
7080003
$1.49
20
HOSE CLAMP, RED
7080003
$1.49
20
HOSE CLAMP, RED
7080003
$1.49
21
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
21
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
22
FILTER FUEL,(10)
2530008
$4.84
23
FUEL LINE, 5 FT.
8450044-153
Unavailable
24
CLAMP,SPRING,(10)
7080534
$1.59
25
MOUNT,CARB.
3110050
$12.99
26
MOUNT,ENG.HARDWARE
5432094
$21.43
27
RIVET(50)
7621234
Unavailable
28
SPACER, (MTR.MT.)
5332778
Unavailable
29
MOUNT, ENGINE
5410390
Unavailable
29
MOUNT, ENGINE
5410390
Unavailable
30
NUT, LOCK,(10)
7542503
$10.39
31
WASHER(10)
7555740
$1.59
31
WASHER(10)
7555740
$1.59
32
PLATE,RH,ENGINE Substituted by 5243344
5241704
Unavailable
33
WASHER LOCK(10)
7553101
$3.99
34
BOLT(10)
7512575
Unavailable
35
LIMITER,TORQUE
1012277-067
Unavailable
36
NUT,HEX(10)
7542414
$4.79
36
NUT,HEX(10)
7542414
$4.79
37
NUT,FLEXLOCK,(10)
7547008
$6.39
37
NUT,FLEXLOCK,(10)
7547008
$6.39
38
RIVET-3/16-.090-.290
7661637
$1.49
39
STOP,TORQUE,COARSE
3110058
Unavailable
40
MOUNT,ENGINE
3110062
Unavailable
41
WASHER(10) Substituted by 7555806
7555720
$0.79
42
PLATE,LH,ENGINE Substituted by 5243528
5241703
Unavailable
43
HANDLE,RECOIL Substituted by 5431499-070
5431499
Unavailable
44
SCREW(10)
7512530
$5.59
