CARBURETOR ULTRA SPX 0975678, ULTRA SPX SE H975678 and EUROPEAN ULTRA SPX S (4939533953D001)

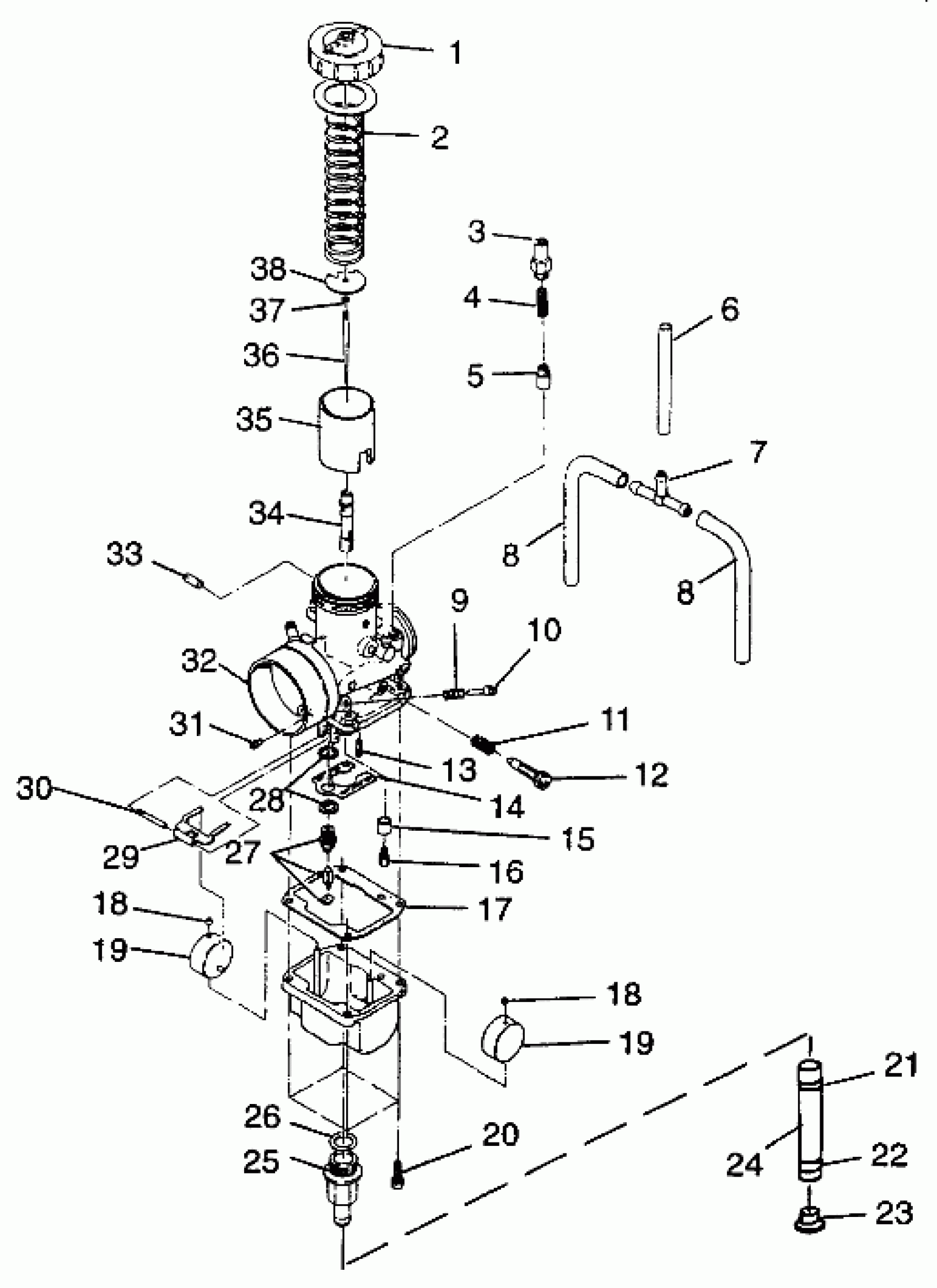

Polaris ULTRA SPX - 0975678 CARBURETOR ULTRA SPX 0975678, ULTRA SPX SE H975678 and EUROPEAN ULTRA SPX S (4939533953D001) Diagram
#
1
TOP ASM.
3130644
Unavailable
2
SPRING,THROTTLE
3130444
Unavailable
3
HOLDER,GUIDE
3130199
$28.32
4
SPRING,PLUNGER
3130006
$8.89
5
PLUNGER ASM, STARTER
3130328
$32.37
6
HOSE
3130659
Unavailable
7
NIPPLE
3130611
Unavailable
8
HOSE
3130605
Unavailable
8
HOSE
3130605
Unavailable
9
SPRING,AIR ADJUST
3130012
$8.89
10
SCREW,AIR
3130011
$19.99
11
SPRING,THROTTLE ADJ.
3130010
$8.89
12
SCREW,THROTTLE STOP
3130009
$19.99
13
JET,PILOT,#50(10) (#50)
3130629
$7.27
14
PLATE
3130243
Unavailable
15
RING,CARB
3130232
Unavailable
16
JET,MAIN,HX.HD#380(10) (#380)
3130140
$7.27
17
GASKET,FLOAT CHAMBER
3130236
$12.13
18
CAP,(10)
3130237
$4.03
18
CAP,(10)
3130237
$4.03
19
FLOAT ASM
3130021
$40.46
19
FLOAT ASM
3130021
$40.46
20
SCREW
3130056
$3.19
21
CLAMP,SPRING,(10)
7080534
$1.59
22
CLAMP,HOSE(10)
7080544
Unavailable
23
PLUG,TRAP
5431893
$12.94
24
FUEL LINE, 5 FT.
8450045-153
$99.99
25
FITTING,SEDIMENT Substituted by 3130573
5020476
$10.63
26
O RING
3130239
Unavailable
27
VALVE ASM,NEEDLE
3130643
$56.65
28
WASHER(10)
3130047
$4.84
29
ARM,FLOAT
3130048
Unavailable
30
PIN, FLOAT
3130361
$8.89
31
JET,AIR,(PAJ1) (PAJ1)
3130256
Unavailable
32
CARBURETOR #1 (Incl. 1-20, 25-38)
3130707
Unavailable
32
CARBURETOR #2 (Incl. 1-20, 25-38)
3130708
$338.29
33
CAP
3130479
$14.56
34
JET,NEEDLE,Q-2 (247)
3130165
Unavailable
35
VALVE,THROTTLE,(3.0) (3.0)
3130352
Unavailable
36
JET NEEDLE (6CEY06)
3130476
$24.27
37
E-RING,(10)
3130508
$6.46
38
PLATE, THROTTLE
3130054
$6.46
