SEAT and GAS TANK ULTRA SP 0970678 (4938093809A006)

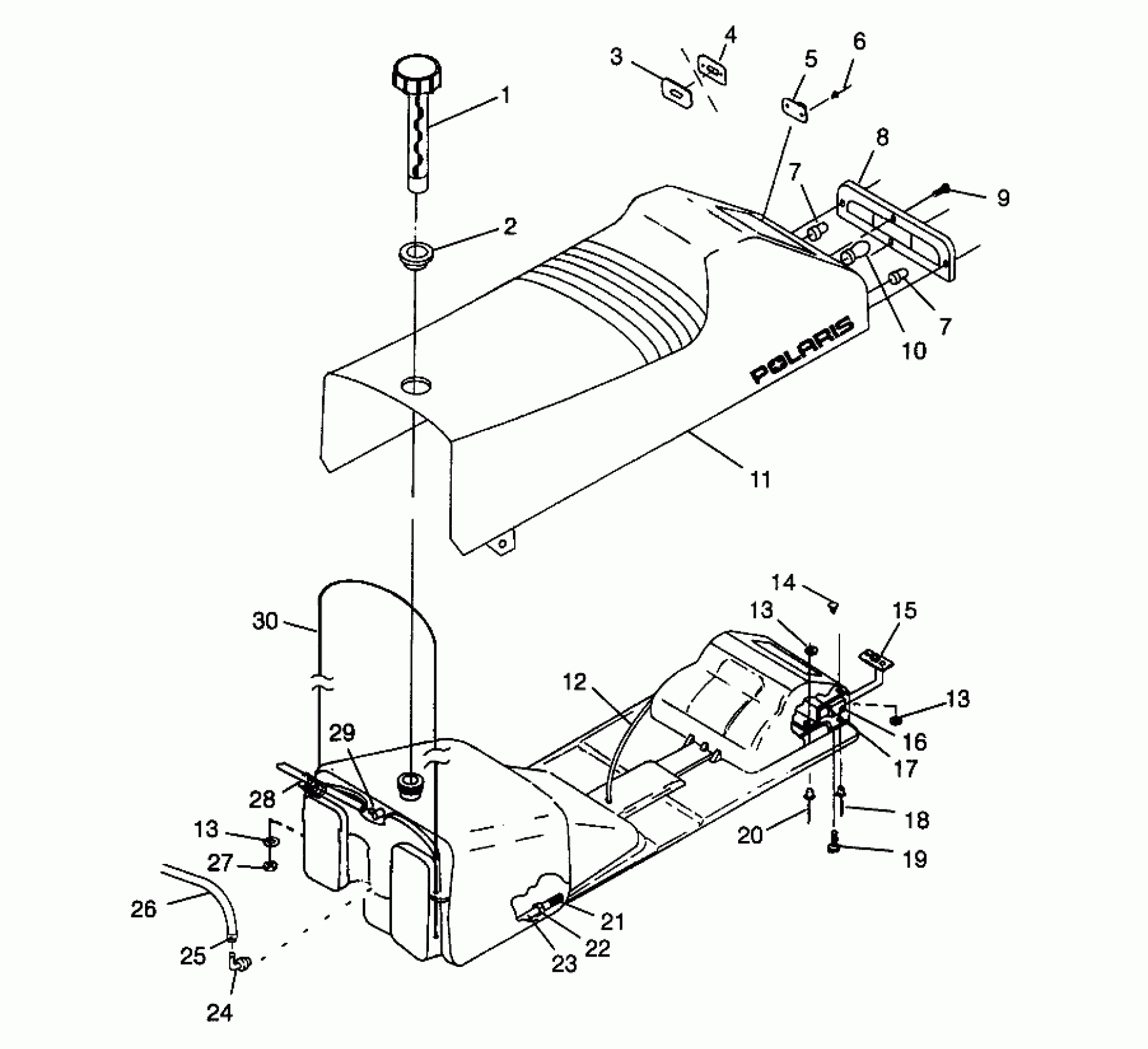

Polaris ULTRA SP - 0970678 SEAT and GAS TANK ULTRA SP 0970678 (4938093809A006) Diagram
#
Description
Price
1
GASKET, GAS CAP
5810513
$8.89
1
CAP,GAS,W/GAUGE
2511248
$44.51
2
GROMMET,FUELTANK
5410842
Unavailable
3
GROMMET,RELATCH,1",BOTT.(10)
7080550
Unavailable
4
GROMMET,RELATCH,1",TOP(10)
7080549
Unavailable
5
TWISTLOCK,RELATCH,1",W/HOLE(10)
7080548
Unavailable
6
RIVET(50)
7621337
$1.49
7
BULB,TAILLIGHT(10)
4030024
$4.84
7
BULB,TAILLIGHT(10)
4030024
$4.84
8
LENS,TAILLIGHT
5430423
Unavailable
9
SCREW(10)
7511840
Unavailable
10
Bulb, Brakelight
4030045
Unavailable
11
SEAT ASM,STD. (Incl. 2-6, 8-18, 21-24, 27, 29, 30)
2681995
Unavailable
11
COVER ASM,SEAT,STD
2682121
Unavailable
12
HARNESS,TAILLIGHT
2460398
Unavailable
13
WSHR-.194X.475X.049 ZTB
7555746
Unavailable
13
WSHR-.194X.475X.049 ZTB
7555746
Unavailable
13
WSHR-.194X.475X.049 ZTB
7555746
Unavailable
14
CLIP,DART,(10)
7670097
Unavailable
15
NUT,RETAINER-WELD.(10)
7542147
$17.59
16
HOUSING,TAILLIGHT Substituted by 5433341
5431545
Unavailable
17
COVER,T/L PROTECTOR
5431436
$21.43
18
RIVET(50)
7621301
$3.99
19
SCREW(10)
7512242
$2.39
20
RIVET(50)
7621464
$3.99
21
FUELPICKUP,W/STRAINER
7052037
$12.94
22
RING, COMPRESSION(10)
7080402
$1.60
23
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
24
FITTING,OUT,90 DEG,,DOUBLE
7052143
Unavailable
25
CLAMP-HOSE, (LARGE GREEN) (Large Green)
7080307
$1.49
26
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
27
NUT(10)
7541925
$1.49
28
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
28
SPRING,PROTECT.VENTHOSE
7041605
Unavailable
29
FITTING,90 DEG,1/8,(10)
7052095
$4.79
30
CABLE,TANK,RETENTION
7080559
Unavailable
