RAIL MOUNTING (SUSPENSION) ULTRA SP 0970678 (4938093809B010)

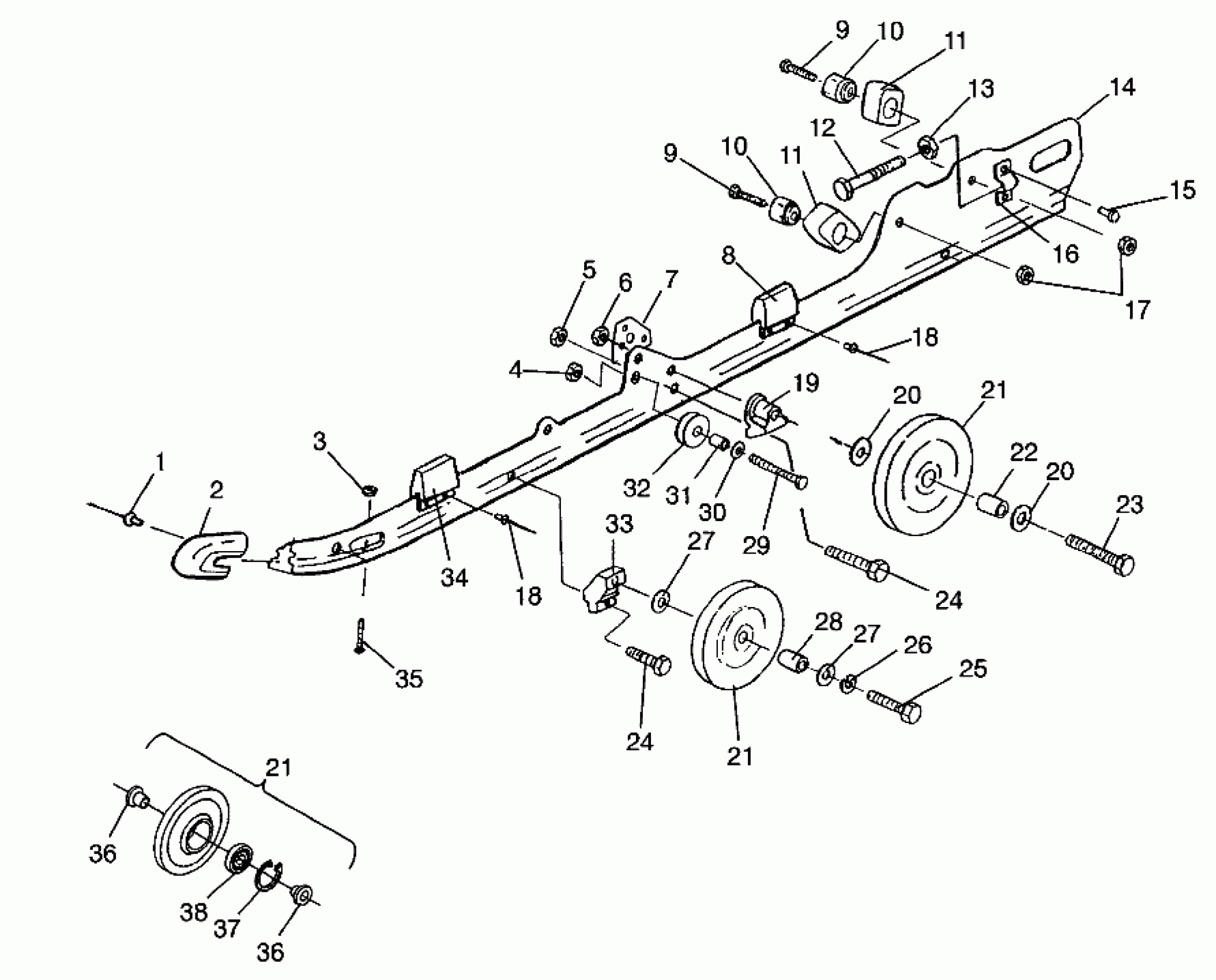

Polaris ULTRA SP - 0970678 RAIL MOUNTING (SUSPENSION) ULTRA SP 0970678 (4938093809B010) Diagram
#
1
RIVET(50)
7621435
$1.49
2
COVER, RAIL TIP Substituted by 5433005
5431421
Unavailable
3
NUT-LOCK(10)
7542122
$1.49
4
NUT LOCK(10)
7542411
$3.19
5
NUT-LOCK(10)
7542439
$1.49
6
NUT, NYLOCK(10)
7542525
$4.79
7
BRKT,RAIL,REINF
5211790
Unavailable
8
REINF., BUMPER
5222629
$13.75
8
BUMPER, RAIL
5810554
$7.27
9
BOLT(10)
7515537
$10.99
9
BOLT(10)
7515537
$10.99
10
MOUNT,F.BUMPER PIVOT ARM
5131113
$28.32
10
MOUNT,F.BUMPER PIVOT ARM
5131113
$28.32
11
BUMPER,F.PIVOT ARM
5410925
$12.94
11
BUMPER,F.PIVOT ARM
5410925
$12.94
12
BOLT, ADJUSTER(10)
7515455
$29.99
13
NUT(10)
7542440
Unavailable
14
RAIL,LH,121,XTRA 10 (Incl. 2, 8, 16, 34)
1541146
$288.99
14
RAIL,RH,121,XTRA 10 (Incl. 2, 8, 16, 34)
1541147
Unavailable
15
RIVET,(50)
7621501
$2.39
16
BLOCK-IDLER BOLT ADJ.
5130530
$32.37
17
NUT LOCK(10)
7542403
$3.99
18
RIVET-3/16 (.626-.750) Q-AL-ST
7621476
$1.49
18
RIVET-3/16 (.626-.750) Q-AL-ST
7621476
$1.49
19
SPACER
5630399
$11.99
20
WASHER, FLAT(10)
7555852
$2.39
20
WASHER, FLAT(10)
7555852
$2.39
21
WHEEL, IDLER (Incl. 36-38)
1543018
$56.65
21
WHEEL, IDLER (Incl. 36-38)
1543018
$56.65
21
WHEEL, IDLER (Incl. 36-38)
1543018
$56.65
22
SPACER, WHEEL
5333116
$7.99
23
BOLT(10)
7512538
$6.39
24
BOLT(10)
7512404
$3.99
24
BOLT(10)
7512404
$3.99
25
BOLT(10)
7512659
$7.99
26
LOCK WASHER(10)
7553201
$3.99
27
WASHER(10)
7555804
$3.99
27
WASHER(10)
7555804
$3.99
28
SPACER
5332786
$7.99
29
BOLT Substituted by 7515491
7515433
$1.59
30
WASHER(10)
7555743
Unavailable
31
Spacer
5332787
Unavailable
32
ROLLER,SPRING
5432170
Unavailable
33
BRACKET,BOGIE WHEEL
5130570
$48.56
34
BUMPER,SUSPENSION
5811097
Unavailable
35
BOLT(10)
7515175
$3.99
36
INSERT, WHEEL,(10) (2 Per Wheel)
5431531
$9.70
36
INSERT, WHEEL,(10) (2 Per Wheel)
5431531
$9.70
37
RET.RING-TRUARC (1 per Wheel)
7718407
$4.79
38
BEARING (1 per Wheel)
3514303
$11.99
