PISTON and CRANKSHAFT ULTRA SP 0970678 (4938093809C008)

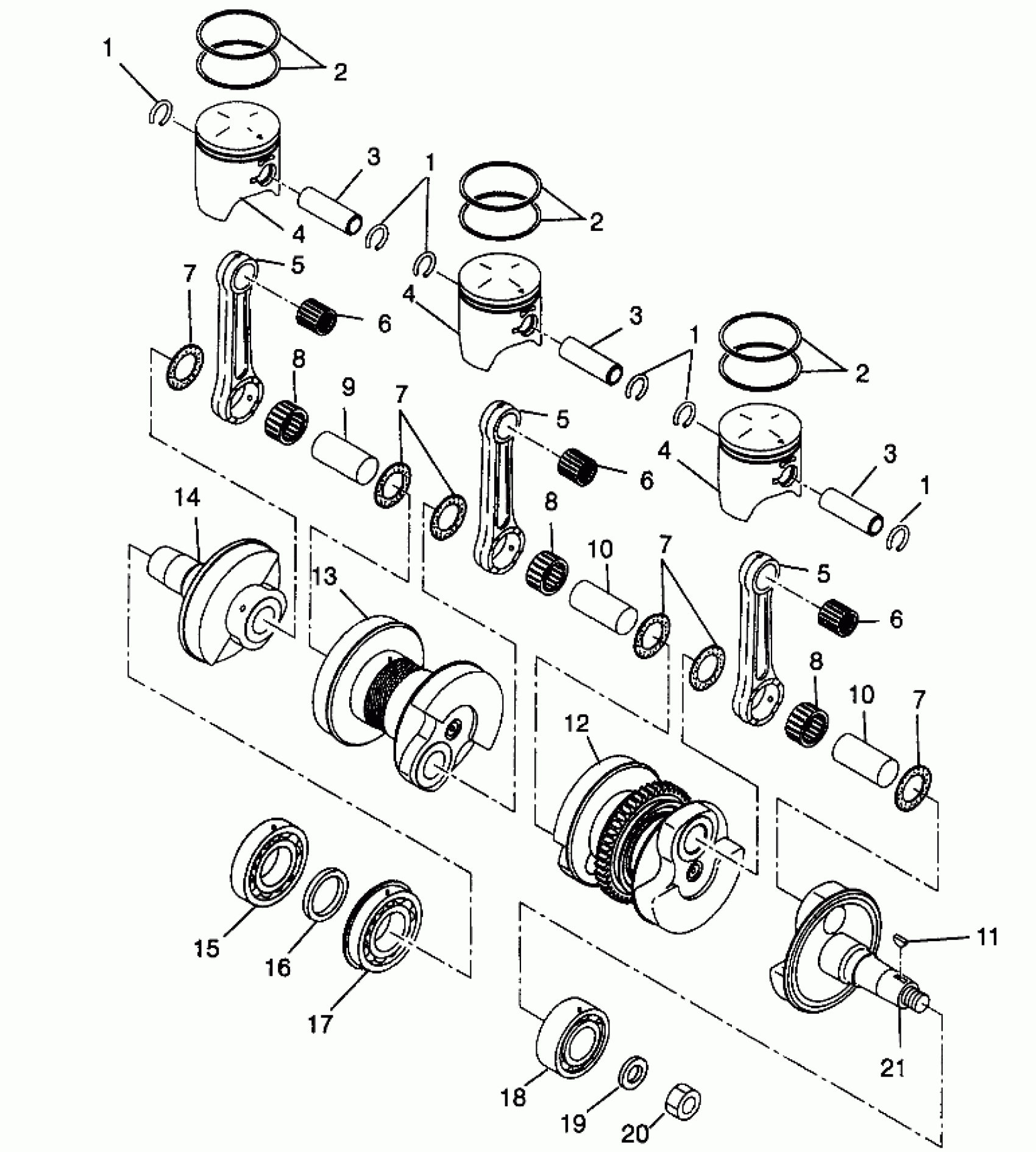

Polaris ULTRA SP - 0970678 PISTON and CRANKSHAFT ULTRA SP 0970678 (4938093809C008) Diagram
#
Description
Price
1
CLIP,(10)
3084167
$6.39
1
CLIP,(10)
3084167
$6.39
1
CLIP,(10)
3084167
$6.39
1
CLIP,(10)
3084167
$6.39
2
RING, PISTON
3085132
Unavailable
2
RING, PISTON
3085132
Unavailable
2
RING, PISTON
3085132
Unavailable
3
Pin, Piston
3083849
$19.83
3
Pin, Piston
3083849
$19.83
3
Pin, Piston
3083849
$19.83
4
PISTON
3085262
$138.08
4
PISTON
3085262
$138.08
4
PISTON
3085262
$138.08
5
ROD,CONNECTING
3085256
Unavailable
5
ROD,CONNECTING
3085256
Unavailable
5
ROD,CONNECTING
3085256
Unavailable
6
BEARING, SMALL END Substituted by 3085595
3083216
$16.57
6
BEARING, SMALL END Substituted by 3085595
3083216
$16.57
6
BEARING, SMALL END Substituted by 3085595
3083216
$16.57
7
Spacer
3083804
$19.99
7
Spacer
3083804
$19.99
7
Spacer
3083804
$19.99
7
Spacer
3083804
$19.99
8
BEARING,LARGE END
3085257
$35.99
8
BEARING,LARGE END
3085257
$35.99
8
BEARING,LARGE END
3085257
$35.99
9
PIN,CRANK #2 (58.5mm)
3085259
Unavailable
10
PIN,CRANK #1 (51mm)
3085258
Unavailable
10
PIN,CRANK #1 (51mm)
3085258
Unavailable
11
KEY Substituted by 3081543
3080130
Unavailable
12
CRANKSHAFT,CTR. (Incl. 5, 7-10, 12, 13)
3085472
$995.03
12
CRANKSHAFT,MAG SIDE (Incl. 10)
3085473
$559.99
13
CRANKSHAFT,PTO (Incl. 9)
3085254
Unavailable
14
CRANKSHAFT,#3
3085255
$319.99
15
BEARING,BALL
3085545
$59.99
16
Spacer
3085261
Unavailable
17
BALLBEARING Substituted by 3085753
3085125
Unavailable
18
BEARING, BALL
3085260
Unavailable
19
Washer
3084457
Unavailable
20
NUT
3083093
$19.99
21
CRANKSHAFT #1
3085251
$329.99
21
CRANKSHAFT ASM. (Incl. 5, 7-10, 12-18, 21)
3085450
$1,684.99
