FRONT SUSPENSION and SKI ULTRA SP 0970678 (4938093809B001)

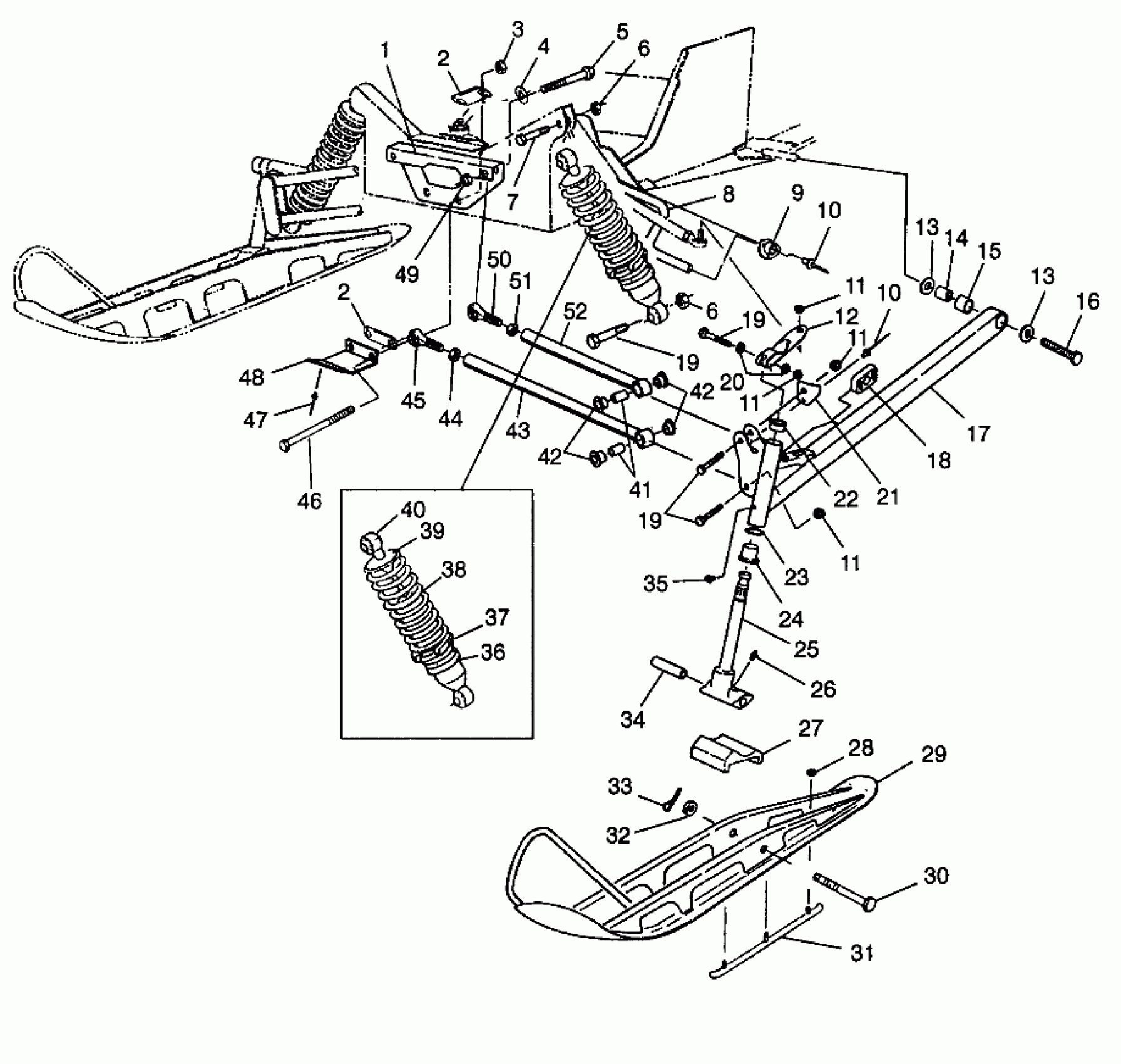

Polaris ULTRA SP - 0970678 FRONT SUSPENSION and SKI ULTRA SP 0970678 (4938093809B001) Diagram
#
1
BRACE,FR.BULKH.,BLK Substituted by 5242112-067
5241641-067
Unavailable
2
STRAP,SPACER BOTTOM
5211345
$12.99
2
STRAP,SPACER BOTTOM
5211345
$12.99
3
NUT FLEX,(10)
7542703
Unavailable
4
WASHER THRUST(10)
7558702
$1.59
5
BOLT(10)
7512551
Unavailable
6
NUT, NYLOC(10)
7542453
Unavailable
6
NUT, NYLOC(10)
7542453
Unavailable
7
BOLT(10) Substituted by 7515415
7515515
Unavailable
8
BAR,SWAY,BLK,
5224742-067
Unavailable
9
BUSHING,SWAY BAR
5432038
$19.99
10
RIVET(50) Substituted by 7661130
7661643
Unavailable
10
RIVET(50) Substituted by 7661130
7661643
Unavailable
11
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
11
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
11
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
11
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
12
ARM,LH,STRG,BLK.
5241660-067
Unavailable
12
ARM,RH,STRG,BLK.
5241661-067
Unavailable
13
WASHER(10)
7555721
$1.49
13
WASHER(10)
7555721
$1.49
14
TUBE, BUSHING
5010310
$9.70
15
PIVOT,TRLG.ARM,RUBBER
5410872
$10.99
16
BOLT(10)
7512557
$7.60
17
ARM,TRLG,LH (Incl. 14, 15)
1822449
Unavailable
17
ARM,TRLG,RH (Incl. 14, 15)
1822450
Unavailable
18
SLIDE,SWAYBAR,5/8
5432331
$28.32
19
BOLT(10) Substituted by 7517583
7515491
Unavailable
19
BOLT(10) Substituted by 7517583
7515491
Unavailable
19
BOLT(10) Substituted by 7517583
7515491
Unavailable
20
WASHER(10) Substituted by 7555832
7555851
Unavailable
21
STOP,LH,STRG,BLK
5241777-067
$15.08
21
STOP,RH,STRG,BLK.
5241778-067
$18.23
22
BUSHING-FLANGE
3573909
$2.39
23
WASHER SPECIAL(10)
7556509
$1.59
24
BUSHING,SPINDLE HSG,(10)
3574208
$3.19
25
SHAFT,SPINDLE,TRLG,BLK
6230102-067
$294.99
26
FITTING,LUBE.W/BALL CK.(10)
7080306
$3.19
27
Stop, Rubber
5411083
$12.94
28
NUT-5/16-18 NYLOK-Y
7542324
$1.49
29
SKI WELD
1820430-067
Unavailable
30
BOLT(10)
7515462
$8.79
31
SKAG,PR.,CARBIDE
2870693
$69.99
32
NUT, CASTLE(10) Substituted by 7542438
7542457
Unavailable
33
PIN, COTTER(10) Substituted by 7661205
7661209
Unavailable
34
BUSHING,PIVOT,(10)
5010158
$19.99
35
ZERK,FITTING,THREADED(10)
7080433
$1.49
36
RETAINER,SPRING,BODY,THREADED
1500063
$44.51
37
RING,SPRING PRELOAD ADJ.
5431734
$52.60
38
SPRING,COMP,IFS
7041550-067
Unavailable
39
RETAINER,SPRING,SLOTTED,CAST Substituted by 5020618
5630580
Unavailable
40
SHOCK,GAS,IFS,SELECT
7041523
Unavailable
41
BUSHING-RADIUS ROD,(10)
5010127
$7.99
42
BUSH,RAD.ROD PIVOT,OUT.
5431486
$3.19
42
BUSH,RAD.ROD PIVOT,OUT.
5431486
$3.19
43
ROD,RAD,LOWER,BLK
1822377-067
Unavailable
44
NUT-JAM(10)
7542711
$2.39
45
ROD END,RH Substituted by 7061011
7060156
Unavailable
46
BOLT(10)
7512678
$19.99
47
RIVET(50)
7621452
$1.49
48
BRACE, PAN
5223997-067
Unavailable
49
NUT, LOCK,(10)
7542503
$10.39
50
ROD END, RH Substituted by 7061010
7060155
Unavailable
51
NUT JAM(10)
7542520
$2.39
52
ROD,RAD,UPPER,BLK
1822375-067
Unavailable
