DRIVE TRAIN ULTRA SP 0970678 (4938093809B008)

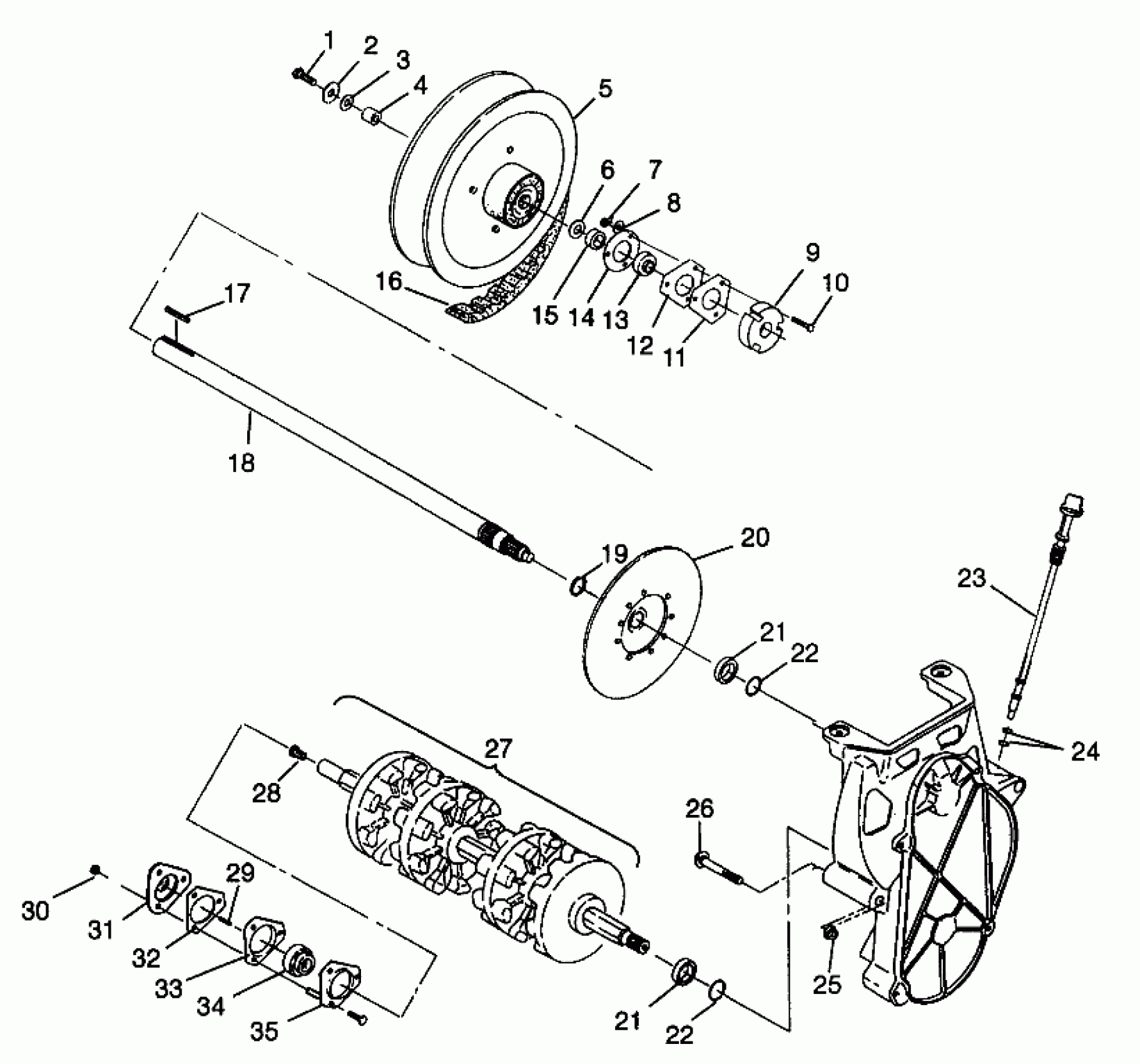

Polaris ULTRA SP - 0970678 DRIVE TRAIN ULTRA SP 0970678 (4938093809B008) Diagram
#
Description
Price
1
BOLT(10)
7515369
$4.79
2
WASHER FLAT(10)
7555701
$3.99
3
WASHER(10)
7555734
Unavailable
4
Spacer
5020913
Unavailable
5
Asm., Driven Clutch (See Pg. A28, Ref. 15)
-------
Unavailable
6
WASHER SPECIAL(10)
7556509
Unavailable
7
NUT,NYLOC,(10)
7542344
$3.99
8
WASHER-.344X.688X.063 FL-Y
7558402
$1.49
9
SPACER,BRG,JACKSHAFT
5131443
$40.79
10
BOLT,CARRIAGE(10)
7515383
Unavailable
11
FLANGETTE
5222751
$16.44
12
GASKET,JACKSHAFT,BLK.
5811095
$2.41
13
BEARING,1"X52MM,SPHER.
3514523
Unavailable
14
FITTING,LUB/VEN(10)
7080561
$4.79
14
FLANGE RD,RELUBE W/ZERK
5241359
$32.37
15
Spacer
5020837
$24.99
16
BELT,DRIVE(5)
3211066
$109.99
17
KEY(10)
7721116
$12.94
18
JACKSHAFT ASM,LONG,.63 Substituted by 2201117 (Incl. 19)
1332189
Unavailable
19
RING, RETAINING(10)
7710422
$3.99
20
DISC ASM, BRAKE
1910086
Unavailable
20
DISC, BRAKE [No Longer Available]
5211324
Unavailable
21
SLEEVE, SEAL
5020588
$23.99
21
SLEEVE, SEAL
5020588
$23.99
22
O RING,(10)
5410613
$1.99
22
O RING,(10)
5410613
$1.99
23
DIPSTICK Substituted by 1332143
5431419
Unavailable
24
O-RING
5410675
$1.60
25
NUT(10)
7542423
$3.99
26
BOLT(10)
7515428
$4.79
27
DRIVESHAFT ASM,HD,PRESS BRG Substituted by 1590258 (Incl. 28)
1590253
Unavailable
28
BUSHING METAL SPEEDO
3280019
$11.99
29
SQ. KEY SPEEDOMETER,(10)
3280017
$13.75
30
NUT-5/16-18 NYLOK-Y
7542324
$1.49
31
ADAPTER,DRIVE,W/ZERK
3280116
$101.17
32
GASKET,DRIVE ADAPTOR,(10)
5830012
$2.41
33
FLANGETTE Substituted by 5243529
5241178
$13.75
34
BEARING,1"X52MM,SPHER.
3514524
Unavailable
35
FLANGETTE ASM,,W/ SCREWS Substituted by 1012945
1012434
Unavailable
