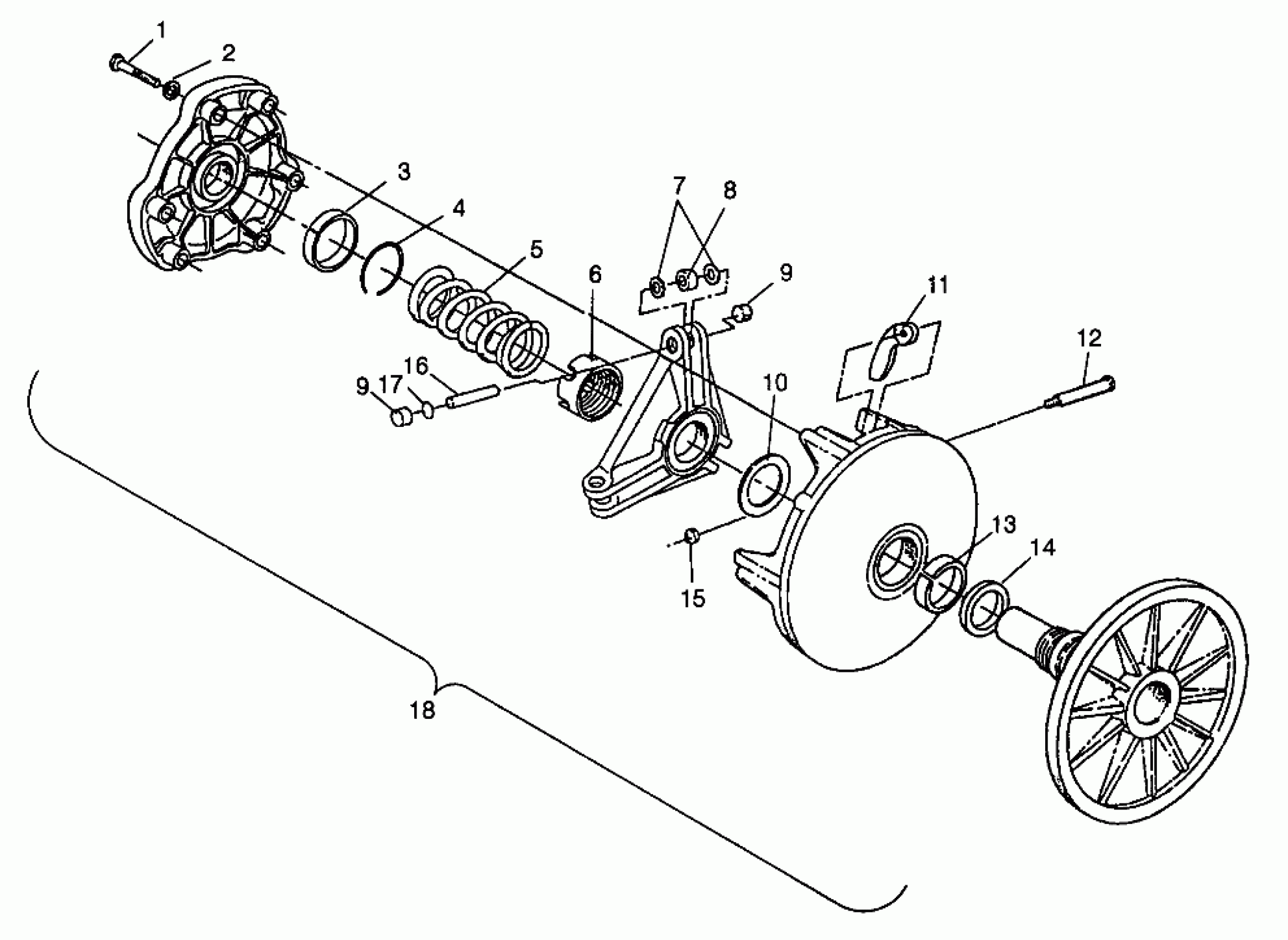

Polaris ULTRA SP - 0970678 DRIVE CLUTCH ULTRA SP 0970678 (4938093809B013) Diagram

#

Description
Price

1

BOLT,(10)

7512265

$3.99

2

LOCK WASHER(10)

7552801

$1.59

3

COVER,BEARING,GARMAX

3576516

$28.32

4

RING-RETAINING,COVER

7710417

$1.49

5

SPRING,CLUTCH,SIL/GOLD (Gold)

7041286

$56.65

6

NUT-JAM

5020425

$23.99

7

WASHER,MULTILUBE

5430945

$1.59

8

ASM-ROLLER AND BUSHING

1321457

$40.46

9

BUTTON, GUIDE,(10)

5430445

$6.39

9

BUTTON, GUIDE,(10)

5430445

$6.39

10

SPACER(10)

5210754

Unavailable

10

SPACER(10)

5210752

Unavailable

10

SPACER(10)

5210753

Unavailable

11

WT/BUSH.ASM,10-54(3)

1321685

$40.46

12

PIN-WEIGHT,HARDENED,1/4X2.00

7515105

$13.75

13

SLEEVE, BEARING

3576502

$23.99

14

INSERT-MOVEABLE

5010188

$7.99

15

NUT FLEX LOC(10)

7541906

$3.19

16

PIN-ROLLER

5020422

$2.39

17

Kit - Shim, Drive Clutch

2200387

$24.27

18

KIT,CLUTCH UPDATE (Incl. 7-9, 11, 12, 15)

2200386

$161.89

18

CLUTCH,BASIC#74(DRIVE) Substituted by 1321733 (Less 5, 13)

1321714

Unavailable
