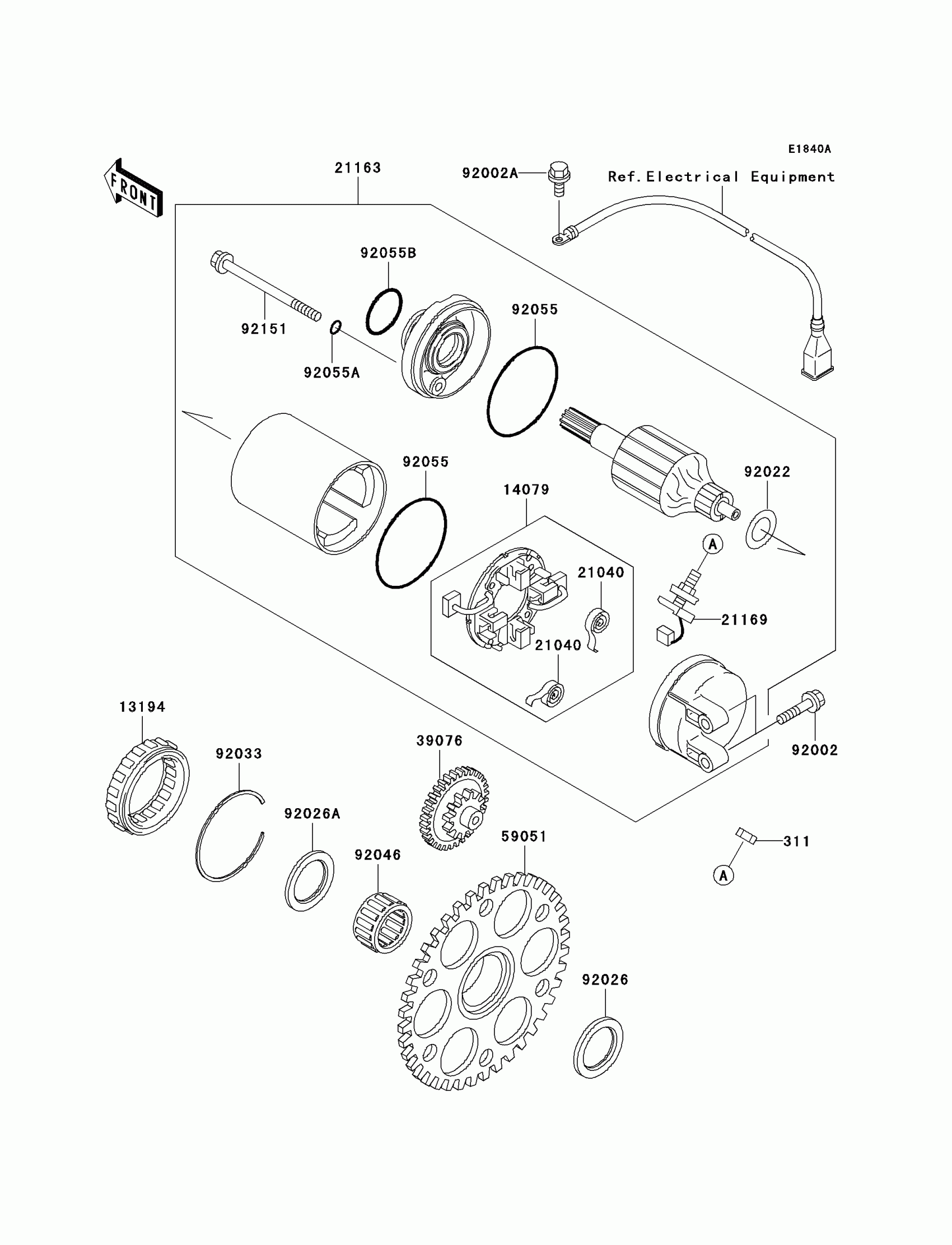

Kawasaki Ultra 150 Starter Motor(JH1200-A3/A4) Diagram

Description

Price

311

NUT-HEX,6MM

311R0600

$0.70

13194

CLUTCH-ONEWAY

13194-3704

$108.41

14079

HOLDER-ASSY

14079-3725

$175.18

21040

SPRING-BRUSH

21040-3702

$9.59

21163

STARTER-ELECTRIC

21163-3719

$653.23

21169

TERMINAL

21169-3701

$44.77

39076

LIMITER

39076-3703

$174.46

59051

GEAR-SPUR

59051-3706

$131.50

92002

BOLT,6X25

92002-3714

$5.00

92002A

BOLT,6X12

92002-3763

$4.69

92022

WASHER

92022-2200

$1.45

92026

SPACER,28X38X3.0

92026-3738

Unavailable

92026A

SPACER,26.3X38X2.5

92026-3739

Unavailable

92033

RING-SNAP

92033-3731

$6.16

92046

BEARING-NEEDLE,KT283315E01

92046-3701

$19.72

92055

RING-O,62MM

92055-1260

$10.35

92055A

RING-O,4.5MM

92055-1261

$2.87

92055B

RING-O,24.4X3.1

92055-1262

$12.46

92151

BOLT

92151-3809

$14.78
