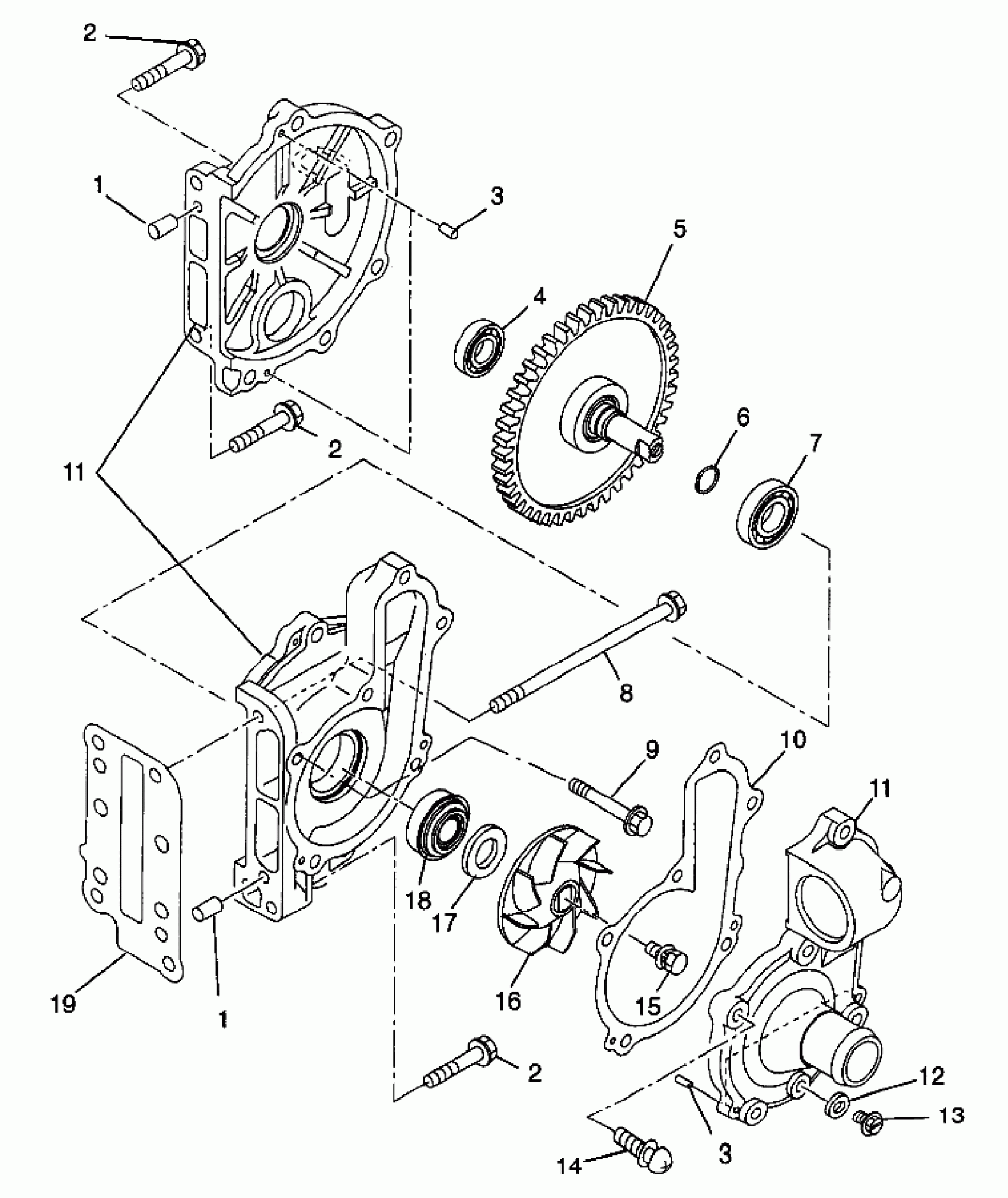

Polaris ULTRA - 0986778 WATER PUMP ULTRA 0986778 (4943554355C009) Diagram
#
Description
Price
1
PIN, DOWEL Substituted by 3086838
3080103
$7.14
1
PIN, DOWEL Substituted by 3086838
3080103
$7.14
2
Bolt, Flange
3085295
$2.63
2
Bolt, Flange
3085295
$2.63
2
Bolt, Flange
3085295
$2.63
3
PIN, DOWEL
3084721
$4.79
3
PIN, DOWEL
3084721
$4.79
4
BEARING, BALL
3085286
Unavailable
5
SHAFT,WATER PUMP *
3085269
Unavailable
6
O-RING,(WATER PUMP SHAFT)
3085149
Unavailable
7
BALLBEARING
3085145
Unavailable
8
Bolt, Flange
3085272
$6.23
9
BOLT&WASHER
3085470
$1.49
10
GASKET,(PUMP CASING 1)
3085151
Unavailable
11
PUMP ASM,WATER (Incl. 1, 3-7, 9-18)
3085451
Unavailable
11
CASING,PUMP,1 Substituted by 3085451 (Incl. 3)
3085452
Unavailable
11
PUMP,WATER (Incl. 1, 3, 4, 7, 18)
3085453
Unavailable
11
PUMP ASM,WATER (Incl. 1, 3-7, 9-18)
3085451
Unavailable
11
CASING,PUMP,1 Substituted by 3085451 (Incl. 3)
3085452
Unavailable
11
PUMP,WATER (Incl. 1, 3, 4, 7, 18)
3085453
Unavailable
12
GASKET, ALUM,(10) Substituted by 7555998
3082758
$1.19
13
PLUG, AIR VENT Substituted by 7517266
3083350
Unavailable
14
SCREW&WASHER ASM.(10)
3084221
$2.39
15
Bolt
3085270
Unavailable
16
IMPELLER UNIT
3085174
Unavailable
17
PLATE,SEALING
3085175
Unavailable
18
Seal, Mechanical
3085384
$60.70
19
GASKET, WATER PUMP
3085271
Unavailable
