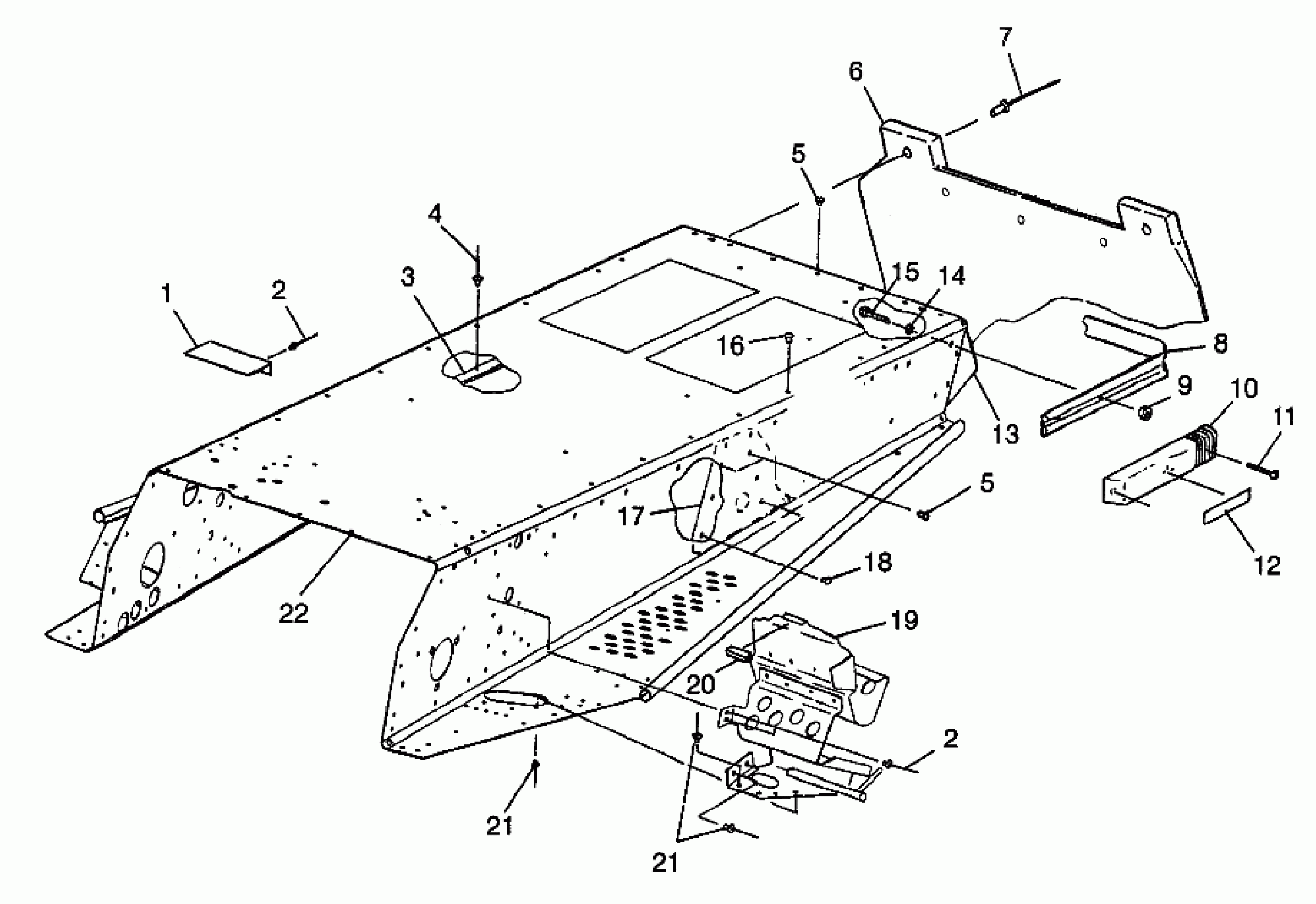

Polaris ULTRA - 0986778 TUNNEL ULTRA 0986778 (4943554355A006) Diagram
#
Description
Price
1
BRKT, TOOL BOX
5220973
Unavailable
2
RIVET,INTERLOCK,B(50)
7661638
$1.49
2
RIVET,INTERLOCK,B(50)
7661638
$1.49
3
STRIP-WEAR
5510130
Unavailable
4
RIVET,3/16X.402(50)
7621432
$1.49
5
RIVET,SEMI-TUBE,(50)
7661841
$1.49
5
RIVET,SEMI-TUBE,(50)
7661841
$1.49
6
FLAP,SNOW
5432033
Unavailable
7
POP RIVET(50)
7621418
$1.49
8
BUMPER,REAR,STD.
5224674-067
Unavailable
9
NUT-LOCK(10)
7542122
$1.49
10
CAP, BUMPER, BLK.
5430930-070
Unavailable
11
SCREW(10)
7511863
$1.99
12
REFLECTOR RED
2670070
$9.91
13
PANEL,TUNNELBACK
5241053-067
$308.99
14
WASHER(10)
7558301
$1.49
15
BOLT(10)
7512240
$3.99
16
RIVET,SEMI-TUBE,(50)
7661840
Unavailable
17
PAD,LH,RR SUSP(X12),BLK
1012431-067
$19.03
17
PAD,RH,RR SUSP(X12),BLK
1012432-067
$18.23
18
RIVET(50)
7661846
$1.99
19
FOOTREST,LH,X-12,BLK
1012476
Unavailable
19
FOOTREST,RH,X-12,BLK
1012477
Unavailable
20
EXTRUSION,CLUTCHGUARD
5521238
$6.46
21
RIVET-3/16-.090-.290
7661637
$1.49
21
RIVET-3/16-.090-.290
7661637
$1.49
22
TUNNEL ASM,X-12 Substituted by 1012521-067 (Incl. 6, 8, 16-19) & Side Cooling Extrusions)
1012521
Unavailable
