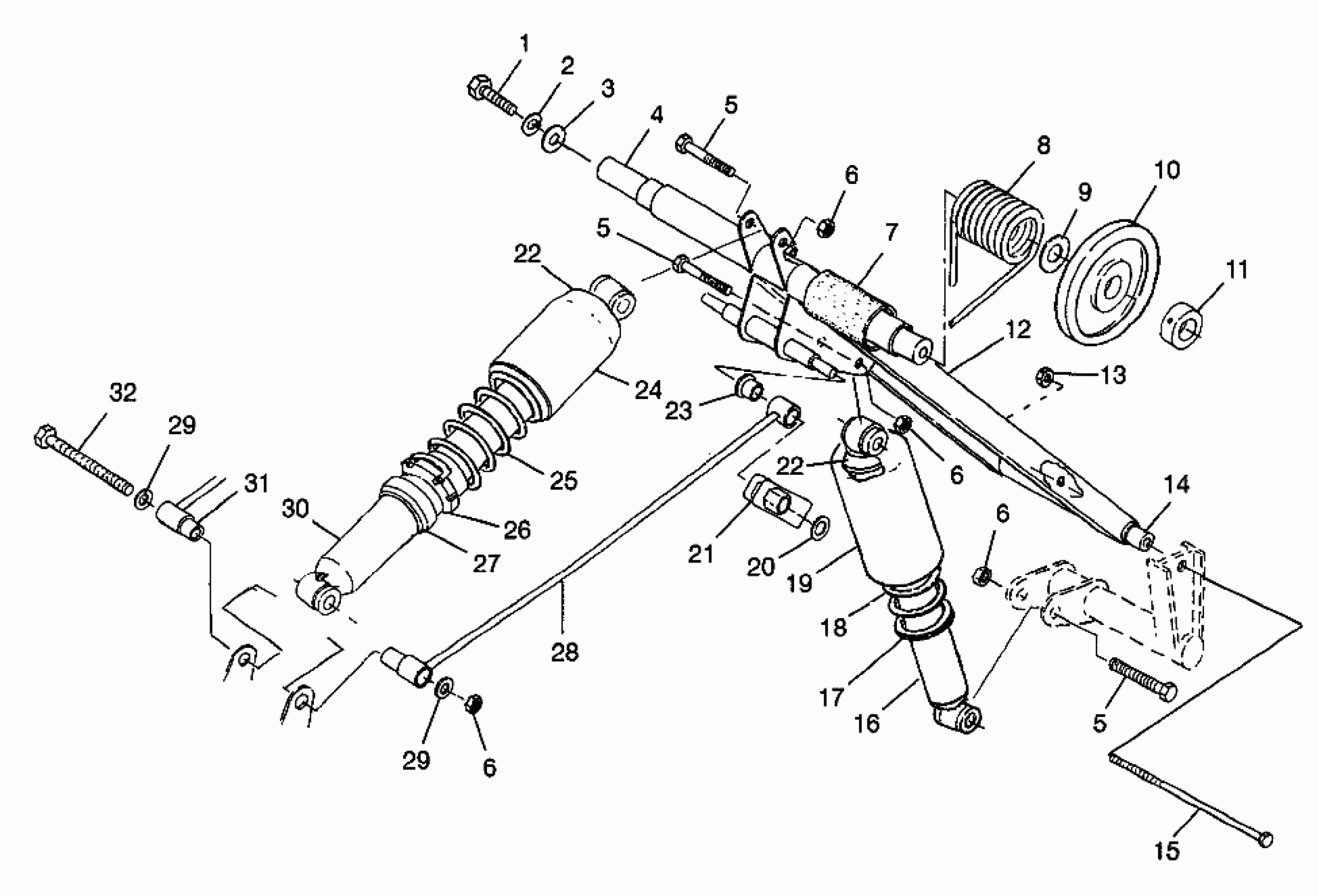

Polaris ULTRA - 0986778 REAR TORQUE ARM - 0986778 (4943554355b011) Diagram
#
1
BOLT(10)
7512589
$1.59
2
WASHER-LOCK, 7/16-B
7552614
$1.59
3
WASHER ,(10)
7555984
$2.39
4
SHAFT,RTA,UPPER
5020814
Unavailable
5
BOLT Substituted by 7515491
7515433
$1.59
5
BOLT Substituted by 7515491
7515433
$1.59
5
BOLT Substituted by 7515491
7515433
$1.59
6
NUT LOCK(10)
7542411
$3.19
6
NUT LOCK(10)
7542411
$3.19
6
NUT LOCK(10)
7542411
$3.19
6
NUT LOCK(10)
7542411
$3.19
7
SLEEVE,TORSION SPRING
5431923
$6.39
8
SPRING,RH,TORSION,BLK. (.406 Dia.) (Std.)
7041395-067
Unavailable
8
SPRING,LH,TORS,.421,BLK. (.421 Dia.) (Firm)(Optional)
7041406-067
$95.19
8
SPRING,RH,TORS,.421,BLK. (.421 Dia.) (Firm)(Optional)
7041407-067
Unavailable
8
SPRING,LH,TORSION,BLK. (.406 Dia.) (Std.)
7041394-067
Unavailable
9
WASHER, THRUST(10) Substituted by 7555871
7555787
Unavailable
10
RET.RING-TRUARC
7718407
$4.79
10
BEARING
3514303
$11.99
10
Wheel, Carrier
1543023
Unavailable
11
COLLAR,BRG LOCK
5010404
Unavailable
11
SCREW-SET(10)
7512257
$3.99
12
ARM,RR TORQUE(XTRA 12),BLK
1541029-067
Unavailable
13
NUT,FLEX LOC(10)
7542507
$3.99
14
Shaft
5020898
Unavailable
15
Screw
7517248
$13.19
16
SHOCK,GAS,R.TRACK
7041440
Unavailable
17
RETAINER,SPRING Substituted by 5245067
5241276-067
Unavailable
18
SPRING,COMP,BLK,
7041364-067
Unavailable
19
SHIELD-SPRING
5430671
$24.27
20
CLIP-PUSH ON
7080394
$2.39
21
ROLLER,SPRING,ADJ.
5431909
$5.75
22
RETAINER,SPRING,SLOTTED,CAST Substituted by 5020618
5630580
Unavailable
22
RETAINER,SPRING,SLOTTED,CAST Substituted by 5020618
5630580
Unavailable
23
BUSHING, NYLON
3573910
Unavailable
24
SHIELD,SPRING
5410874
$20.22
25
SPRING,R.SUSP,BLK,LXC
7041351-067
Unavailable
26
RING,SPRING PRELOAD ADJ.
5431734
$52.60
27
RETAINER,SPRING,BODY,THREADED
1500063
$44.51
28
ROD, SHOCK
1541014-067
$92.99
29
WASHER-.390X.750X.020-WAVE-Y
7555795
$1.49
29
WASHER-.390X.750X.020-WAVE-Y
7555795
$1.49
30
SHOCK,FR.TRACK,ADJ.
7041433
Unavailable
31
Spacer
5333028
$1.59
32
SCREW,(10)
7517378
Unavailable
