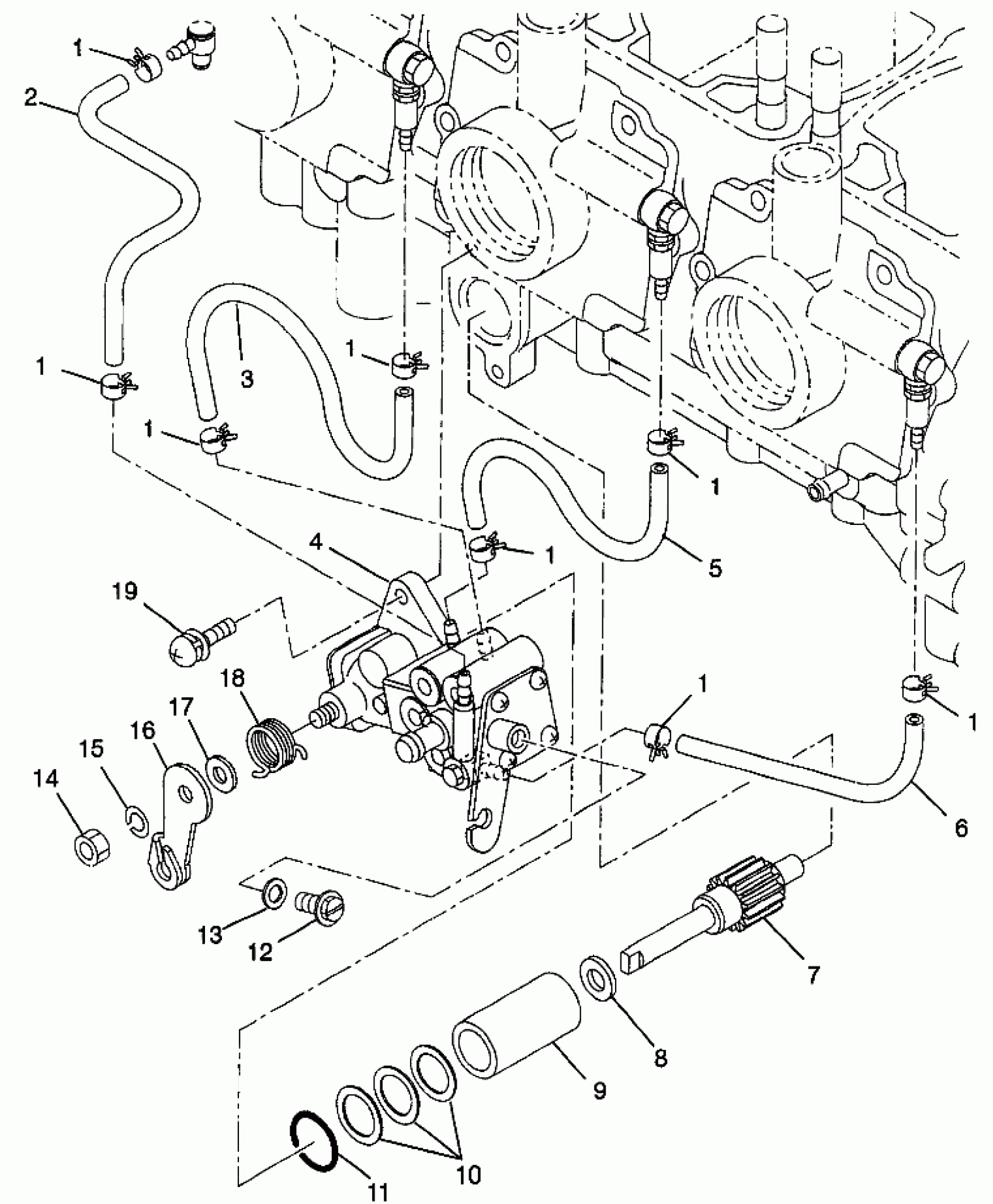

Polaris ULTRA - 0986778 OIL PUMP ULTRA 0986778 (4943554355C013) Diagram
#
Description
Price
1
CLAMP-HOSE,(10)
3083141
$1.49
1
CLAMP-HOSE,(10)
3083141
$1.49
1
CLAMP-HOSE,(10)
3083141
$1.49
1
CLAMP-HOSE,(10)
3083141
$1.49
1
CLAMP-HOSE,(10)
3083141
$1.49
1
CLAMP-HOSE,(10)
3083141
$1.49
1
CLAMP-HOSE,(10)
3083141
$1.49
1
CLAMP-HOSE,(10)
3083141
$1.49
2
PIPE, RUBBER Substituted by 3086776
3084199
Unavailable
3
PIPE#3,VINYL(L=315) Substituted by 3085591
3083488
Unavailable
4
PUMP ASM,OIL (Incl. 11-18)
3085578
Unavailable
5
PIPE,VINYL 1
3085157
$29.99
6
PIPE,RUBBER(8MMX1M.)ACCS
3085172
$36.19
7
GEAR,SMALL,OIL PUMP
3083131
$89.99
8
SPACER
3083130
$1.59
9
BUSHING(OIL PUMP)
3083353
$31.99
10
SPACER #3 (.6mm)
3083673
Unavailable
10
SPACER #2 (.3mm)
3083672
Unavailable
10
SPACER #1 (.15mm)
3083671
Unavailable
11
O RING
3083127
Unavailable
12
SCREW-AIR VENT
3083125
Unavailable
13
PACKING(10)
3083126
$4.03
14
NUT(10)
3083120
$3.19
15
WASHER-SPRING(10)
3083121
$299.99
16
LEVER,CONTROL
3085594
$41.59
17
COLLAR, CAMSHAFT(10)
3083445
$2.39
18
SPRING-RETURN
3083123
Unavailable
19
SCREW&WASHER,(10)
3083783
$2.39
