EXHAUST SYSTEM ULTRA 0986778 (4943554355C004)

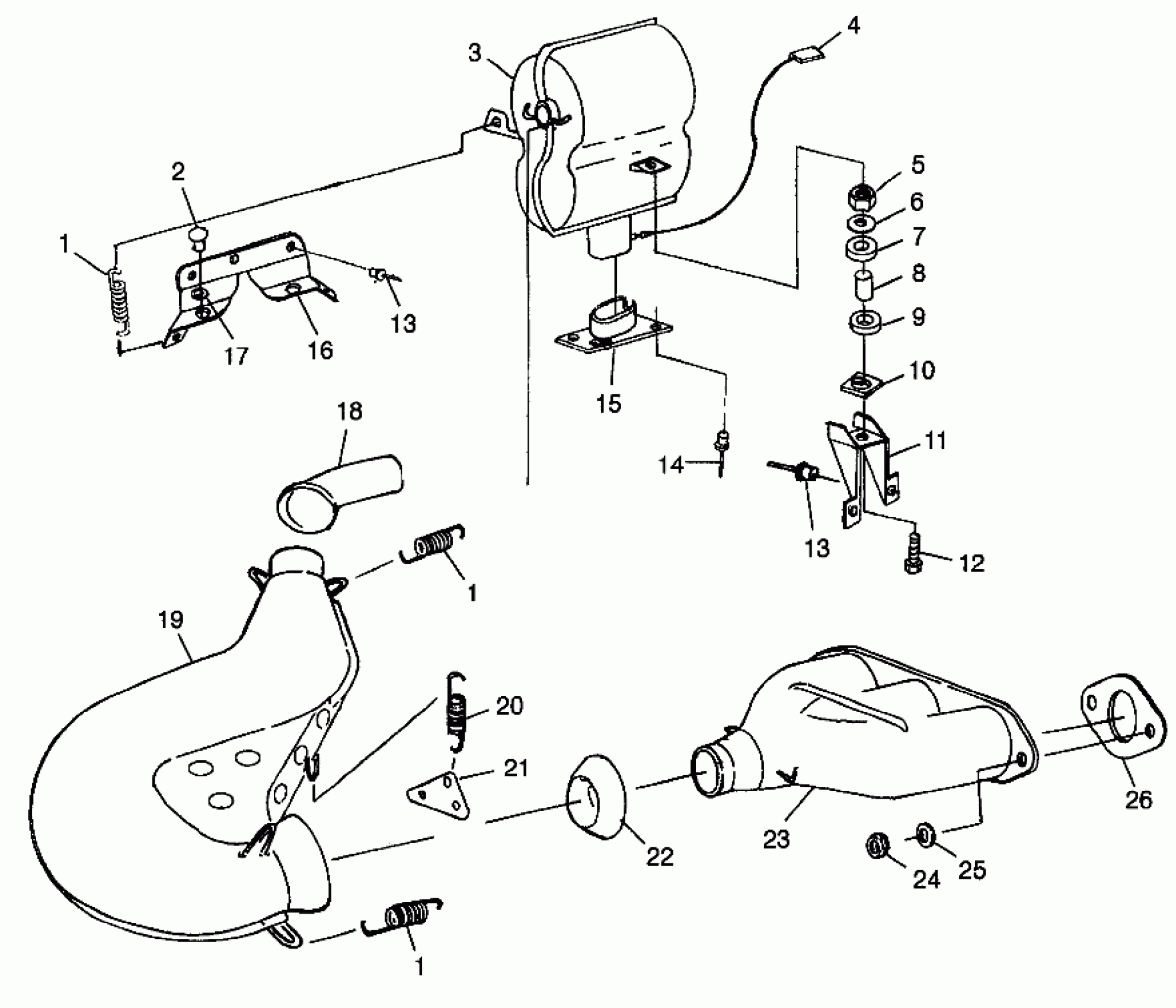

Polaris ULTRA - 0986778 EXHAUST SYSTEM ULTRA 0986778 (4943554355C004) Diagram
#
Description
Price
1
SPRING, EXHAUST(10)
7042031
$5.65
1
SPRING, EXHAUST(10)
7042031
$5.65
1
SPRING, EXHAUST(10)
7042031
$5.65
2
DAMPNER, VIB.
5410467
$8.79
3
RESONATOR
1260695-029
Unavailable
4
PROBE,TEMP.SENSING
4040067
Unavailable
5
NUT, LOCK(10)
7542103
$5.59
6
WASHER(10)
7558221
Unavailable
7
WASHER,RUBBER
5410436
$1.59
8
BUSHING-RES. MT.
5010192
$6.39
9
DAMPENER
5410241
Unavailable
10
SPEED NUT(10)
7670021
$6.99
11
BRKT.WELD
1260744-067
Unavailable
12
BOLT-CARRIAGE(10)
7512262
Unavailable
13
RIVET(50) Substituted by 7661130
7661643
Unavailable
13
RIVET(50) Substituted by 7661130
7661643
Unavailable
14
RIVET, BLIND(50)
7621467
$1.49
15
HAT,EXH.OUTLET, BLK
1260743-029
Unavailable
16
BRKT,BUMP.RESONATOR,BLK.
5241429-067
Unavailable
17
WASHER, THRUST(10)
7555788
Unavailable
18
TUBE,INLET,RESON.BLK
1260786-029
$70.39
19
MUFFLER,BLK Substituted by 2200951
1260810-029
Unavailable
20
SPRING-EXHAUST(10)
7042029
$4.84
21
BRKT-SPRING RETAINER
5211659
Unavailable
22
SEAL,EXH.SOCKET
3610046
$36.41
23
MANIFOLD, 3 CYL.
1260626-029
Unavailable
24
Nut (See Pg. A35, Ref. 19)
-------
Unavailable
25
Washer Spring (See Pg. A35, Ref. 18)
-------
Unavailable
26
Gasket Exhaust (See Pg. A35, Ref. 17)
-------
Unavailable
