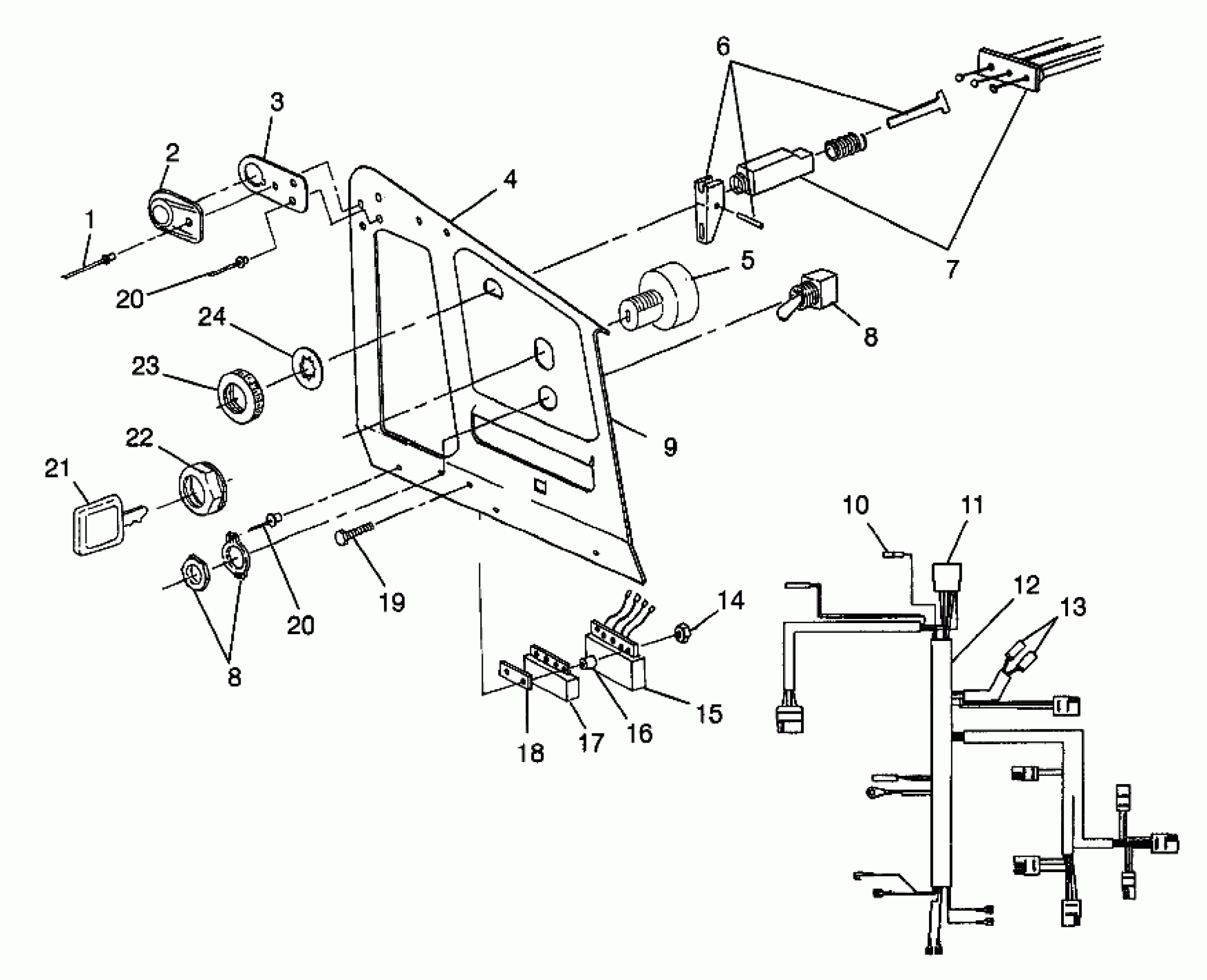

Polaris ULTRA - 0986778 CONSOLE ULTRA 0986778 (4943554355A013) Diagram
#
Description
Price
1
RIVET(50) Substituted by 7661130
7661643
Unavailable
2
GUIDE, RECOIL
5431385
$10.51
3
BRKT,ROPE GUIDE,BLK.
5222682-067
Unavailable
4
CONSOLE
5222756-067
Unavailable
5
KIT,IGN. SWITCH (Incl. 21, 22)
2200357
Unavailable
6
KIT,CHOKE CONTROL (Incl. 23)
2200189
$20.22
7
CABLE, CHOKE
7080283
$109.99
8
SW,GRIP,HEATER-HI/LO
4110113
$70.39
8
SW,GRIP,HEATER-HI/LO
4110113
$70.39
9
DECAL, CONSOLE [No Longer Available]
7073075
Unavailable
10
HOUSING
4020133
Unavailable
11
Housing w/Receptacle
4020057
$3.51
12
HARNESS,MAIN WIRE
2460579
Unavailable
13
Housing
4020153
$1.49
14
NUT(10)
7541925
$1.49
15
SWITCH,EXH.TEMP
4110197
$89.99
16
Spacer
5020864
Unavailable
17
REGULATOR,(14.3VAC),LR-7
4060123
Unavailable
18
SPACER,REGULATOR
5211573
Unavailable
19
SCREW, HX/SEMS
7517263
Unavailable
20
RIVET,INTERLOCK,B(50)
7661638
$1.49
20
RIVET,INTERLOCK,B(50)
7661638
$1.49
21
KEY,IGNITION,W/CAP [Cannot Purchase as Assembly] NOTE: When ordering ignition key PN 5410611 be sure to specify if for an A, B, C, D, or E switch. Letter code will be labeled on underside of switch bo
5410611
Unavailable
22
NUT,IGNITION
7547035
$8.79
23
Nut
7080229
$19.99
24
WASHER-LOCK(10)
7571610
$3.99
