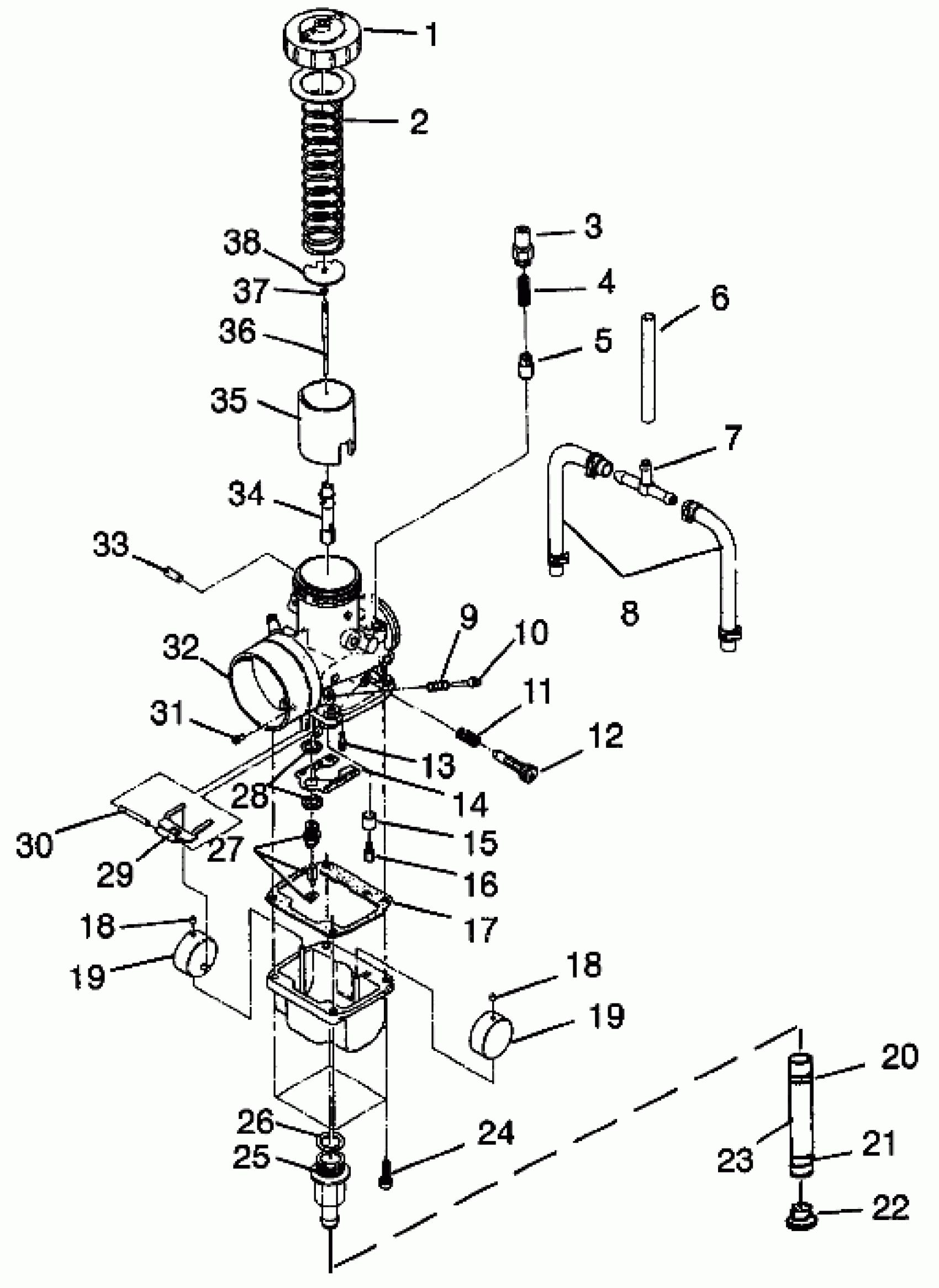

Polaris ULTRA - 0986778 CARBURETOR ULTRA 0986778 (4943554355C011) Diagram
#
Description
Price
1
TOP ASM.
3130644
Unavailable
2
SPRING,THROTTLE
3130444
Unavailable
3
HOLDER,GUIDE
3130199
$28.32
4
SPRING,PLUNGER
3130006
$8.89
5
PLUNGER ASM, STARTER
3130328
$32.37
6
HOSE
3130659
Unavailable
7
NIPPLE
3130611
Unavailable
8
HOSE
3130605
Unavailable
9
SPRING,AIR ADJUST
3130012
$8.89
10
SCREW,AIR
3130011
$19.99
11
SPRING,THROTTLE ADJ.
3130010
$8.89
12
SCREW,THROTTLE STOP
3130009
$19.99
13
JET,PILOT,#40(10) (#40)
3130067
$10.99
14
PLATE
3130243
Unavailable
15
RING,CARB
3130232
Unavailable
16
JET,MAIN,#340 Substituted by 3130137 (#340)
3130626
Unavailable
17
GASKET,FLOAT CHAMBER
3130236
$12.13
18
CAP,(10)
3130237
$4.03
18
CAP,(10)
3130237
$4.03
19
FLOAT ASM
3130021
$40.46
19
FLOAT ASM
3130021
$40.46
20
CLAMP,SPRING,(10)
7080534
$1.59
21
CLAMP,HOSE(10)
7080544
Unavailable
22
PLUG,TRAP
5431893
$12.94
23
FUEL LINE, 5 FT.
8450045-153
$99.99
24
SCREW
3130056
$3.19
25
FITTING,SEDIMENT Substituted by 3130573
5020476
$10.63
26
O RING
3130239
Unavailable
27
VALVE ASM,NEEDLE
3130643
$56.65
28
WASHER(10)
3130047
$4.84
29
ARM,FLOAT
3130048
Unavailable
30
PIN, FLOAT
3130361
$8.89
31
JET,AIR,(PAJ1) (PAJ1)
3130256
Unavailable
32
CARBURETOR ASM,#1 (Incl. 1-19, 24-38)
3130691
Unavailable
32
CARBURETOR ASM,#2 (Incl. 1-19, 24-38)
3130692
Unavailable
33
CAP
3130479
$14.56
34
NEEDLE JET,(P-4) (247)
3130641
Unavailable
35
VALVE,THROTTLE,(2.0) (2.0)
3130664
Unavailable
36
JET NEEDLE
3130645
Unavailable
37
E-RING,(10)
3130508
$6.46
38
PLATE, THROTTLE
3130054
$6.46
