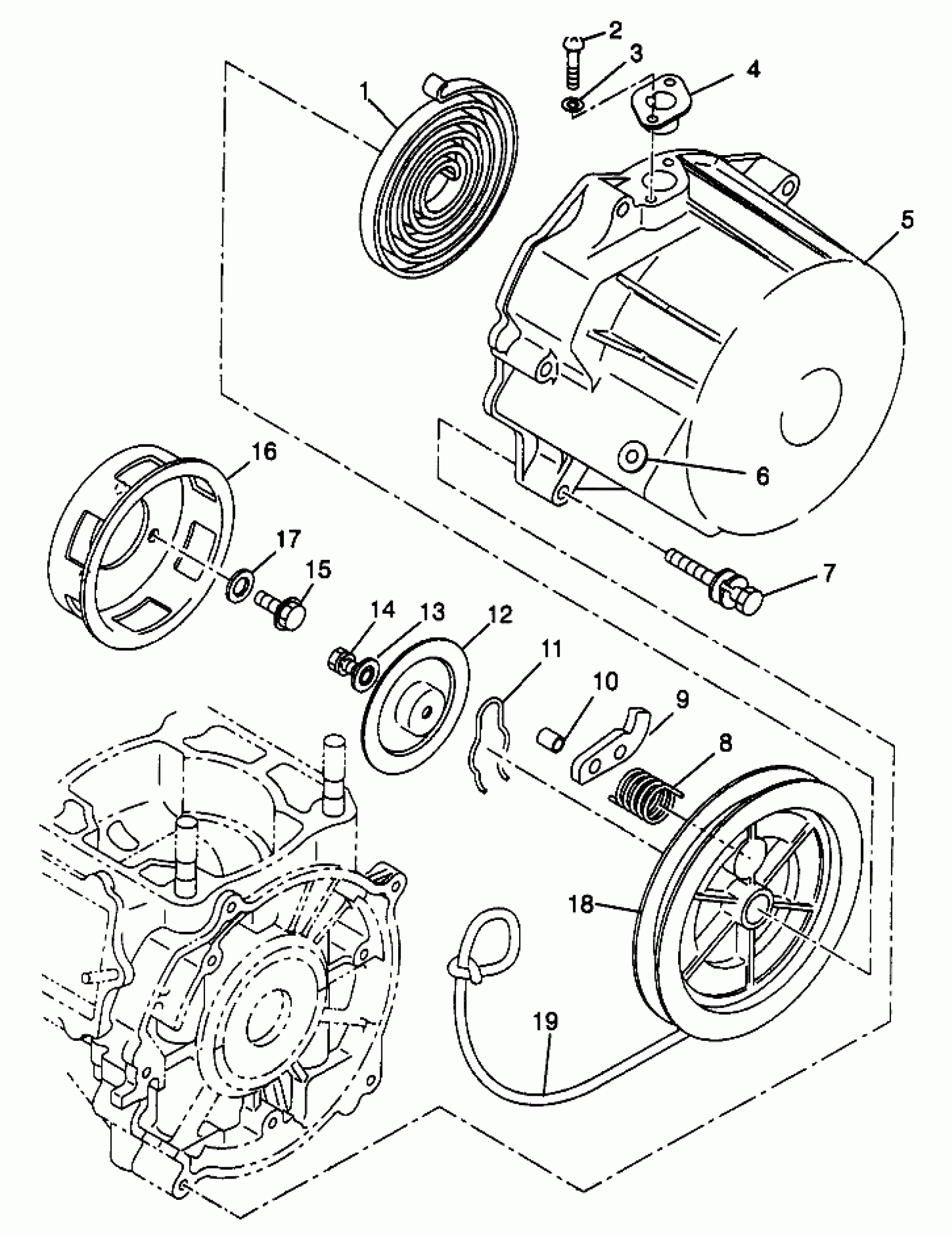

Polaris ULTRA - 0976778 RECOIL STARTER ULTRA 0976778 and EUROPEAN ULTRA E976778 (4938053805D001) Diagram

#

Description
Price

1

Spring, Spiral

3083376

$179.11

2

SCREW,SET

3085139

$1.99

3

WASHER(10)

3085140

$1.49

4

MARK,TIMING

3085138

$11.59

5

STARTER, RECOIL (Incl. 1-6, 8-14, 18, 19)

3085264

$181.59

5

CASE,STARTER

3085265

$180.16

6

GUIDE-ROPE

3083107

Unavailable

7

BOLT

3080109

Unavailable

8

Spring, Return

3083463

$4.03

9

Ratchet

3083378

$20.22

10

BUSH

3084750

$7.19

11

Spring, Friction

3083379

$24.27

12

Plate, Friction

3084744

Unavailable

13

WASHER(10) [No Longer Available]

3085363

Unavailable

14

BOLT&WASHER ASM.

3085266

Unavailable

15

BOLT&WASHER ASM.(10)

3084552

Unavailable

16

PULLEY,STARTING

3085141

Unavailable

17

WASHER

3082520

$1.49

18

Reel

3085137

$80.94

19

ROPE,100 FT,NYL.STARTER

2870621

Unavailable
