REAR TORQUE ARM ULTRA 0976778 and EUROPEAN ULTRA E976778 (4938053805B011)

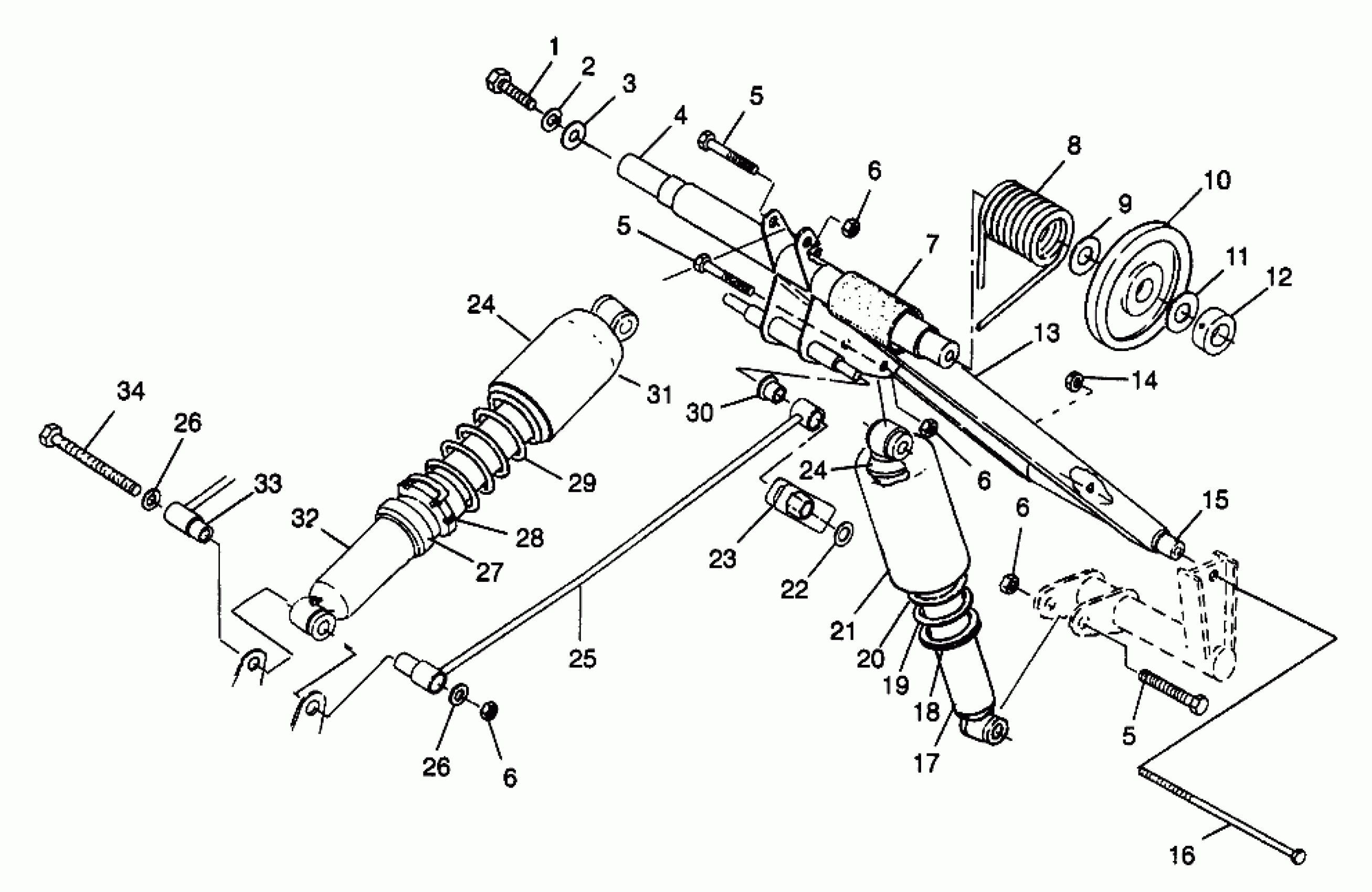

Polaris ULTRA - 0976778 REAR TORQUE ARM ULTRA 0976778 and EUROPEAN ULTRA E976778 (4938053805B011) Diagram
#
1
BOLT(10)
7512589
$1.59
2
WASHER-LOCK, 7/16-B
7552614
$1.59
3
WASHER ,(10)
7555984
$2.39
4
SHAFT,RTA,UPPER
5020814
Unavailable
5
BOLT Substituted by 7515491
7515433
$1.59
5
BOLT Substituted by 7515491
7515433
$1.59
5
BOLT Substituted by 7515491
7515433
$1.59
6
NUT LOCK(10)
7542411
$3.19
6
NUT LOCK(10)
7542411
$3.19
6
NUT LOCK(10)
7542411
$3.19
6
NUT LOCK(10)
7542411
$3.19
7
SLEEVE,TORSION SPRING
5431923
$6.39
8
SPRING,RH,TORSION,BLK. (Std.)
7041395-067
Unavailable
8
SPRING,LH,TORS,.421,BLK. (Firm)(Optional)
7041406-067
$95.19
8
SPRING,RH,TORS,.421,BLK. (Firm)(Optional)
7041407-067
Unavailable
8
SPRING,LH,TORSION,BLK. (Std.)
7041394-067
Unavailable
9
WASHER, THRUST(10) Substituted by 7555871
7555787
Unavailable
10
Wheel, Carrier
1543023
Unavailable
11
WASHER, THRUST(10) Substituted by 7555871
7555862
$5.56
12
SCREW-SET(10)
7512257
$3.99
12
COLLAR-BRG. LOCK
5010155
Unavailable
13
ARM,RR TORQUE(XTRA 12),BLK
1541029-067
Unavailable
14
NUT,FLEX LOC(10)
7542507
$3.99
15
Shaft
5020898
Unavailable
16
Screw
7517248
$13.19
17
SHOCK,GAS,R.TRACK
7041440
Unavailable
18
RETAINER,SPRING Substituted by 5245067
5241276-067
Unavailable
19
RETAINER, SPRING BODY
5020617
Unavailable
20
SPRING,COMP,BLK,
7041364-067
Unavailable
21
SHIELD-SPRING
5430671
$24.27
22
CLIP-PUSH ON
7080394
$2.39
23
ROLLER,SPRING,ADJ.
5431909
$5.75
24
RETAINER,SPRING,SLOTTED,CAST Substituted by 5020618
5630580
Unavailable
24
RETAINER,SPRING,SLOTTED,CAST Substituted by 5020618
5630580
Unavailable
25
ROD, SHOCK
1541014-067
$92.99
26
WASHER-.390X.750X.020-WAVE-Y
7555795
$1.49
26
WASHER-.390X.750X.020-WAVE-Y
7555795
$1.49
27
RETAINER,SPRING,BODY,THREADED
1500063
$44.51
28
RING,SPRING PRELOAD ADJ.
5431734
$52.60
29
SPRING,R.SUSP,BLK,LXC
7041351-067
Unavailable
30
BUSHING, NYLON
3573910
Unavailable
31
SHIELD,SPRING
5410874
$20.22
32
SHOCK,FR.TRACK,ADJ.
7041433
Unavailable
33
Spacer
5333028
$1.59
34
BOLT(10)
7515514
$7.19
