OIL TANK / AIR BOX ULTRA 0976778 and EUROPEAN ULTRA E976778 (4938053805C003)

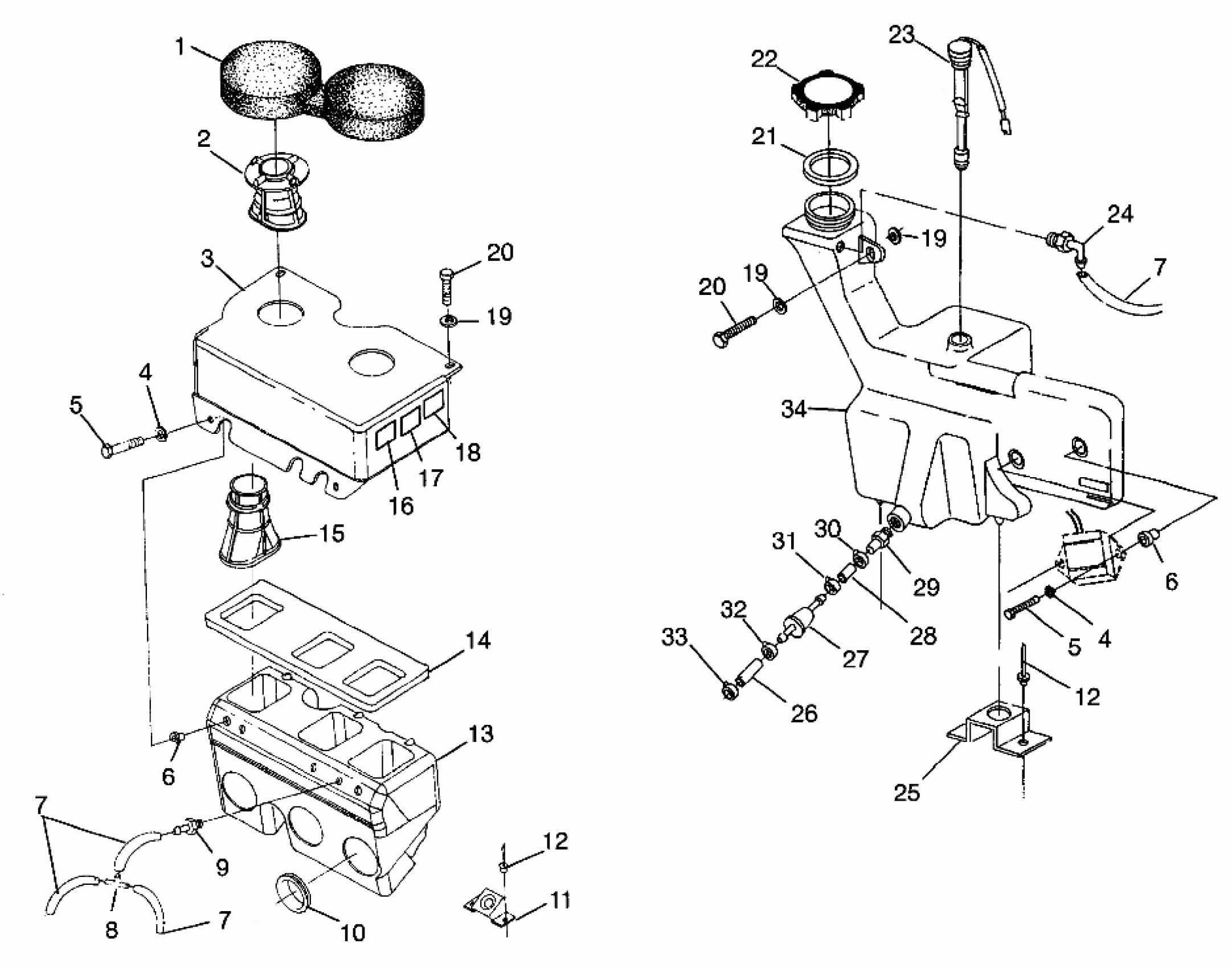

Polaris ULTRA - 0976778 OIL TANK / AIR BOX ULTRA 0976778 and EUROPEAN ULTRA E976778 (4938053805C003) Diagram
#
1
FOAM ASM,INTAKE,W/MESH
1253178
Unavailable
2
BOOT,CONE SILENCER,INLET
5411046
Unavailable
3
PLENUM,SILENCER,(680)
5432539
Unavailable
4
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
4
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
5
SCREW(10)
7512279
$1.49
5
SCREW(10)
7512279
$1.49
6
NUT-WELL(10)
7541923
$5.59
6
NUT-WELL(10)
7541923
$5.59
7
Hose (See Pg., Ref.)
-------
Unavailable
7
Hose (See Pg., Ref.)
-------
Unavailable
7
Hose (See Pg., Ref.)
-------
Unavailable
8
Nipple (See Pg., Ref.)
-------
Unavailable
9
FITTING,HOSE(10)
7052127
$3.19
10
Boot
5410271
Unavailable
11
BRKT.OIL TANK,
5241322
Unavailable
12
RIVET-3/16-.090-.290
7661637
$1.49
12
RIVET-3/16-.090-.290
7661637
$1.49
13
BOTTOM,AIRBOX,INT.VENT(680)
5432127
Unavailable
14
SEAL,PLENUM
5810946
Unavailable
15
BOOT,CONE SILENCER,OUTLET
5411047
Unavailable
16
DECAL,CAUTION,AIRBOX
7075351
Unavailable
17
DECAL,ADJ.DRIVEN CLUTCH
7073820
Unavailable
18
DECAL, GREASING [No Longer Available]
7073426
$7.27
19
WASHER(10)
7555960
$3.99
19
WASHER(10)
7555960
$3.99
19
WASHER(10)
7555960
$3.99
20
BOLT(10)
7512276
$4.79
20
BOLT(10)
7512276
$4.79
21
GASKET-OIL CAP
5810141
$2.39
22
CAP,OIL TANK
5430779
$14.56
23
SENSOR,OIL LEVEL
4110134
$72.84
24
FITTING,90 DEG,1/8,(10)
7052095
$4.79
25
BRKT,OILTANK,COINED
5241330
$2.15
26
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
$84.99
27
FILTER,SMALL,IN-LINE,(10)
2530009
$5.65
28
LINE,OIL,FORMED
5410902
Unavailable
29
FITTING,3/8 OUTLET
7052110
Unavailable
30
HOSE CLAMP, RED (Red)
7080003
$1.49
31
CABLE,THROTTLE,W/OIL
7080554
$64.75
32
CLAMP-HOSE, (LARGE GREEN) (Large Green)
7080307
$1.49
33
CLAMP-HOSE,(10) (Yellow)
7080236
$1.59
34
TANK,OIL,W/SEND.UNITHOLE Substituted by 2201101
5432472
Unavailable
