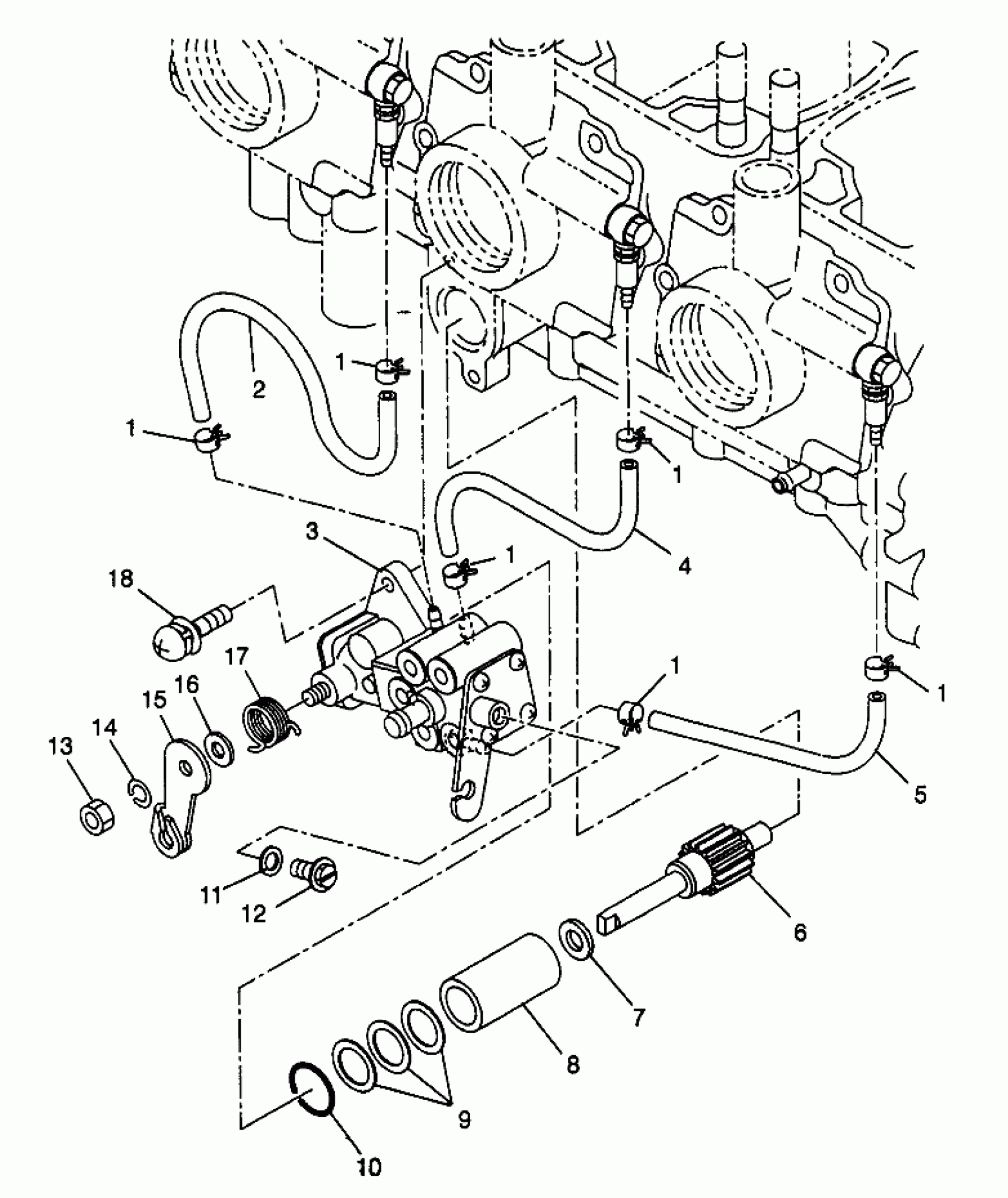

Polaris ULTRA - 0976778 OIL PUMP ULTRA 0976778 and EUROPEAN ULTRA E976778 (4938053805C013) Diagram

#

Description
Price

1

CLAMP-HOSE,(10)

3083141

$1.49

1

CLAMP-HOSE,(10)

3083141

$1.49

1

CLAMP-HOSE,(10)

3083141

$1.49

1

CLAMP-HOSE,(10)

3083141

$1.49

1

CLAMP-HOSE,(10)

3083141

$1.49

1

CLAMP-HOSE,(10)

3083141

$1.49

2

PIPE#3,VINYL(L=315) Substituted by 3085591

3083488

Unavailable

3

PUMP ASM,OIL (Incl. 10-17)

3085468

Unavailable

4

PIPE,VINYL 1

3085157

$29.99

5

PIPE,RUBBER(8MMX1M.)ACCS

3085172

$36.19

6

GEAR,SMALL,OIL PUMP

3083131

$89.99

7

SPACER

3083130

$1.59

8

BUSHING(OIL PUMP)

3083353

$31.99

9

SPACER #3 (.6mm)

3083673

Unavailable

9

SPACER #2 (.3mm)

3083672

Unavailable

9

SPACER #1 (.15mm)

3083671

Unavailable

10

O RING

3083127

Unavailable

11

PACKING(10)

3083126

$4.03

12

SCREW-AIR VENT

3083125

Unavailable

13

NUT(10)

3083120

$3.19

14

WASHER-SPRING(10)

3083121

$299.99

15

LEVER, CONTROL

3085287

$45.59

16

COLLAR, CAMSHAFT(10)

3083445

$2.39

17

SPRING-RETURN

3083123

Unavailable

18

SCREW&WASHER,(10)

3083783

$2.39
