HOOD ULTRA 0976778 and EUROPEAN ULTRA E976778 (4938053805A011)

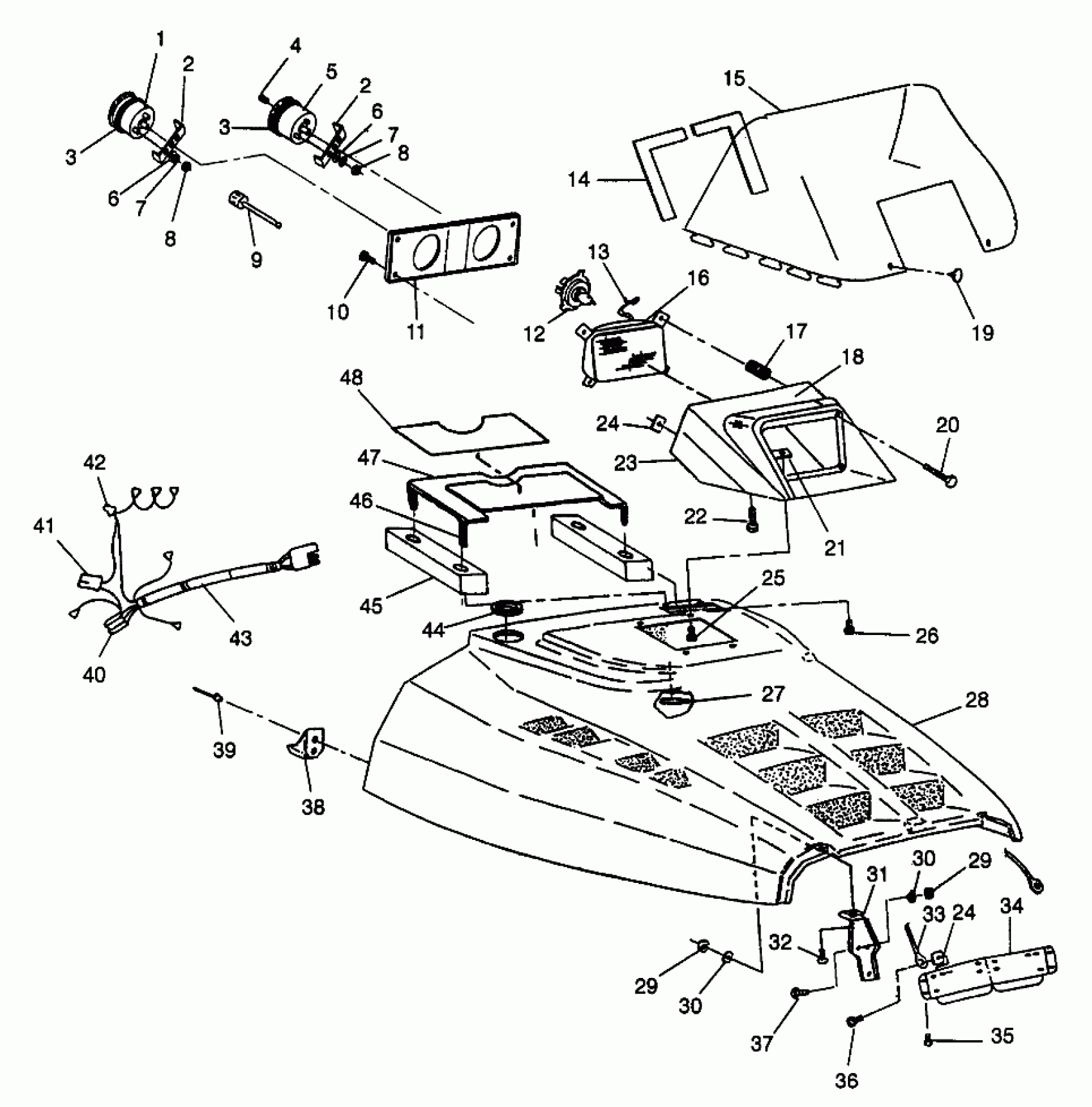

Polaris ULTRA - 0976778 HOOD ULTRA 0976778 and EUROPEAN ULTRA E976778 (4938053805A011) Diagram
#
1
BULB TAILLIGHT(10)
4030015
$4.03
1
TACH ASM,6 PULSE,5 IN. (Incl. 2, 6-8)
3280250
$196.17
2
BRKT,TACH/SPEEDO,5"
3280210
$28.32
2
BRKT,TACH/SPEEDO,5"
3280210
$28.32
3
CUSHION,TACH/SPEEDO,RUBBER
3280209
$3.99
3
CUSHION,TACH/SPEEDO,RUBBER
3280209
$3.99
4
KNOB,TRIP ODOMETER,LH THD.
3280186
$9.70
5
SPEEDO,BACKLIT,190 KPH (Incl. 2-4, 6-8) (190 KPH)(EURO)
3280212
$131.99
5
SPEEDO,BACKLIT,5IN,120MPH (Incl. 2-4, 6-8) (US)
3280254
Unavailable
6
WASHER,FLAT,(10)
3280157
$2.39
6
WASHER,FLAT,(10)
3280157
$2.39
7
WASHER,SPLIT LOCK
3280156
$1.49
7
WASHER,SPLIT LOCK
3280156
$1.49
8
Nut
3280158
Unavailable
8
Nut
3280158
Unavailable
9
CABLE,SPEEDO.
3280094
$60.70
10
SCREW,SCKT.HD.CAP(10)
7512008
Unavailable
11
BEZEL,INST,5IN.GAUGE
5432355
Unavailable
12
BULB,QUARTZ.H/L,INDY
2870448
$24.99
13
RETAINER,H/L BULB
4032063
Unavailable
14
PAD,W/S,LH,BLACK
5810437
Unavailable
14
PAD,W/S,RH,BLACK
5810438
$1.67
15
WINDSHIELD,LOW,BLK.
5431447
Unavailable
16
HEADLIGHT ASM. (Incl. 12, 13)
4032040
Unavailable
17
SPRING-ADJ
4032002
Unavailable
18
HSG,INSTR,TOP,BLK
5432349-070
Unavailable
19
RIVET,PLASTI-LOC.(50)
7621509
$1.49
20
SCREW, ADJ.(10)
4032003
Unavailable
21
NUT, SPEED(10)
7670057
$1.49
22
SCREW(10)
7512009
Unavailable
23
HSG,INST.BOTT.BLK.
5430922-070
Unavailable
24
NUT, SPEED(10)
7670056
Unavailable
24
NUT, SPEED(10)
7670056
Unavailable
25
SCREW, SEMS(10)
7512283
$3.99
26
SCREW(10)
7511877
Unavailable
27
RETAINER,WINDSHIELD,(10)
5410970
$1.49
28
HOOD,FOIL/FOAM(ULTRA BK MT) (Incl. Foam, Foil & Warning Decals)
2631719-177
Unavailable
29
NUT-LOCK(10)
7542122
$1.49
29
NUT-LOCK(10)
7542122
$1.49
30
WASHER,WROUGHT(10)
7558302
$1.59
30
WASHER,WROUGHT(10)
7558302
$1.59
31
HINGE ASM,HD,BLK
2635005-067
$16.67
32
BOLT-CARRIAGE(10)
7512263
$3.99
33
CABLE,HD.RETAINER
7080624
Unavailable
34
PLATE,RE-INF.,(HD.)
5222105
$49.51
35
SCREW(10)
7511861
Unavailable
36
SCREW(10)
7511989
Unavailable
37
BOLT(10)
7512193
$2.39
38
CUP, HOOD LATCH,(10)
5430733
$4.84
39
RIVET(50)
7621334
$1.49
40
Housing
4020115
$1.59
41
HOUSING
4020114
Unavailable
42
HOUSING
4020052
Unavailable
43
HARNESS,HEADLIGHT
2460576
Unavailable
44
SHIELD,INLET,RUBBER
5410835
Unavailable
45
SEAL,INTAKE
5811056
Unavailable
46
STAND-OFF,EXTENSION
5431685
Unavailable
47
PANEL ASM,INTAKE,BLK.MET. (Incl. 48)
2620095-177
Unavailable
48
DECAL,WARN."PK.BRAKE"
7075457
Unavailable
