ENGINE MOUNTING ULTRA 0976778 and EUROPEAN ULTRA E976778 (4938053805C002)

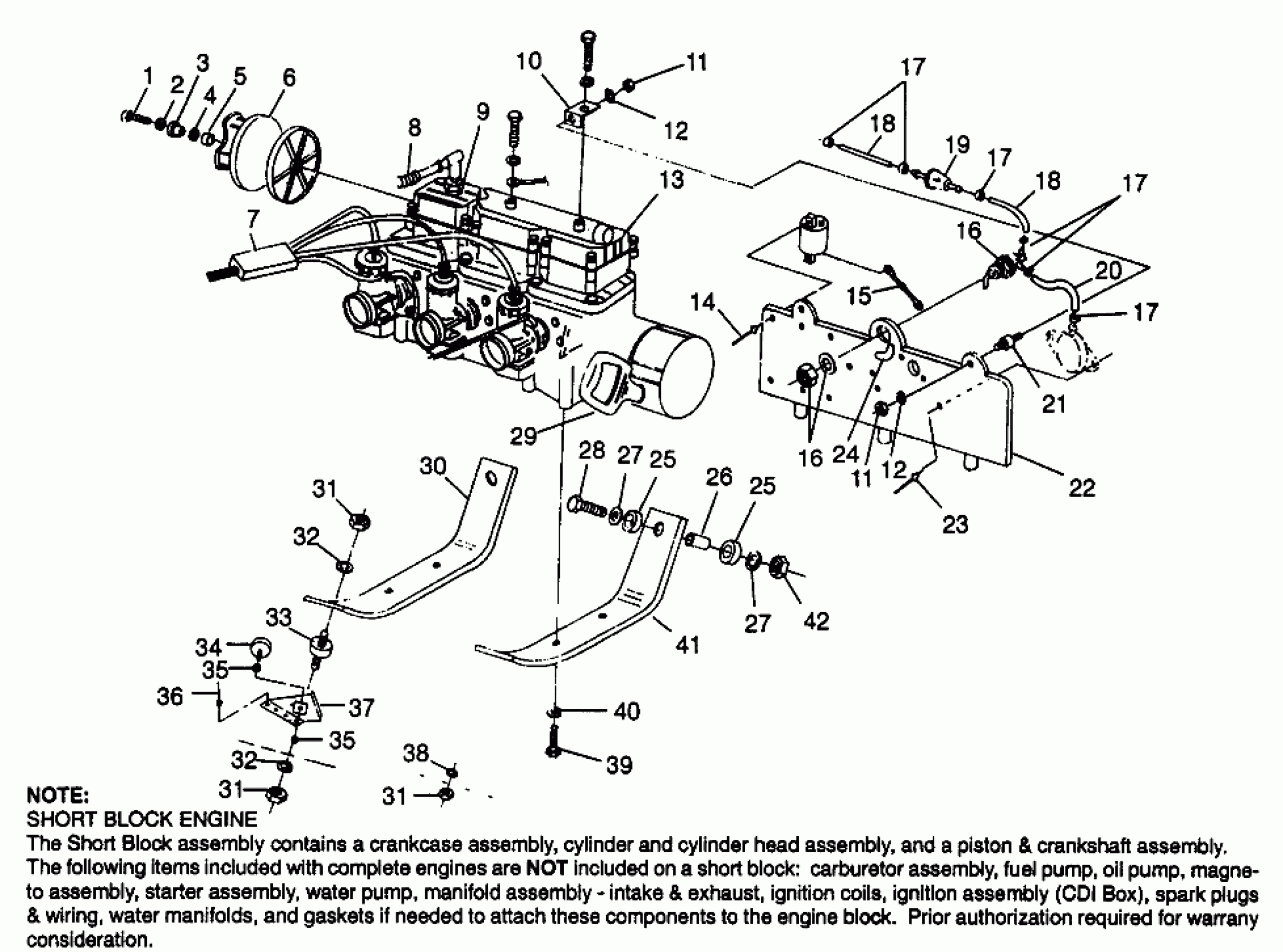

Polaris ULTRA - 0976778 ENGINE MOUNTING ULTRA 0976778 and EUROPEAN ULTRA E976778 (4938053805C002) Diagram
#
1
SCREW
7512595
Unavailable
2
WASHER-7/16-INT LK-(1222)-Z
7575202
$4.79
3
WASHER,CLUTCH RETAIN.
5010287
$12.99
4
O RING,(10)
5410507
$1.49
5
SPACER,CLUTCH BOLT
5020513
$44.99
6
Asm., Drive Clutch Basic 74 (See Pg. A27, Ref. 18)
-------
Unavailable
7
CABLE-THROTTLE W/OIL
7080597
Unavailable
8
TUBING,CONVOLUTED
5521147
Unavailable
9
SPARKPLUG(8)
3070165
$3.99
10
BRKT,HDWE MT.,BLK.
5241179-067
Unavailable
11
NUT HEX(10)
7542105
$3.99
11
NUT HEX(10)
7542105
$3.99
12
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
12
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
13
ENG.(S.B.)EC68PL-01 [No Longer Available]
3085195
Unavailable
14
RIVET(50)
7621233
Unavailable
15
STRAP,GND,(IGN.COIL)
5211663
$3.51
16
VALVE,FUEL SHUTOFF
7051016
Unavailable
16
VALVE,FUEL SHUTOFF
7051016
Unavailable
17
CLAMP,SPRING,(10)
7080534
$1.59
17
CLAMP,SPRING,(10)
7080534
$1.59
17
CLAMP,SPRING,(10)
7080534
$1.59
17
CLAMP,SPRING,(10)
7080534
$1.59
18
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
18
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
19
FILTER FUEL,(10)
2530008
$4.84
20
FUEL LINE, 5 FT. Substituted by 8450044-153
8450044-156
Unavailable
21
MOUNT,CARB.
3110050
$12.99
22
MOUNT,ENG.HARDWARE
5432094
$21.43
23
RIVET(50)
7621234
Unavailable
24
DECAL,FUEL SHUT-OFF
7073869
Unavailable
25
MOUNT, ENGINE
5410390
Unavailable
25
MOUNT, ENGINE
5410390
Unavailable
26
SPACER, (MTR.MT.)
5332778
Unavailable
27
WASHER(10)
7555740
$1.59
27
WASHER(10)
7555740
$1.59
28
SCREW(10)
7512530
$5.59
29
HANDLE,RECOIL Substituted by 5431499-070
5431499
Unavailable
30
PLATE,LH,ENGINE
5241989
Unavailable
31
NUT,FLEXLOCK,(10)
7547008
$6.39
31
NUT,FLEXLOCK,(10)
7547008
$6.39
31
NUT,FLEXLOCK,(10)
7547008
$6.39
32
WASHER(10) Substituted by 7555806
7555720
$0.79
32
WASHER(10) Substituted by 7555806
7555720
$0.79
33
MOUNT,ENGINE
3110062
Unavailable
34
STOP,TORQUE,COARSE
3110056
Unavailable
35
NUT,HEX(10)
7542414
$4.79
35
NUT,HEX(10)
7542414
$4.79
36
RIVET-3/16-.090-.290
7661637
$1.49
37
LIMITER,TORQUE
1012277-067
Unavailable
38
WASHER,FLAT(10)
7555915
$3.19
39
BOLT(10)
7512575
Unavailable
40
WASHER LOCK(10)
7553101
$3.99
41
PLATE,RH,ENGINE
5241990
Unavailable
42
NUT,FLANGE(10)
7542522
$5.59
