CONSOLE ULTRA 0976778 and EUROPEAN ULTRA E976778 (4938053805A013)

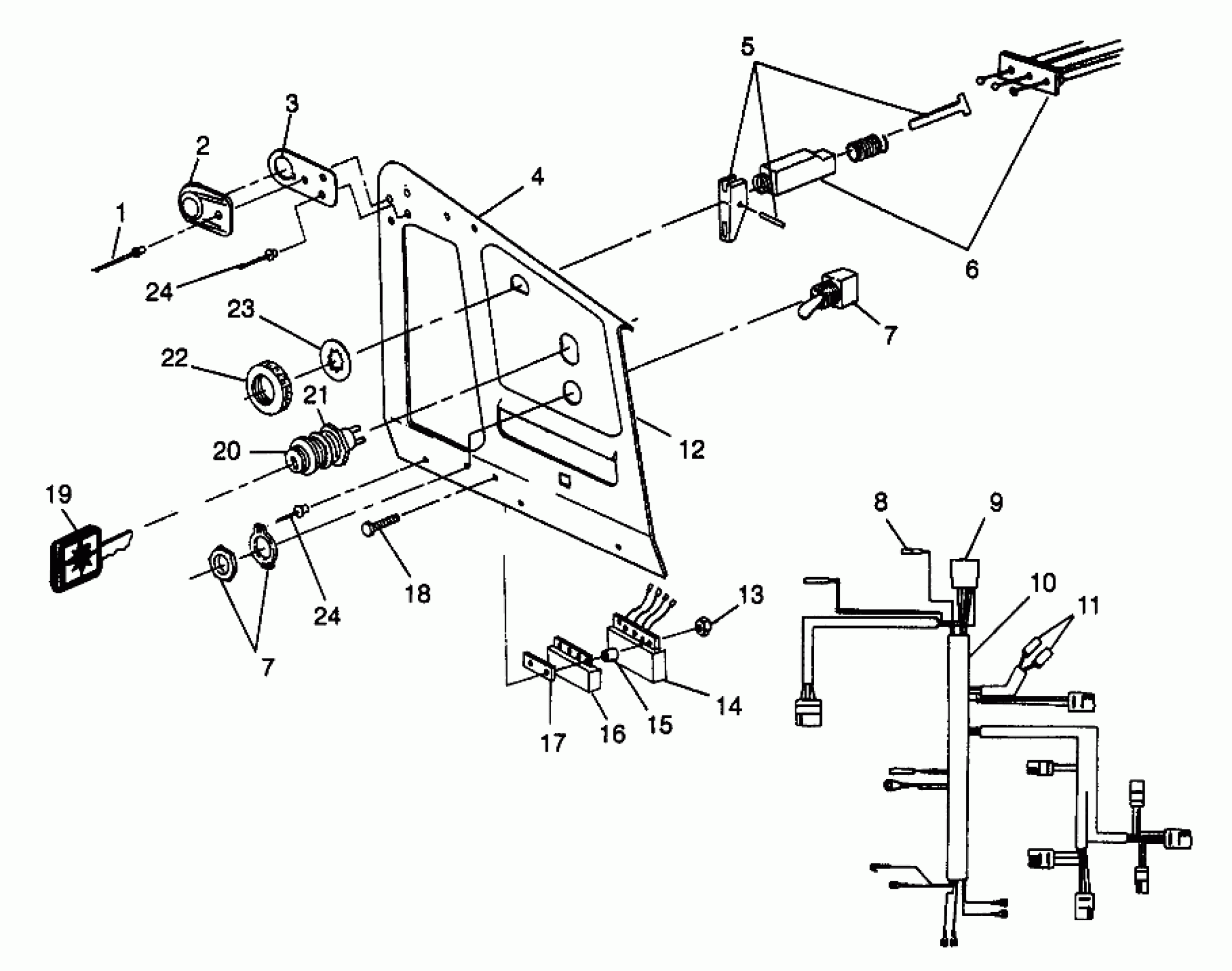

Polaris ULTRA - 0976778 CONSOLE ULTRA 0976778 and EUROPEAN ULTRA E976778 (4938053805A013) Diagram
#
Description
Price
1
RIVET(50) Substituted by 7661130
7661643
Unavailable
2
GUIDE, RECOIL
5431385
$10.51
3
BRKT,ROPE GUIDE,BLK.
5222682-067
Unavailable
4
CONSOLE
5222756-067
Unavailable
5
KIT,CHOKE CONTROL (Incl. 22)
2200189
$20.22
6
CABLE, CHOKE
7080283
$109.99
7
SW,GRIP,HEATER-HI/LO
4110113
$70.39
7
SW,GRIP,HEATER-HI/LO
4110113
$70.39
8
HOUSING
4020133
Unavailable
9
Housing w/Receptacle
4020057
$3.51
10
HARNESS,MAIN WIRE (US)
2460579
Unavailable
10
HARNESS,MAIN WIRE(EURO) (Euro)
2460580
$95.24
11
Housing
4020153
$1.49
12
DECAL, CONSOLE [No Longer Available]
7073075
Unavailable
13
NUT(10)
7541925
$1.49
14
SWITCH,EXH.TEMP
4110197
$89.99
15
Spacer
5020864
Unavailable
16
REGULATOR,(14.3VAC),LR-7
4060123
Unavailable
17
SPACER,REGULATOR
5211573
Unavailable
18
SCREW, HX/SEMS
7517263
Unavailable
19
KEY,IGNITION,W/CAP [Cannot Purchase as Assembly] NOTE: When ordering ignition key PN 5410611 be sure to specify if for an A, B, C, D, or E switch. Letter code will be labeled on underside of switch bo
5410611
Unavailable
20
KIT,IGN. SWITCH (Incl. 19, 21)
2200357
Unavailable
21
NUT, IGN.SWITCH(10)
7543101
Unavailable
22
Nut
7080229
$19.99
23
WASHER-LOCK(10)
7571610
$3.99
24
RIVET,INTERLOCK,B(50)
7661638
$1.49
24
RIVET,INTERLOCK,B(50)
7661638
$1.49
