CARBURETOR ULTRA 0976778 and EUROPEAN ULTRA E976778 (4938053805C011)

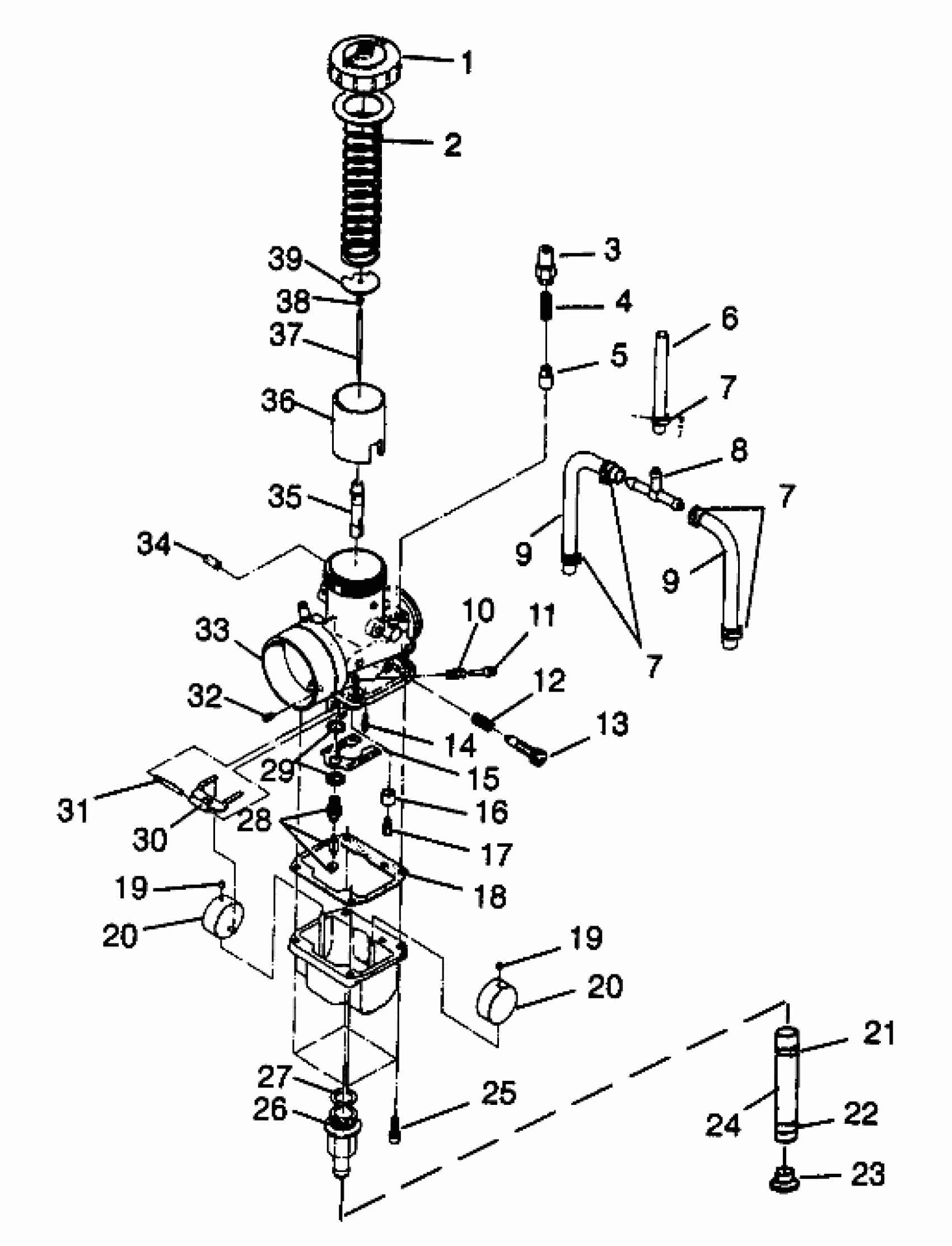

Polaris ULTRA - 0976778 CARBURETOR ULTRA 0976778 and EUROPEAN ULTRA E976778 (4938053805C011) Diagram
#
1
TOP ASM.
3130644
Unavailable
2
SPRING,THROTTLE
3130444
Unavailable
3
HOLDER,GUIDE
3130199
$28.32
4
SPRING,PLUNGER
3130006
$8.89
5
PLUNGER ASM, STARTER
3130328
$32.37
6
HOSE
3130659
Unavailable
7
CLIP
3130613
Unavailable
7
CLIP
3130613
Unavailable
7
CLIP
3130613
Unavailable
8
NIPPLE
3130611
Unavailable
9
HOSE
3130605
Unavailable
9
HOSE
3130605
Unavailable
10
SPRING,AIR ADJUST
3130012
$8.89
11
SCREW,AIR
3130011
$19.99
12
SPRING,THROTTLE ADJ.
3130010
$8.89
13
SCREW,THROTTLE STOP
3130009
$19.99
14
JET,PILOT,#40(10) (#40)
3130067
$10.99
15
PLATE
3130243
Unavailable
16
RING,CARB
3130232
Unavailable
17
JET,MAIN,HX.HD#350(10) (#350)
3130138
$7.27
18
GASKET,FLOAT CHAMBER
3130236
$12.13
19
CAP,(10)
3130237
$4.03
19
CAP,(10)
3130237
$4.03
20
FLOAT ASM
3130021
$40.46
20
FLOAT ASM
3130021
$40.46
21
CLAMP,SPRING,(10)
7080534
$1.59
22
CLAMP,HOSE(10)
7080544
Unavailable
23
PLUG,TRAP
5431893
$12.94
24
FUEL LINE, 5 FT.
8450045-153
$99.99
25
SCREW
3130056
$3.19
26
NIPPLE
3130573
$32.37
27
O RING
3130239
Unavailable
28
VALVE ASM,NEEDLE
3130643
$56.65
29
WASHER(10)
3130047
$4.84
30
ARM,FLOAT
3130048
Unavailable
31
PIN, FLOAT
3130361
$8.89
32
JET,AIR,(PAJ1) (PAJ1)
3130256
Unavailable
33
CARBURETOR ASM,#1 (Incl. 1-20, 25-39)
3130691
Unavailable
33
CARBURETOR ASM,#2 (Incl. 1-20, 25-39)
3130692
Unavailable
34
CAP
3130479
$14.56
35
NEEDLE JET,(P-4) (247)
3130641
Unavailable
36
VALVE,THROTTLE,(2.0) (2.5)
3130664
Unavailable
37
JET NEEDLE
3130645
Unavailable
38
E-RING,(10)
3130508
$6.46
39
PLATE, THROTTLE
3130054
$6.46
