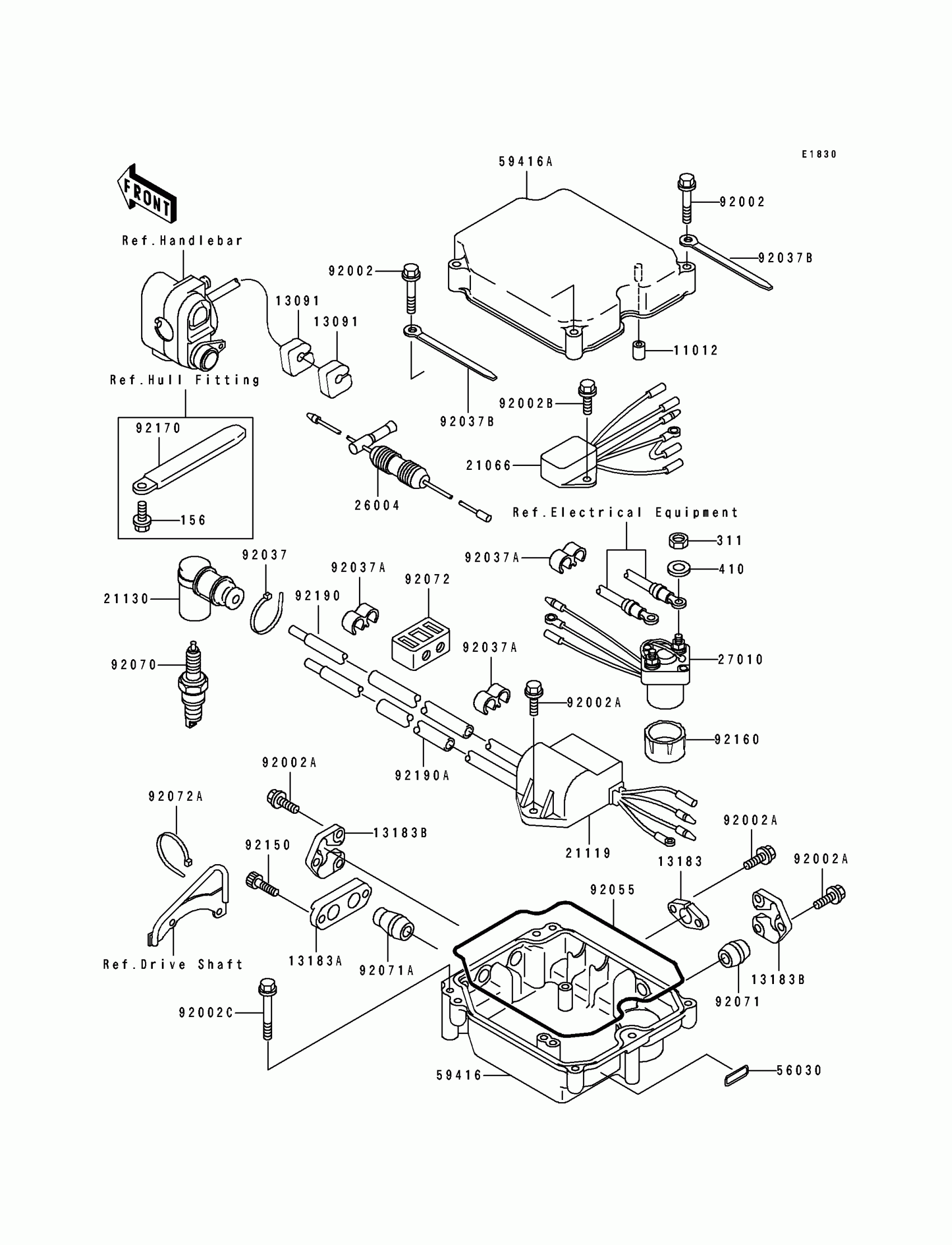

Kawasaki TS Ignition System(JF650-B3/B4/B5/B6) Diagram

#

Description
Price

11012

CAP

11012-3734

Unavailable

13091

HOLDER

13091-3712

$4.65

13183

PLATE

13183-3712

Unavailable

13183A

PLATE,ELECTRIC BASE

13183-3767

Unavailable

13183B

PLATE,ELECTRIC CASE

13183-3768

Unavailable

21066

REGULATOR-VOLTAGE

21066-3708

Unavailable

21119

IGNITER

21119-3721

$656.43

21130

CAP-SPARK PLUG

21130-3706

$52.27

26004

FUSE-ASSY

26004-3711

$55.72

27010

SWITCH,STARTER RELAY

27010-3714

$157.32

56030

LABEL,FUSE

56030-3792

$5.60

59416

CASE-ELECTRIC

59416-3723

Unavailable

59416A

CASE-ELECTRIC

59416-3724

$79.11

92002

BOLT,6X35

92002-3715

$6.61

92002A

BOLT,6X20

92002-3755

$4.69

92002B

BOLT,6X12

92002-3763

$4.69

92002C

BOLT,6X55

92002-3772

Unavailable

92037

CLAMP

92037-1173

$3.49

92037A

CLAMP,HOSE

92037-1603

$5.00

92037B

CLAMP,L=100

92037-3736

$5.52

92055

RING-O,ELECTRIC CASE

92055-3715

$28.69

92070

PLUG-SPARK,BR7ES(NGK)

92070-3701

Unavailable

92071

GROMMET,ELECTRIC CASE

92071-3765

$3.99

92071A

GROMMET,HIGH TENSION CODE

92071-3778

$4.46

92072

BAND

92072-3754

Unavailable

92072A

BAND,L=201

92072-3778

$1.84

92150

BOLT,SOCKET,6X18

92150-3775

$4.69

92160

DAMPER

92160-3729

Unavailable

92170

CLAMP

92170-3705

$8.09

92190

TUBE,HIGH TENSION,L=330

92190-3707

$12.07

92190A

TUBE,HIGH TENSION,L=210

92190-3708

$12.07

156

BOLT-WP,6X12

156R0612

$3.90

311

NUT-HEX,6MM

311R0600

$0.70

410

WASHER-PLAIN-SMALL,6MM

410S0600

$0.78
