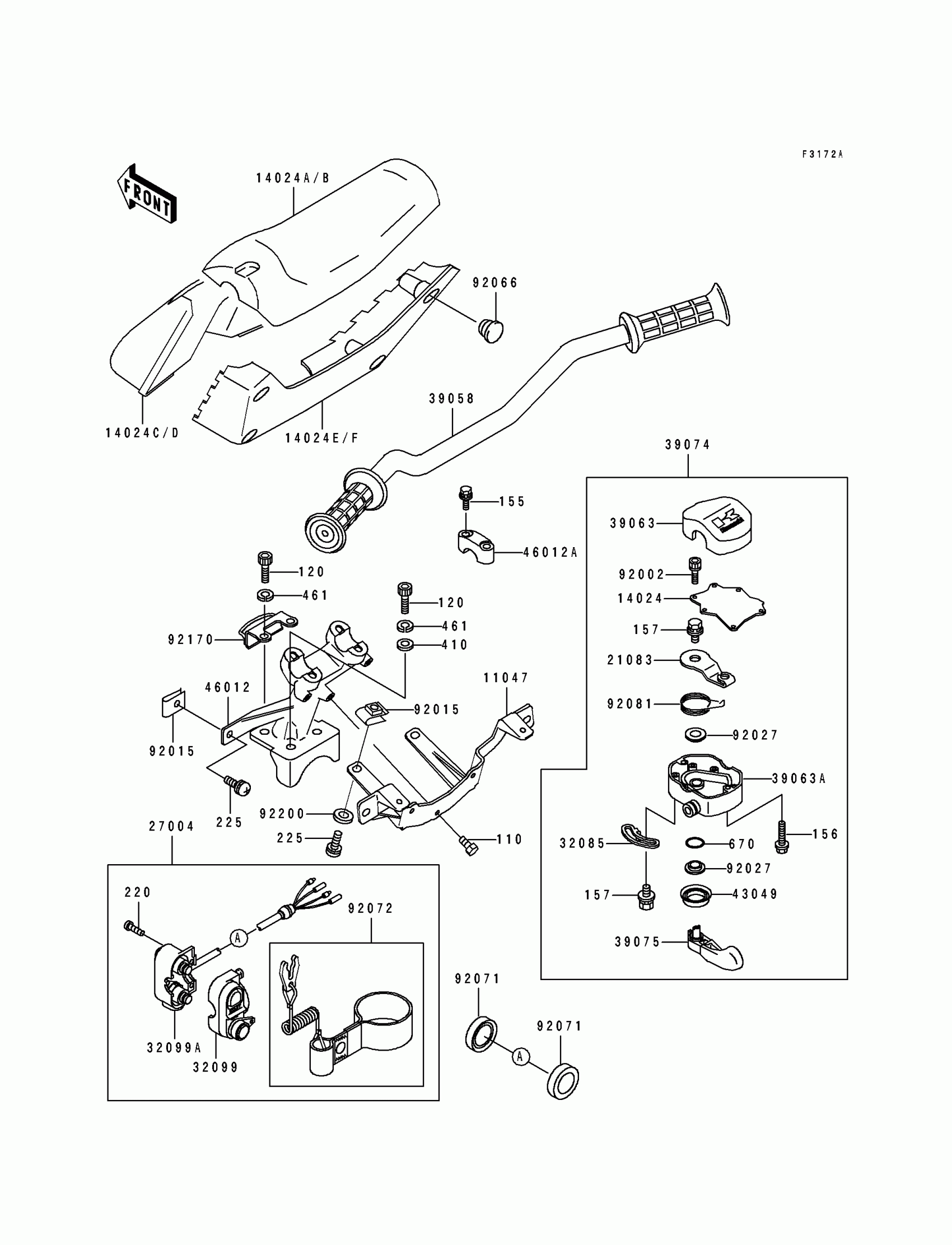

Kawasaki TS Handlebar(JF650-B5/B6) Diagram
#
11047
BRACKET,HANDLE COVER
11047-3713
Unavailable
14024
COVER,THROTTLE LEVER
14024-3701
Unavailable
14024B
COVER,HANDLE,UPP,P.T.GREEN
14024-3775-TZ
Unavailable
14024D
COVER,HANDLE,FR,P.T.GREEN
14024-3776-TZ
Unavailable
14024F
COVER,HANDLE,RR,P.T.GREEN
14024-3808-TZ
Unavailable
21083
ARM,THROTTLE LEVER
21083-3701
$15.65
27004
SWITCH-ASSY,STOP&START
27004-3722
$364.12
32085
STOPPER
32085-3709
Unavailable
32099
CASE,FR,SWITCH
32099-3762
Unavailable
32099A
CASE,RR,SWITCH
32099-3768
Unavailable
39058
HANDLE-COMP
39058-3705
$240.59
39063
HOUSING-CONTROL,UPP
39063-3713
Unavailable
39063A
HOUSING-CONTROL,LWR
39063-3714
$75.52
39074
LEVER-ASSY-THROTTLE
39074-3714
$229.21
39075
LEVER-THROTTLE
39075-3708
$67.20
43049
PACKING,THROTTLE LEVER
43049-3701
$7.69
46012
HOLDER-HANDLE,LWR
46012-3718
Unavailable
46012A
HOLDER-HANDLE,UPP
46012-3720
$16.69
92002
BOLT,SOCKET,3X10
92002-3751
$5.46
92015
NUT,5MM
92015-3799
$11.34
92027
COLLAR,THROTTLE LEVER
92027-3704
Unavailable
92066
PLUG
92066-3730
Unavailable
92071
GROMMET
92071-3771
Unavailable
92072
BAND,TETHER SWITCH
92072-3767
$59.26
92081
SPRING,THROTTLE LEVER RETURN
92081-3702
$6.52
92170
CLAMP,HARNESS&CABLE
92170-3727
Unavailable
92200
WASHER,6.5X16X1.0
92200-3712
$3.73
110
BOLT 6X12
110R0612
$1.75
120
BOLT-SOCKET,8X25
120R0825
$8.72
155
BOLT-WSP-SMALL,8X35
155R0835
$8.19
156
BOLT-WP,5X25
156R0525
$5.22
157
BOLT-WSP,5X12
157R0512
$2.78
220
SCREW-PAN-CROS,5X30
220R0530
$4.87
225
SCREW-PAN-WSP-CROS,5X25
225R0525
$2.82
410
WASHER-PLAIN-SMALL,8MM
410S0800
$2.58
461
WASHER SPRING 8MM
461S0800
$0.65
670
O RING,8MM
670B1508
$1.29
