Description

Price

11046

BRACKET

11046-3795

Unavailable

16087

VALVE-CHECK,FUEL PUMP

16087-3701

Unavailable

16142

COVER-PUMP,FUEL

16142-3702

$70.89

43028

DIAPHRAGM,PULSE

43028-3702

Unavailable

43028A

DIAPHRAGM,FUEL

43028-3703

Unavailable

43049

PACKING,PULSE CASE

43049-3705

Unavailable

43049A

PACKING,FUEL COVER

43049-3706

Unavailable

49040

PUMP-FUEL

49040-3706

$120.86

59336

CASE-PUMP,PULSE

59336-3704

$96.93

59336A

CASE-PUMP,BODY

59336-3707

Unavailable

92002

BOLT,6X25

92002-3714

$5.00

92002A

BOLT,6X40

92002-3716

$5.52

92009

SCREW,3X6

92009-3707

$2.22

92009A

SCREW,5X28

92009-3767

$5.75

92015

NUT,3MM

92015-3731

Unavailable

92037

CLAMP,11MM

92037-3723

$3.49

92143

COLLAR,6X8.5X13

92143-3715

Unavailable

92160

DAMPER

92160-3733

Unavailable

92190

TUBE

92059-3857

Unavailable

92190A

TUBE

92059-3876

Unavailable

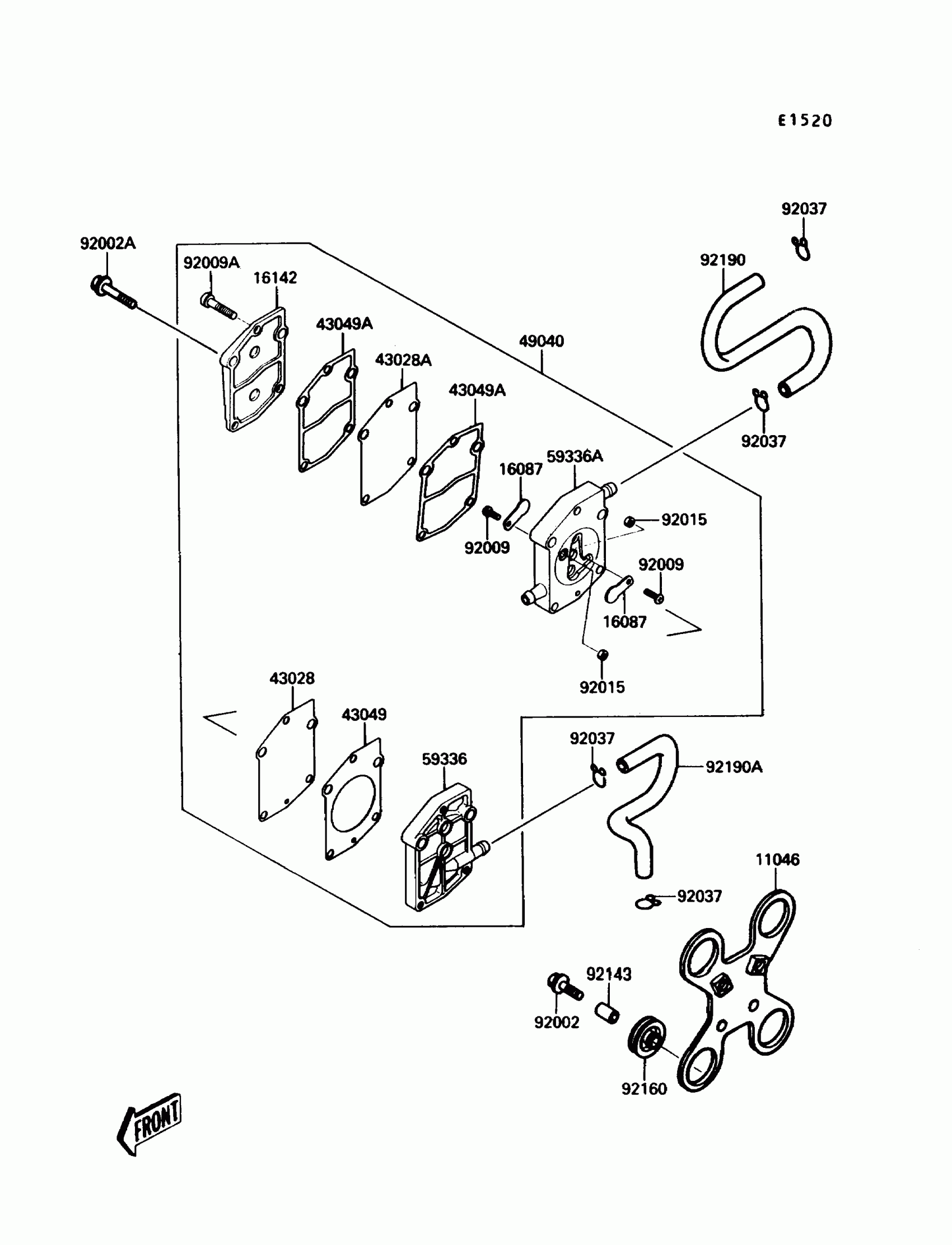

Kawasaki TS Fuel Pump Diagram

BRACKET

VALVE-CHECK,FUEL PUMP

COVER-PUMP,FUEL

DIAPHRAGM,PULSE

DIAPHRAGM,FUEL

PACKING,PULSE CASE

PACKING,FUEL COVER

PUMP-FUEL

CASE-PUMP,PULSE

CASE-PUMP,BODY

BOLT,6X25

BOLT,6X40

SCREW,3X6

SCREW,5X28

NUT,3MM

CLAMP,11MM

COLLAR,6X8.5X13

DAMPER

TUBE

TUBE
