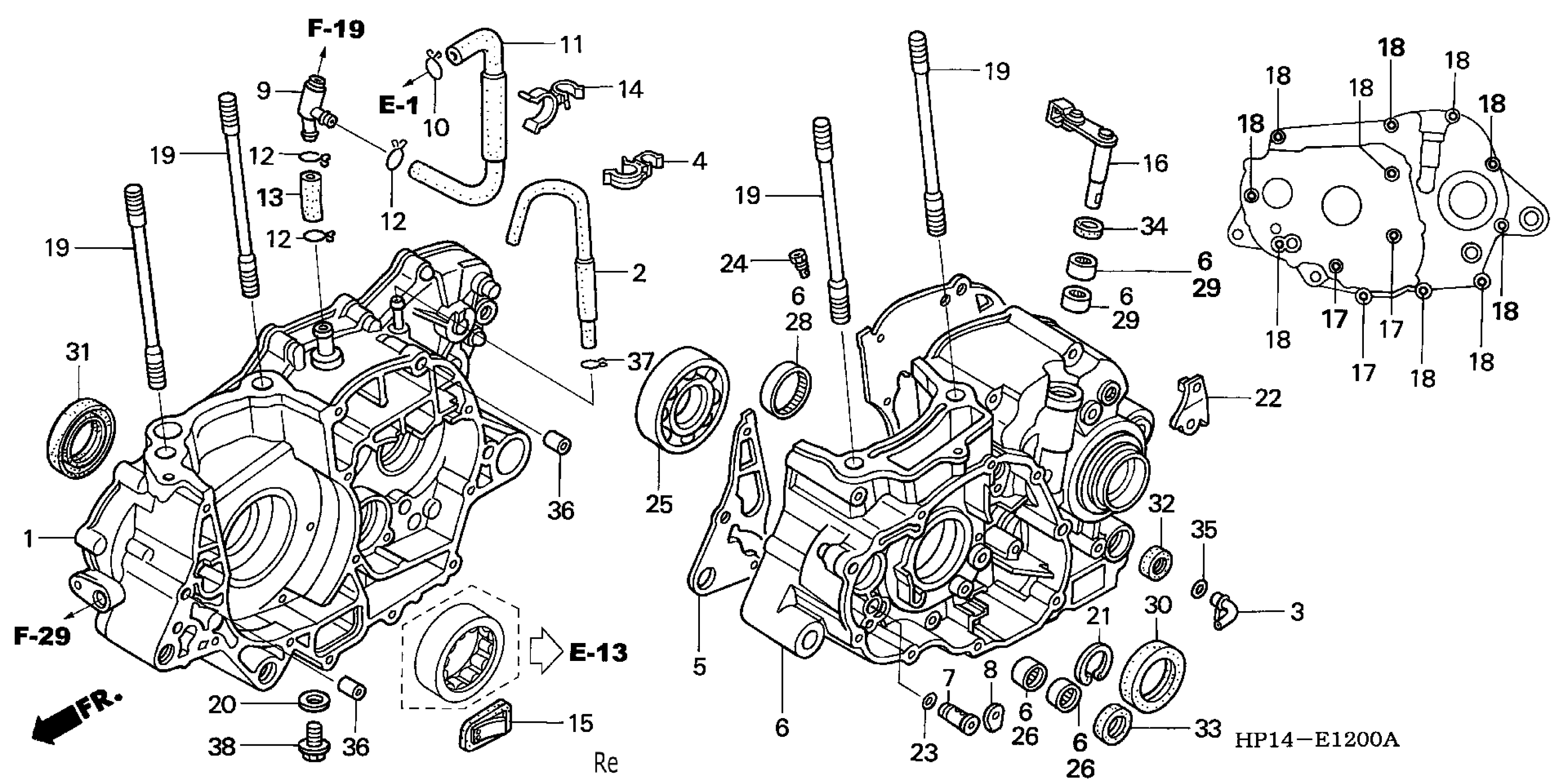

Honda TRX450RA (05) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE300-5A100001 TO 1HFTE300-5A199999 CRANKCASE ('04,'05) Diagram

#

Description
Price

1

CRANKCASE, R.

11100-HP1-670

Unavailable

2

TUBE C, BREATHER

11105-HP1-671

Unavailable

3

JOINT, BREATHER

11106-HP1-670

Unavailable

4

CLIP, TRANSMISSION BREATHER TUBE

11112-HP1-670

Unavailable

5

GASKET, CRANKCASE

11191-HP1-670

$24.53

6

CRANKCASE, L.

11200-HP1-670

$525.22

7

VALVE ASSY., RELIEF

15220-HP1-670

Unavailable

8

PLATE, OIL RELIEF SETTING

15224-HP1-670

Unavailable

9

JOINT, BREATHER THREE WAY

15771-HP1-670

Unavailable

10

CLIP, OIL DRAIN TUBE

15771-551-000

$9.44

11

TUBE A, BREATHER

15772-HP1-670

Unavailable

12

CLIP, BREATHER TUBE

15772-500-010

$3.90

12

CLIP, BREATHER TUBE This part replaces 15772-500-013.

15772-500-010

$3.90

13

TUBE B, BREATHER

15775-HP1-670

Unavailable

14

CLIP, BREATHER TUBE

15776-HP1-671

Unavailable

15

VALVE, REED

18601-MBW-003

$17.16

16

LEVER, CLUTCH LIFTER

22810-HP1-670

Unavailable

17

BOLT, FLANGE (6X50) (NSHF)

90004-GHB-730

$4.25

18

BOLT, FLANGE (6X75) (NSHF)

90004-GHB-780

$3.12

19

BOLT, STUD (12X159)

90031-HP1-670

$6.60

20

WASHER, SEALING (8MM)

90474-333-000

$3.30

21

CIRCLIP, SPECIAL (33MM)

90604-MEB-670

$4.40

22

CLAMP BASE, PARKING CABLE

90620-HP1-670

Unavailable

23

O-RING (8.5X1.7)

90751-GK1-003

$2.70

24

JET, OIL (#120)

90910-HP1-670

Unavailable

25

BEARING, RADIAL BALL SPECIAL (6306)

91001-HP1-671

$28.58

26

BEARING, NEEDLE (9MM) (NTN)

91006-HA0-003

$13.32

28

BEARING, SHELL (33X38X8) (NTN)

91022-KA4-740

$17.87

29

BEARING, NEEDLE (12X16X10) This part replaces 91053-719-005.

91101-PZ9-000

$8.68

29

BEARING, NEEDLE (12X16X10)

91101-PZ9-000

$8.68

30

OIL SEAL (33X47X7)

91201-HP1-671

$15.23

31

OIL SEAL (30X44X7) | Use up to Engine SN 8043347

91202-HP1-671

$15.23

31

OIL SEAL (34X44X7) | Use from Engine SN 8043348

91202-HP1-672

$16.84

32

OIL SEAL (14X22X5) (NOK)

91203-KA4-771

$3.81

33

OIL SEAL (20X33X5) (ARAI)

91203-MEB-671

$4.89

34

OIL SEAL (12X20X5) (ARAI)

91205-KF0-003

$3.47

35

O-RING (10X2) (ARAI)

91304-HA5-003

$3.92

36

PIN, DOWEL (8X14)

94301-08140

$2.25

37

CLIP, TUBE (B10)

95002-02100

$1.90

38

BOLT, FLANGE (8X20)

95701-08020-08

$1.62
