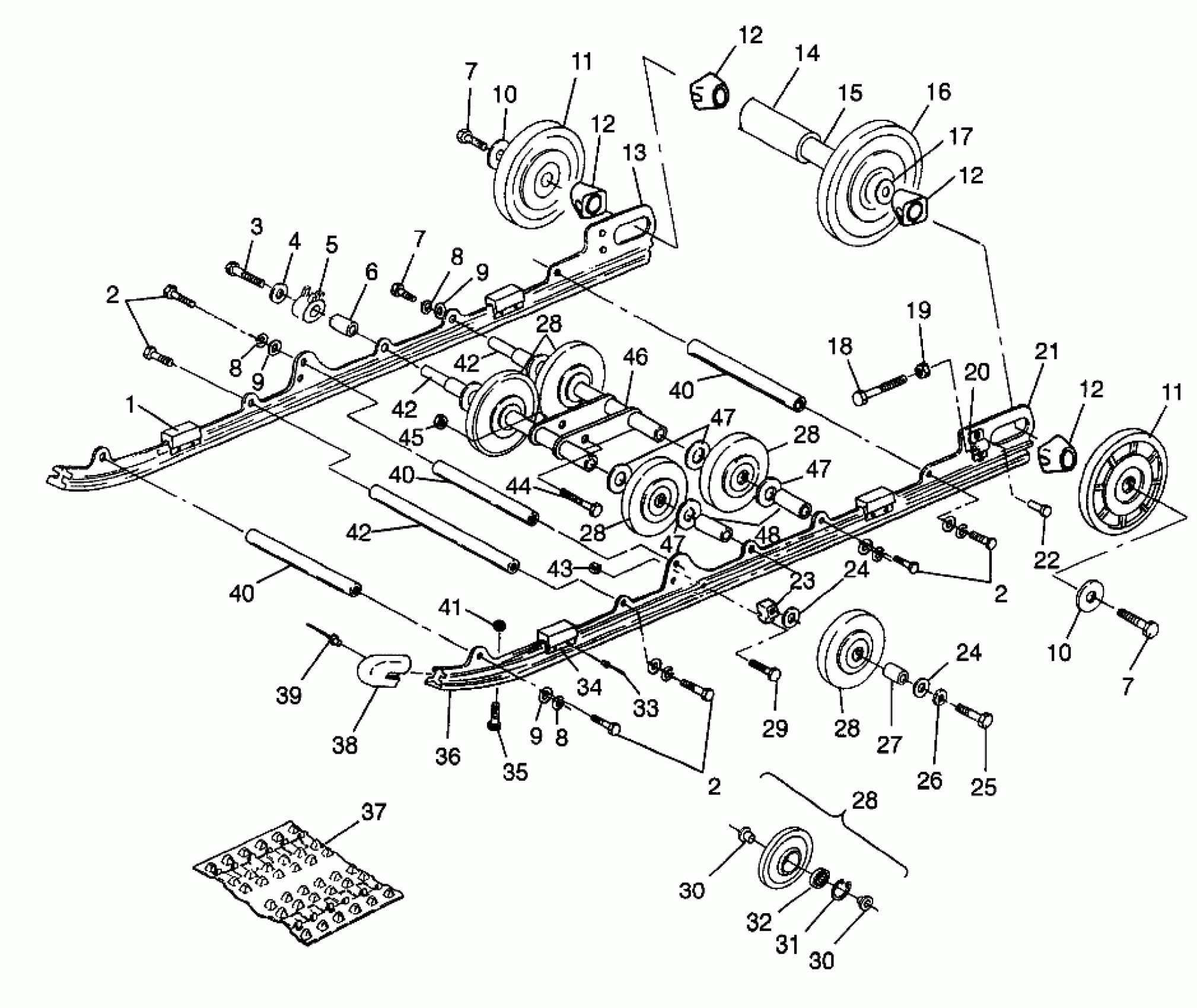

Polaris TRAN SPORT - 0980143 SUSPENSION - 0980143 (4942824282b009) Diagram
#
1
BUMPER, RAIL
5810554
$7.27
2
SCREW,(10)
7517247
$3.19
2
SCREW,(10)
7517247
$3.19
2
SCREW,(10)
7517247
$3.19
3
BOLT, SUSP.(10)
7515499
Unavailable
4
WASHER(10)
7555823
$3.99
5
BLOCK,SPRING SLIDER
5431924
$10.65
6
SPACER
5333428
$4.79
7
BOLT(10)
7515526
$1.19
7
BOLT(10)
7515526
$1.19
7
BOLT(10)
7515526
$1.19
8
WASHER SPRINGLOCK(10) Substituted by 7552603
7553001
Unavailable
8
WASHER SPRINGLOCK(10) Substituted by 7552603
7553001
Unavailable
8
WASHER SPRINGLOCK(10) Substituted by 7552603
7553001
Unavailable
9
WASHER(10) Substituted by 7555806
7555720
$0.79
9
WASHER(10) Substituted by 7555806
7555720
$0.79
9
WASHER(10) Substituted by 7555806
7555720
$0.79
10
WASHER(10) Substituted by 7556130
7571629
Unavailable
10
WASHER(10) Substituted by 7556130
7571629
Unavailable
11
RING-RETAINING
7710444
$8.79
11
Bearing
3514012
Unavailable
11
WHEEL,IDLER,GOLD MET.
1594056-227
Unavailable
11
RING-RETAINING
7710444
$8.79
11
Bearing
3514012
Unavailable
11
WHEEL,IDLER,GOLD MET.
1594056-227
Unavailable
12
SPACER-IDLER
5432535
$11.99
12
SPACER-IDLER
5432535
$11.99
12
SPACER-IDLER
5432535
$11.99
12
SPACER-IDLER
5432535
$11.99
13
RAIL ASM,RH,141" (Incl. 1,20,22,34,38,39)
1541125
Unavailable
14
SPACER-IDLER, LONG
5333285
$11.99
15
SHAFT,IDLER
5020744
$59.99
16
WHEEL,IDLER,BLK(20MM)
1594056-070
$48.56
17
BUSHING(10)
7555918
$1.59
18
BOLT, ADJUSTER(10)
7515455
$29.99
19
NUT,TENSIONER ADJ.
5020943
$20.22
20
BLOCK-IDLER BOLT ADJ.
5130530
$32.37
21
RAIL ASM,LH,141" (Incl. 1,20,22,34,38,39)
1541124
Unavailable
22
RIVET,(50)
7621501
$2.39
23
BRACKET,BOGIE WHEEL
5130570
$48.56
24
WASHER(10)
7555804
$3.99
24
WASHER(10)
7555804
$3.99
25
BOLT(10)
7512659
$7.99
26
LOCK WASHER(10)
7553201
$3.99
27
SPACER
5332786
$7.99
28
WHEEL, IDLER (Incl. 30-32)
1543018
$56.65
28
WHEEL, IDLER (Incl. 30-32)
1543018
$56.65
28
WHEEL, IDLER (Incl. 30-32)
1543018
$56.65
28
WHEEL, IDLER (Incl. 30-32)
1543018
$56.65
28
WHEEL, IDLER (Incl. 30-32)
1543018
$56.65
29
BOLT(10)
7512404
$3.99
30
INSERT, WHEEL,(10) (2 Per Wheel)
5431531
$9.70
30
INSERT, WHEEL,(10) (2 Per Wheel)
5431531
$9.70
31
RET.RING-TRUARC (1 per Wheel)
7718407
$4.79
32
BEARING,CHAINCASE (1 per Wheel)
3514305
$19.99
33
RIVET-3/16 (.626-.750) Q-AL-ST
7621476
$1.49
34
REINF., BUMPER
5222629
$13.75
35
SCREW(10)
7512227
$3.19
36
SLIDER,WHI.,(2)
5521452
$40.46
37
CLIP, TRACK(CAMOPLAST),(10)
5222839
Unavailable
37
CLIP,GUIDE,CAMOPLAST,(10)
5222840
Unavailable
37
TRACK,141'',DEEP-PROF,MOLDED
5410801
Unavailable
38
COVER-RAIL TIP
5430627
$32.37
39
RIVET(50)
7621435
$1.49
40
SHAFT,PIVOT ARM
5020723
$29.99
40
SHAFT,PIVOT ARM
5020723
$29.99
40
SHAFT,PIVOT ARM
5020723
$29.99
41
NUT-LOCK(10)
7542122
$1.49
42
SHAFT,PIVOT ARM
5020724
$29.99
42
SHAFT,PIVOT ARM
5020724
$29.99
42
SHAFT,PIVOT ARM
5020724
$29.99
43
NUT LOCK(10)
7542403
$3.99
44
BOLT(10)
7515438
$4.79
45
NUT-LOCK(10)
7542439
$1.49
46
ARM,SHOCK MT,BLK. Substituted by 1541334-067
1540636-067
Unavailable
47
MACHINERY BUSHING(10)
7556301
$3.19
47
MACHINERY BUSHING(10)
7556301
$3.19
47
MACHINERY BUSHING(10)
7556301
$3.19
48
SPACER, OUTER
5332784
Unavailable
