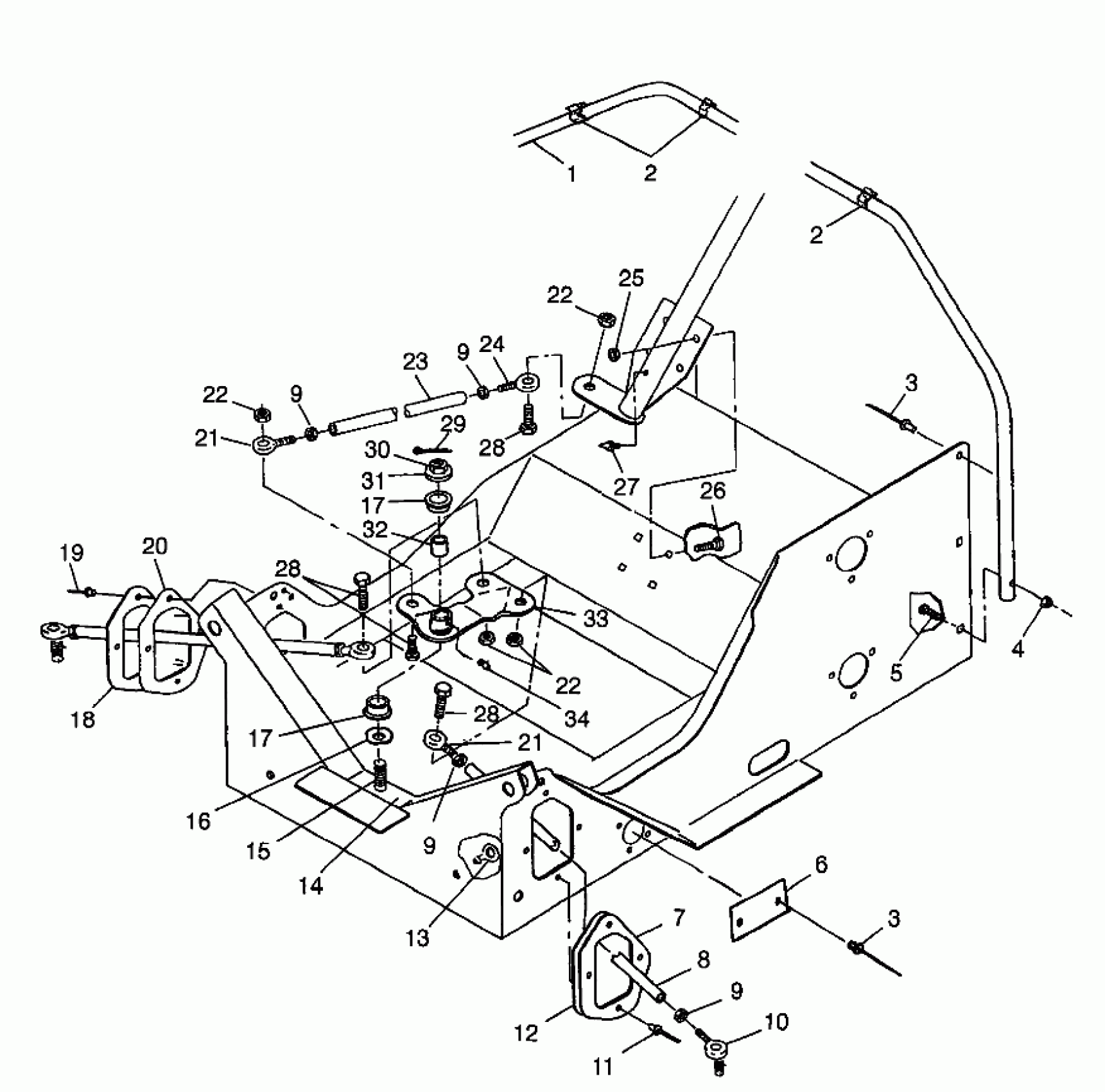

Polaris TRAN SPORT - 0980143 STEERING - E980143 (4942824282b004) Diagram
#
Description
Price
1
HOOP,STEERING
1012369-067
Unavailable
2
CLIP(10)
7080278
$2.63
2
CLIP(10)
7080278
$2.63
3
RIVET-3/16-.090-.290
7661637
$1.49
3
RIVET-3/16-.090-.290
7661637
$1.49
4
NUT, LOCK(10)
7542103
$5.59
5
BOLT-CARRIAGE(10)
7512275
$3.99
6
PLATE,TORS.BAR,HOLE
5211771
$4.78
7
PLATE,LH,BOOTSEAL,BLK.
5210959-067
Unavailable
8
ROD,TIE,BLK
5020878-067
Unavailable
9
NUT HEX(10)
7542401
$2.39
9
NUT
7542424
$1.49
9
NUT HEX(10)
7542401
$2.39
9
NUT
7542424
$1.49
9
NUT HEX(10)
7542401
$2.39
9
NUT
7542424
$1.49
9
NUT HEX(10)
7542401
$2.39
9
NUT
7542424
$1.49
10
ROD-END,RH,3/8,HI-ANGLE
7060174
$48.56
11
POP RIVET(50)
7621323
$1.49
12
BOOT , LH
5410388
Unavailable
13
CLIP, PLASTIC(10)
4020139
$4.79
14
BLOCK,STRG,(CAST)
5630563
$32.37
15
BOLT(10)
7512682
Unavailable
16
WASHER,WAVE(10)
7555735
$3.99
17
BUSHING
3563907
$3.99
17
BUSHING
3563907
$3.99
18
PLATE,BOOTSEAL,BLK.
5210904-067
$5.71
19
RIVET(50)
7621340
$0.56
20
BOOT-TIE ROD
5410328
Unavailable
21
ROD END, LH.
7060164
$48.56
21
ROD END, LH.
7060164
$48.56
22
NUT LOCK(10)
7542403
$3.99
22
NUT LOCK(10)
7542403
$3.99
22
NUT LOCK(10)
7542403
$3.99
23
ROD-DRAG LINK
5332712
Unavailable
24
ROD END, RH.
7060165
$48.56
25
NUT FLEX-LOC(10)
7542303
$6.39
26
BOLT,(10)
7517428
$2.39
27
FITTING,LUB/VEN(10)
7080561
$4.79
28
BOLT(10)
7512404
$3.99
28
BOLT(10)
7512404
$3.99
28
BOLT(10)
7512404
$3.99
29
PIN COTTER(10)
7661203
$1.49
30
NUT FLEX,(10)
7542703
Unavailable
31
WASHER(10)
7555721
$1.49
32
BUSHING
5010340
Unavailable
33
STRG.ASM,CTR. (Incl. 17,34)
1822286
$29.60
34
ZERK,FITTING,THREADED(10)
7080433
$1.49
