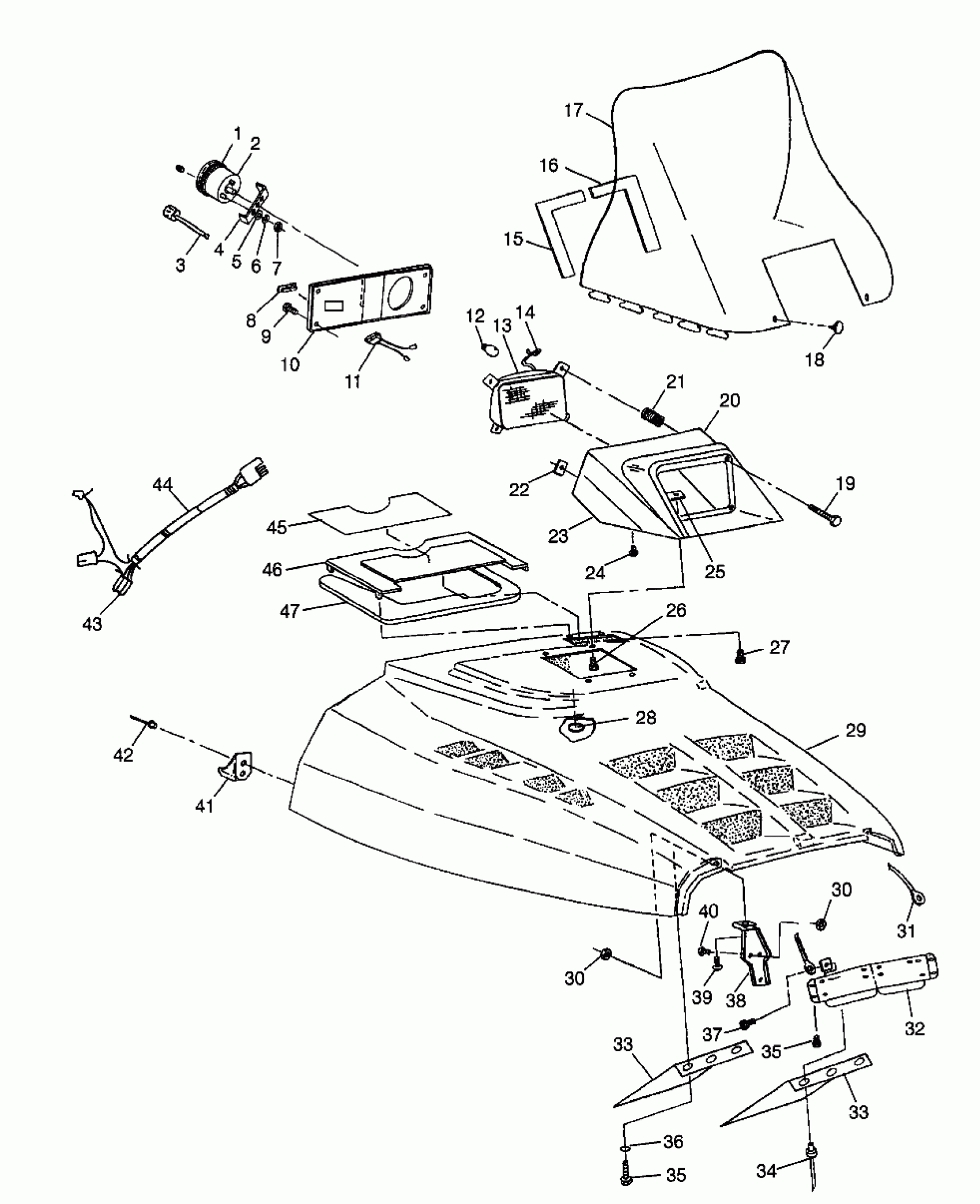

Polaris TRAN SPORT - 0980143 HOOD - E980143 (4942824282a011) Diagram
#
1
CUSHION,TACH/SPEEDO,RUBBER
3280209
$3.99
2
BULB TAILLIGHT(10)
4030015
$4.03
2
SPEEDO,BACKLIT,190 KPH (Incl. 1,4-7)
3280212
$131.99
2
SPEEDO,BACKLIT (Incl. 1,4-7)
3280204
Unavailable
3
CABLE,SPEEDO.
3280094
$60.70
4
BRKT,TACH/SPEEDO,5"
3280210
$28.32
5
WASHER,SPLIT LOCK
3280156
$1.49
6
WASHER,FLAT,(10)
3280157
$2.39
7
Nut
3280158
Unavailable
8
INDICATOR,'ACC'WARN.
4040014
Unavailable
9
SCREW,SCKT.HD.CAP(10)
7512008
Unavailable
10
BEZEL,INST,5IN.SPORT
5432397
Unavailable
11
HARNESS,JUMPER,ACC LAMP
2460587
Unavailable
12
BULB, H/L
4030028
$29.99
13
HEADLIGHT ASM. (Incl. 12,14)
4032038
Unavailable
14
RETAINER,H/L BULB
4032063
Unavailable
15
PAD,W/S,RH,BLACK
5810438
$1.67
16
PAD,W/S,LH,BLACK
5810437
Unavailable
17
WINDSHIELD, HIGH
5431118
Unavailable
18
RIVET,PLASTI-LOC.(50)
7621509
$1.49
19
SCREW, ADJ.(10)
4032003
Unavailable
20
HSG,INSTR,TOP,BLK
5432349-070
Unavailable
21
SPRING-ADJ
4032002
Unavailable
22
NUT, SPEED(10)
7670056
Unavailable
23
HSG,INST.BOTT.BLK.
5430922-070
Unavailable
24
SCREW(10)
7512009
Unavailable
25
NUT, SPEED(10)
7670057
$1.49
26
SCREW, SEMS(10)
7512283
$3.99
27
SCREW(10)
7511840
Unavailable
28
RETAINER,WINDSHIELD,(10)
5410970
$1.49
29
HOOD,F/C,EMERALD (See Footnote) (Incl. Foam, Foil & Warning Decals)
2631746-210
Unavailable
30
NUT(10)
7542153
$1.59
30
NUT(10)
7542153
$1.59
31
CABLE,HD.RETAINER
7080360
$24.27
32
PLATE,RE-INF.,(HD.)
5222105
$49.51
33
DEFLECTOR, AIR Substituted by 5243393
5222691
Unavailable
33
DEFLECTOR, AIR Substituted by 5243393
5222691
Unavailable
34
POP RIVET(50)
7621425
$1.49
35
SCREW(10)
7511861
Unavailable
35
SCREW(10)
7511861
Unavailable
36
WSHR-.194X.475X.049 ZTB
7555746
Unavailable
37
SCREW(10)
7511989
Unavailable
38
HINGE ASM,HD,BLK
2635005-067
$16.67
39
BOLT-CARRIAGE(10)
7512263
$3.99
40
BOLT(10)
7512193
$2.39
41
CUP, HOOD LATCH,(10)
5430733
$4.84
42
RIVET(50)
7621334
$1.49
43
HOUSING
4020052
Unavailable
44
HARNESS,HEADLIGHT
2460576
Unavailable
45
DECAL,WARN."PK.BRAKE"
7075457
Unavailable
46
PANEL ASM,INTAKE,EMERALD (Incl. 45)
2620095-210
Unavailable
47
SEAL, INTAKE
5810597
Unavailable
