Description

Price

1

RIVET(50) Substituted by 7661130

7661643

Unavailable

2

GUIDE, RECOIL

5431385

$10.51

3

RIVET,INTERLOCK,B(50)

7661638

$1.49

3

RIVET,INTERLOCK,B(50)

7661638

$1.49

4

BRKT,GUIDE,REV,BLK

5241674-067

$27.63

5

CONSOLE

5222756-067

Unavailable

6

Cable, Choke Control

7080290

$105.22

7

KIT-CHOKE CONTROL

2200188

$24.27

8

SWITCH,H-BAR HEATER

4110066

Unavailable

8

SWITCH,H-BAR HEATER

4110066

Unavailable

9

KIT,IGN. SWITCH (Incl. 18)

2200357

Unavailable

10

DECAL, CONSOLE [No Longer Available]

7072973

Unavailable

11

HOUSING

4020133

Unavailable

12

Housing w/Receptacle

4020057

$3.51

13

HARNESS,MAIN WIRE (US)

2460577

Unavailable

13

HARNESS,MAIN WIRE,EUR(2460577) (Euro)

2460588

$87.73

14

NUT(10)

7541925

$1.49

15

REGULATOR,14 VAC.LR-9

4060122

Unavailable

16

SPACER,REGULATOR

5211573

Unavailable

17

BOLT(10)

7512031

$2.23

18

KEY,IGNITION,W/CAP [Cannot Purchase as Assembly] (See Footnote) NOTE: When ordering ignition key PN 5410611 be sure to specify if for an A,B,C,D, or E switch. Letter code will be labeled on undersid

5410611

Unavailable

19

NUT,IGNITION

7547035

$8.79

20

Nut

7080229

$19.99

21

WASHER-LOCK(10)

7571610

$3.99

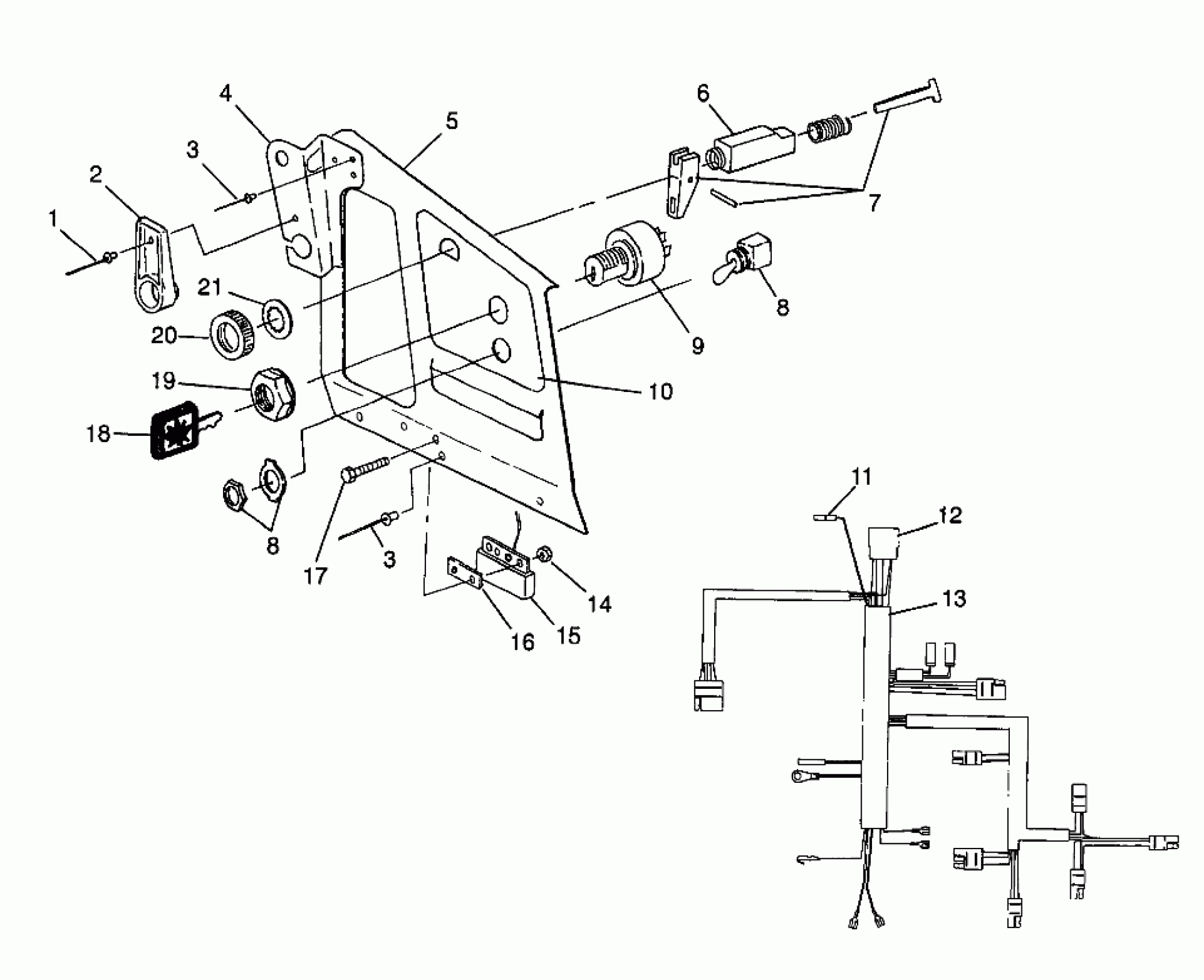

Polaris TRAN SPORT - 0980143 CONSOLE - E980143 (4942824282a014) Diagram

RIVET(50) Substituted by 7661130

GUIDE, RECOIL

RIVET,INTERLOCK,B(50)

RIVET,INTERLOCK,B(50)

BRKT,GUIDE,REV,BLK

CONSOLE

Cable, Choke Control

KIT-CHOKE CONTROL

SWITCH,H-BAR HEATER

SWITCH,H-BAR HEATER

KIT,IGN. SWITCH (Incl. 18)

DECAL, CONSOLE [No Longer Available]

HOUSING

Housing w/Receptacle

HARNESS,MAIN WIRE (US)

HARNESS,MAIN WIRE,EUR(2460577) (Euro)

NUT(10)

REGULATOR,14 VAC.LR-9

SPACER,REGULATOR

BOLT(10)

KEY,IGNITION,W/CAP [Cannot Purchase as Assembly] (See Footnote) NOTE: When ordering ignition key PN 5410611 be sure to specify if for an A,B,C,D, or E switch. Letter code will be labeled on undersid

NUT,IGNITION

Nut

WASHER-LOCK(10)
