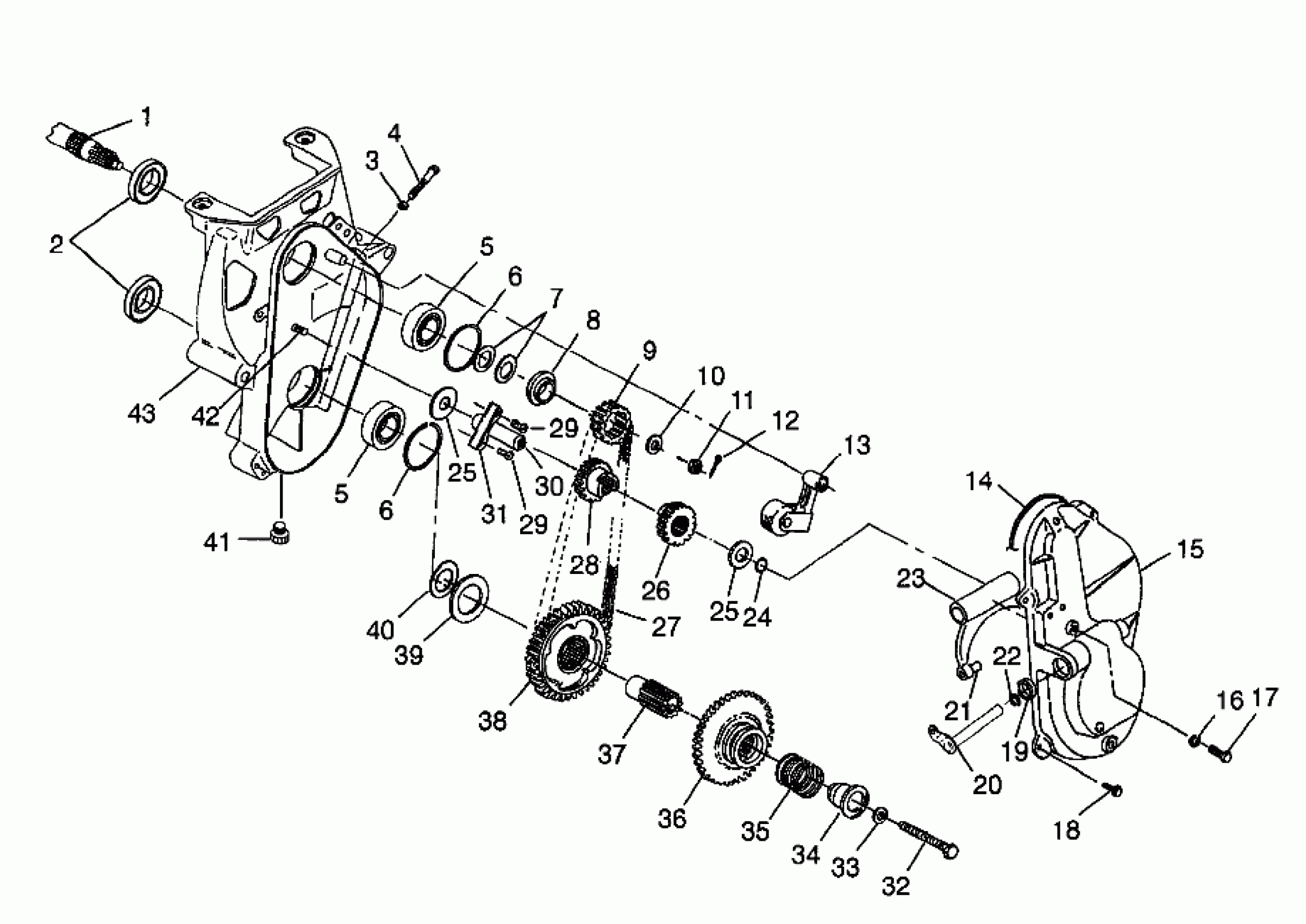

Polaris TRAN SPORT - 0980143 CHAINCASE - E980143 (4942824282b006) Diagram
#
1
Asm., Jackshaft (See Footnote) (See Drive Train Pg. B7, Ref. 16)
-------
Unavailable
2
SEAL-OIL
3610030
$20.22
3
NUT(10)
7542404
$1.59
4
SCREW(10)
7515511
$3.99
5
BEARING
3514308
Unavailable
5
BEARING
3514308
Unavailable
6
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
6
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
7
WASHER,THRUST(10)
7555876
Unavailable
8
SPACER, SPROCKET
5010270
Unavailable
9
SPKT,16T,13W,13T SPLINE (13W)
3221104
Unavailable
10
WASHER, SLOTTED(10)
7571620
$7.19
11
NUT
7542811
Unavailable
12
COTTER PIN(10)
7661401
$1.49
13
PIN,CHAIN TIGHTENER
7662210
Unavailable
13
TIGHTENER ASM,GEARCASE Substituted by 1332213
1332096
$159.99
13
BEARING
3553002
$11.99
13
BLOCK,TIGHTENER [No Longer Available]
5630122
Unavailable
13
WHEEL,C/C IDLER
5630123
Unavailable
13
WASHER THRUST(10)
7558702
$1.59
14
GASKET-CHAINCASE
5410277
$24.99
15
COVER,CHAINCASE,REV.
5131753
Unavailable
16
WASHER WROUGHT(10)
7558403
$4.79
17
SCREW(10)
7512492
$1.49
18
SCREW(10)
7512242
$2.39
19
Seal, Oil
3610029
$8.89
20
SHAFT,SHIFT,BLK
1341221-067
$35.99
21
PIN, SHIFT FORK(10)
7661826
$5.65
22
RING, RETAINER(10)
7710415
$3.99
23
KIT,SHIFT FORK/SHAFT (Incl. 19, 21)
2200363
Unavailable
23
Fork, Shift
5130805
Unavailable
24
O RING
5410589
$4.99
25
WASHER,THRUST(10)
7555877
$3.99
25
WASHER,THRUST(10)
7555877
$3.99
26
GEAR,SPUR PINION
1341075
$149.99
27
CHAIN,64P,(13W),SILENT (13W)
3224052
Unavailable
28
GEAR ASM, PINION
1341076
Unavailable
29
SCREW(10)
7512019
$3.99
29
SCREW(10)
7512019
$3.99
30
SHAFT, PINION Substituted by 5131770
5130728
Unavailable
31
BRKT,CHAIN RETENTION
5222298
Unavailable
32
SCREW, NYLOK(10)
7515348
$4.79
33
LOCK WASHER(10)
7552901
$1.49
34
RETAINER,DRIVE COUPLER
5130727
Unavailable
35
SPRING, COMPRESSION Substituted by 7041887
7041309
$44.99
36
GEAR ASM,REVERSE Substituted by 1341362
1341121
$559.99
37
Coupler, Drive
5130720
Unavailable
38
SPROCKET ASM. (13W)
1341162
Unavailable
39
WASHER, REVERSE(10)
7555871
$5.59
40
WASHER(10)
7555917
$2.39
41
PLUG(10)
7052115
$5.65
42
BOLT(10)
7515477
$34.99
43
CHAINCASE-W/RATCHET MNT
5131568
Unavailable
