FRONT SUSPENSION and SKI TRAN SPORT 0970143 and EUROPEAN TRAN SPORT E970143 (4938293829B002)

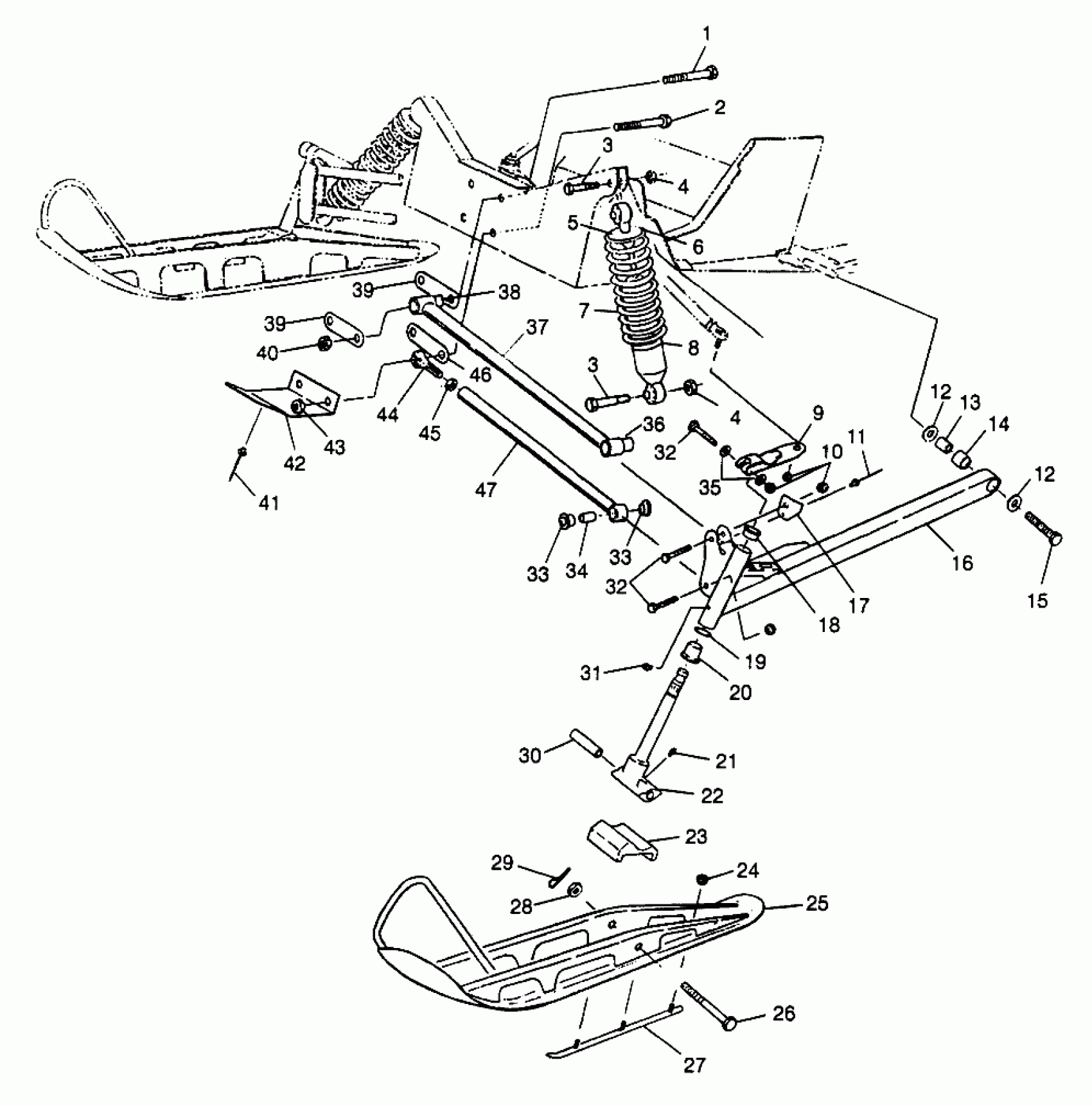

Polaris TRAN SPORT - 0970143 FRONT SUSPENSION and SKI TRAN SPORT 0970143 and EUROPEAN TRAN SPORT E970143 (4938293829B002) Diagram
#
1
BOLT(10)
7512582
$8.79
2
BOLT(10)
7512656
$6.23
3
BOLT(10) Substituted by 7515415
7515515
Unavailable
3
BOLT(10) Substituted by 7515415
7515515
Unavailable
4
NUT, NYLOC(10)
7542453
Unavailable
4
NUT, NYLOC(10)
7542453
Unavailable
5
RETAINER-TOP
5220225
$10.39
6
SHOCK,IFS
7041535
$214.99
7
SPRING,COMP.,BLK.
7041261-067
$164.99
8
SPACER,SHOCK RETAINER(10)
5210953
$6.39
9
ARM,STRG,BLK
5241560-067
Unavailable
10
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
11
RIVET(50) Substituted by 7661130
7661643
Unavailable
12
WASHER(10)
7555721
$1.49
12
WASHER(10)
7555721
$1.49
13
TUBE, BUSHING
5010310
$9.70
14
PIVOT,TRLG.ARM,RUBBER
5410872
$10.99
15
BOLT(10)
7512557
$7.60
16
ARM,TRLG,LH Substituted by 2201319 (Incl. 13, 14)
1822366
$344.99
16
ARM,TRLG,RH Substituted by 2201320 (Incl. 13, 14)
1822367
Unavailable
17
STOP,LH,STRG,BLK.
5241569-067
$7.27
17
STOP,RH,STRG,BLK.
5241570-067
$7.27
18
BUSHING-FLANGE
3573909
$2.39
19
WASHER SPECIAL(10)
7556509
$1.59
20
BUSHING,SPINDLE HSG,(10)
3574208
$3.19
21
FITTING,LUBE.W/BALL CK.(10)
7080306
$3.19
22
SHAFT,SPINDLE,TRLG,BLK
6230102-067
$294.99
23
Stop, Rubber
5411083
$12.94
24
NUT-5/16-18 NYLOK-Y
7542324
$1.49
25
SKI WELD
1820430-067
Unavailable
26
BOLT(10)
7515462
$8.79
27
SKAG,SHORT(20)
1820267
$23.99
28
NUT, CASTLE(10) Substituted by 7542438
7542457
Unavailable
29
PIN, COTTER(10) Substituted by 7661205
7661209
Unavailable
30
BUSHING,PIVOT,(10)
5010158
$19.99
31
ZERK,FITTING,THREADED(10)
7080433
$1.49
32
BOLT(10) Substituted by 7517583
7515491
Unavailable
32
BOLT(10) Substituted by 7517583
7515491
Unavailable
33
BUSH,RAD.ROD PIVOT,OUT.
5431486
$3.19
33
BUSH,RAD.ROD PIVOT,OUT.
5431486
$3.19
34
BUSHING-RADIUS ROD,(10)
5010127
$7.99
35
WASHER(10) Substituted by 7555832
7555851
Unavailable
36
BUSHING,RAD.ROD PIVOT,3/8
5411099
$11.99
37
DESC NOT_AVAILABLE
1822425-067
$119.99
38
BUSHING,PIVOT,7/16
5411095
$15.99
39
STRAP,SPACER TOP
5211344
$7.27
39
STRAP,SPACER TOP
5211344
$7.27
40
NUT, LOCK,(10)
7542503
$10.39
41
RIVET(50)
7621452
$1.49
42
BRACE, PAN
5223997-067
Unavailable
43
NUT FLEX,(10)
7542703
Unavailable
44
ROD END,RH Substituted by 7061011
7060156
Unavailable
45
NUT-JAM(10)
7542711
$2.39
46
STRAP,SPACER BOTTOM
5211345
$12.99
47
ROD,RAD,LOWER,BLK
1822444-067
$60.70
