ENGINE MOUNTING TRAN SPORT 0970143 and EUROPEAN TRAN SPORT E970143 (4938293829C001)

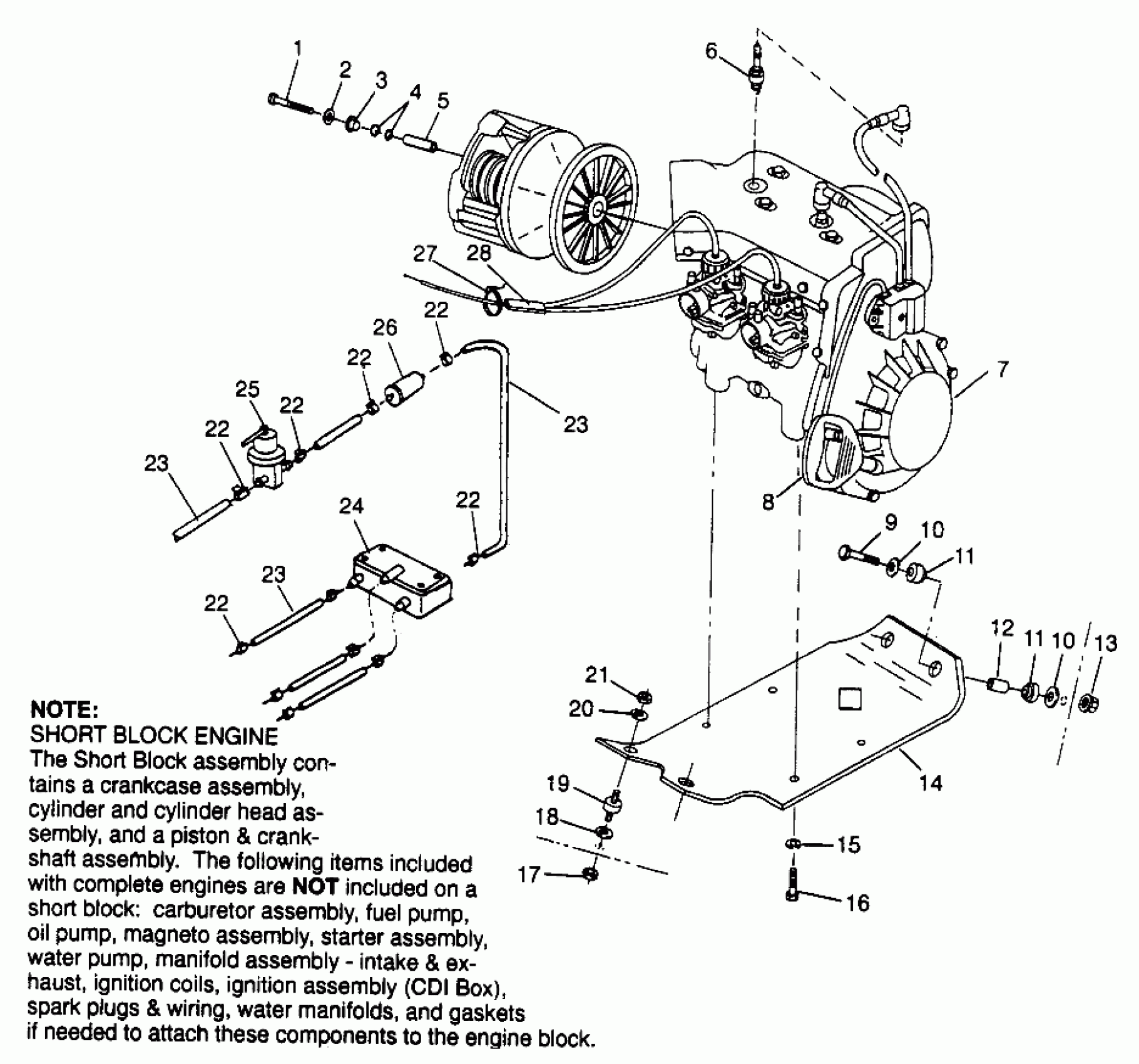

Polaris TRAN SPORT - 0970143 ENGINE MOUNTING TRAN SPORT 0970143 and EUROPEAN TRAN SPORT E970143 (4938293829C001) Diagram
#
Description
Price
1
SCREW(10)
7512593
Unavailable
2
WASHER-7/16-INT LK-(1222)-Z
7575202
$4.79
3
WASHER,CLUTCH RETAINER
5010278
Unavailable
4
O RING,(10)
5410507
$1.49
5
SPACER,CLUTCHBOLT
5020847
Unavailable
6
SPARKPLUG (10)
3070156
$3.99
7
ENG.(S.B.)EC44-3PM025 [No Longer Available]
3084623
Unavailable
8
HANDLE,RECOIL Substituted by 5431499-070
5431499
Unavailable
9
SCREW(10)
7512530
$5.59
10
WASHER(10)
7555740
$1.59
10
WASHER(10)
7555740
$1.59
11
MOUNT, ENGINE
5410390
Unavailable
11
MOUNT, ENGINE
5410390
Unavailable
12
TUBE,SPACER
5333354
Unavailable
13
NUT,FLANGE(10)
7542522
$5.59
14
PLATE,MTR.MT,(LWT)
5131192
$48.02
15
WASHER LOCK(10)
7553101
$3.99
16
BOLT(10)
7512539
$3.99
17
NUT FLEX LOC,(10)
7542402
$6.39
18
WASHER,FLAT(10)
7555915
$3.19
19
MOUNT,ENG.
3110061
$84.99
20
WASHER(10) Substituted by 7555806
7555720
$0.79
21
NUT-HEX-3/8-16 A ZTB NYL
7542451
$1.49
22
HOSE CLAMP, RED
7080003
$1.49
22
HOSE CLAMP, RED
7080003
$1.49
22
HOSE CLAMP, RED
7080003
$1.49
22
HOSE CLAMP, RED
7080003
$1.49
22
HOSE CLAMP, RED
7080003
$1.49
22
HOSE CLAMP, RED
7080003
$1.49
23
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
23
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
23
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
24
Asm., Fuel Pump (See Pg. A37, Ref. 3)
-------
Unavailable
25
VALVE,FUEL SHUT-OFF
7052060
Unavailable
26
FILTER FUEL,(10)
2530008
$4.84
27
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
28
CABLE,THROTTLE,W/OIL
7080554
$64.75
