CHAINCASE TRAN SPORT 0970143 and EUROPEAN TRAN SPORT E970143 (4938293829B007)

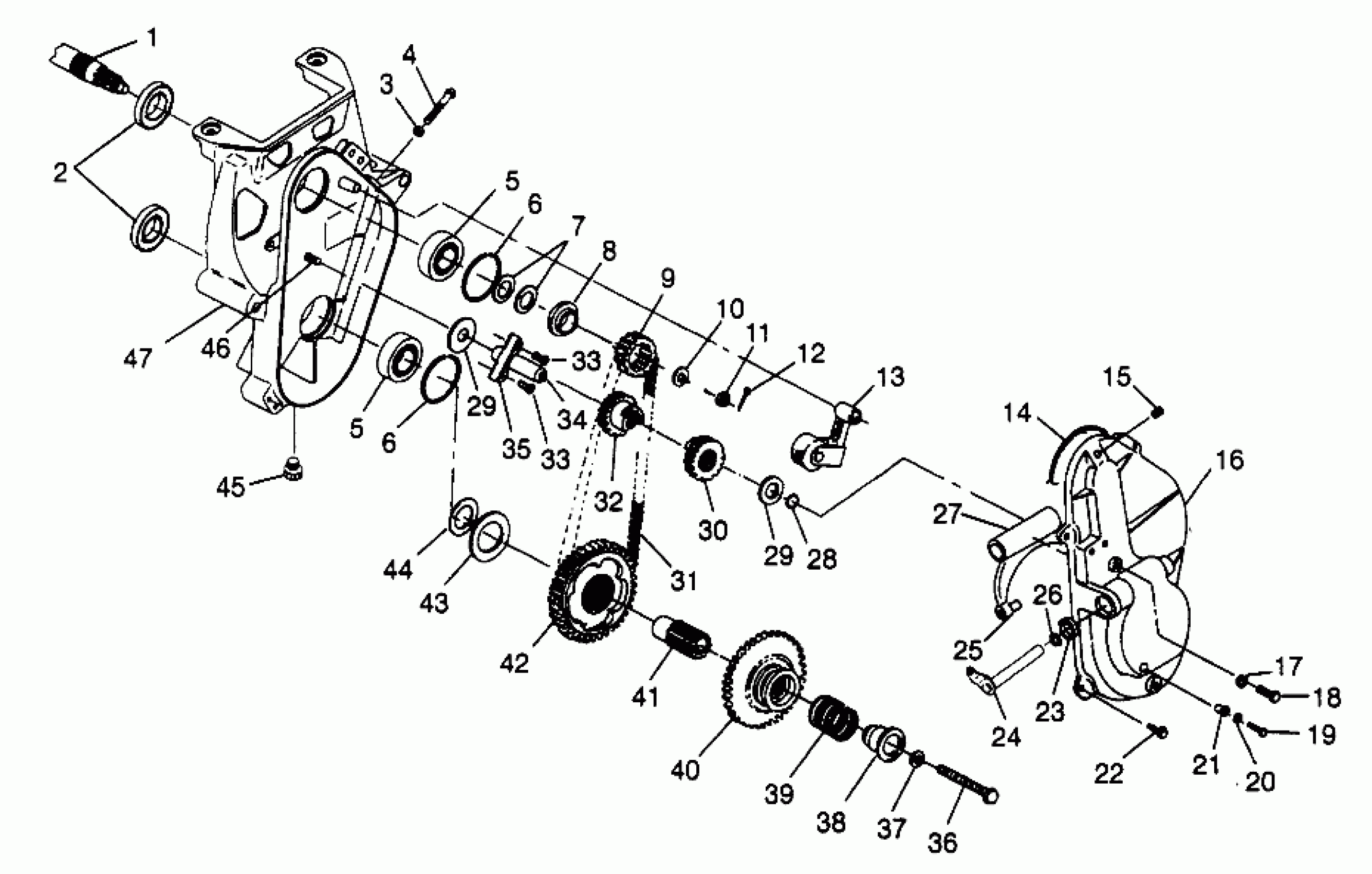

Polaris TRAN SPORT - 0970143 CHAINCASE TRAN SPORT 0970143 and EUROPEAN TRAN SPORT E970143 (4938293829B007) Diagram
#
1
Asm., Jackshaft (See Pg., Ref.)
-------
Unavailable
2
SEAL-OIL
3610030
$20.22
3
NUT(10)
7542404
$1.59
4
SCREW(10)
7515511
$3.99
5
BEARING
3514308
Unavailable
5
BEARING
3514308
Unavailable
6
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
6
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
7
WASHER,THRUST(10)
7555876
Unavailable
8
SPACER, SPROCKET
5010270
Unavailable
9
SPROCKET 15 T (11W)
3221031
Unavailable
10
WASHER, SLOTTED(10)
7571620
$7.19
11
NUT
7542811
Unavailable
12
COTTER PIN(10)
7661401
$1.49
13
PIN,CHAIN TIGHTENER
7662210
Unavailable
13
TIGHTENER ASM,GEARCASE Substituted by 1332213
1332096
$159.99
13
BEARING
3553002
$11.99
13
BLOCK,TIGHTENER [No Longer Available]
5630122
Unavailable
13
WHEEL,C/C IDLER
5630123
Unavailable
13
WASHER THRUST(10)
7558702
$1.59
14
GASKET-CHAINCASE
5410277
$24.99
15
PLUG(10)
7051520
$8.79
16
COVER,CH.CS,REV.MACH. Substituted by 5131753
5131172
Unavailable
17
WASHER WROUGHT(10)
7558403
$4.79
18
SCREW(10)
7512492
$1.49
19
SCREW(10)
7511909
$3.99
20
WASHER, FLAT(10)
7558201
$5.79
21
NUT-WELL(10)
7541918
Unavailable
22
SCREW(10)
7512242
$2.39
23
Seal, Oil
3610029
$8.89
24
SHAFT,SHIFT,BLK
1341221-067
$35.99
25
PIN, SHIFT FORK(10)
7661826
$5.65
26
RING, RETAINER(10)
7710415
$3.99
27
KIT,SHIFT FORK/SHAFT (Incl. 23, 25)
2200363
Unavailable
27
Fork, Shift
5130805
Unavailable
28
O RING
5410589
$4.99
29
WASHER,THRUST(10)
7555877
$3.99
29
WASHER,THRUST(10)
7555877
$3.99
30
GEAR,SPUR PINION
1341075
$149.99
31
CHAIN 64 PITCH (11W)
3224023
Unavailable
32
GEAR ASM, PINION
1341076
Unavailable
33
SCREW(10)
7512019
$3.99
33
SCREW(10)
7512019
$3.99
34
SHAFT, PINION Substituted by 5131770
5130728
Unavailable
35
BRKT,CHAIN RETENTION
5222298
Unavailable
36
SCREW, NYLOK(10)
7515348
$4.79
37
LOCK WASHER(10)
7552901
$1.49
38
RETAINER,DRIVE COUPLER
5130727
Unavailable
39
SPRING, COMPRESSION Substituted by 7041887
7041309
$44.99
40
GEAR ASM,REVERSE Substituted by 1341362
1341121
$559.99
41
Coupler, Drive
5130720
Unavailable
42
SPROCKET ASM,39T (11W)
1341163
Unavailable
43
WASHER, REVERSE(10)
7555871
$5.59
44
WASHER(10)
7555917
$2.39
45
PLUG(10)
7052115
$5.65
46
BOLT(10)
7515477
$34.99
47
CHAINCASE-W/RATCHET MNT
5131568
Unavailable
