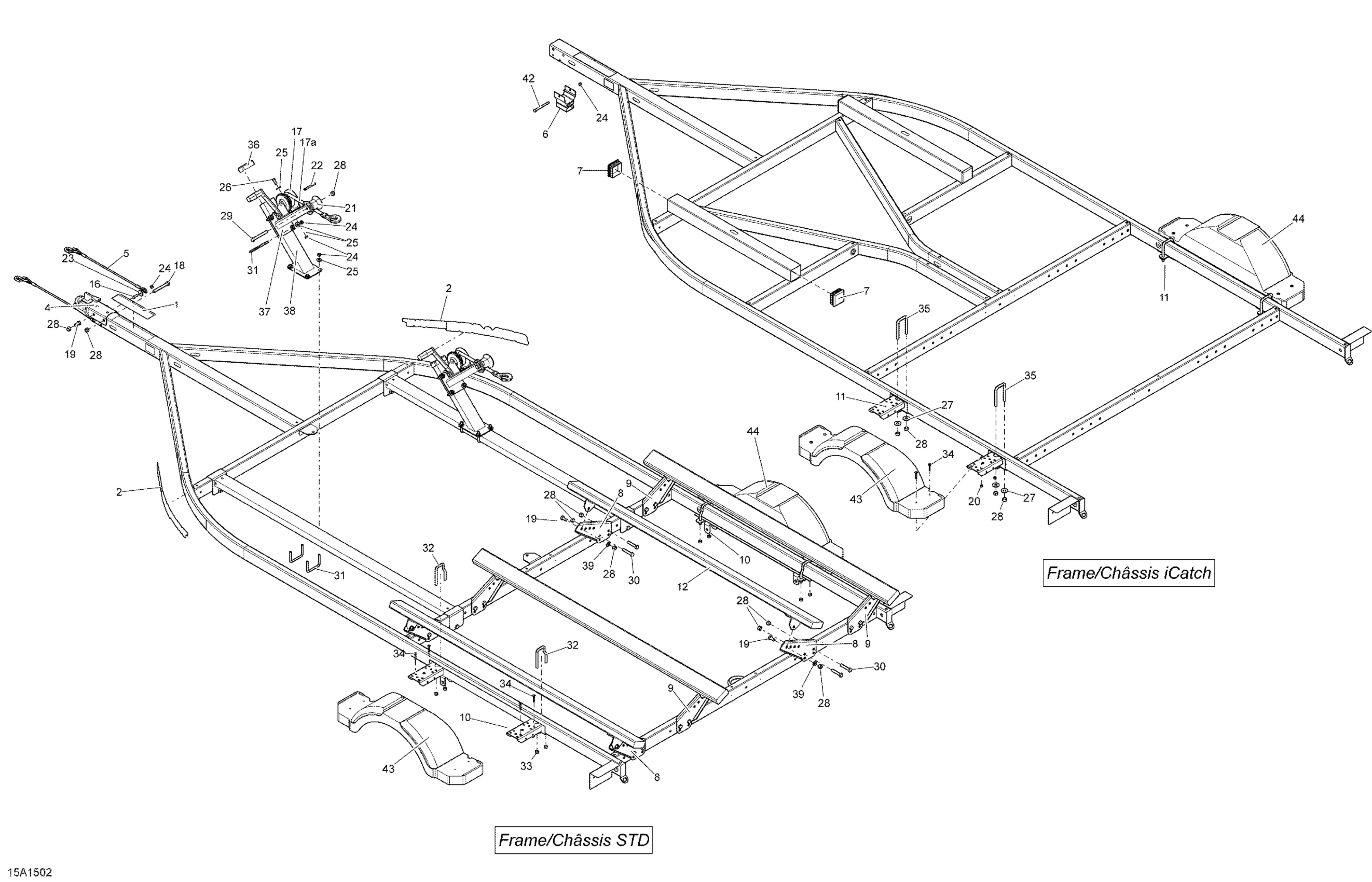

Sea-doo Trailer Move II_Sea-Doo, 2015 09- Frame Diagram
#
1
WARNING DECAL - Call your local BRP dealership This part replaces 219903238.
219904010
Unavailable
2
SEA-DOO DECAL - Call your local BRP dealership
219904018
Unavailable
4
COUPLER - Call your local BRP dealership
262000044
Unavailable
5
SAFETY CABLE - Call your local BRP dealership
262000045
Unavailable
6
TONGUE STAND - Call your local BRP dealership This part replaces 262000049.
295100594
$28.99
7
CAP - Call your local BRP dealership
262000053
Unavailable
8
LH BUNK BRACKET - Call your local BRP dealership
262000218
Unavailable
9
RH BUNK BRACKET - Call your local BRP dealership
262000219
Unavailable
10
SPRING HANGER ASS'Y - Call your local BRP dealership | Galvanized Model
262000220
$194.99
11
FENDER BRACKET, GALVANIZED - Call your local BRP dealership
262000221
Unavailable
12
BUNK 72'' - Call your local BRP dealership
262000230
Unavailable
16
HEX. CAP SCREW 3/8 -16 X 1 - Call your local BRP dealership
269800305
$1.09
17
WINCH - Call your local BRP dealership
269800078
Unavailable
17a
WINCH STRAP - Call your local BRP dealership
296000328
Unavailable
18
HEX. BOLT 1/2''-13 X 4'' - Call your local BRP dealership
269800401
Unavailable
19
HEXAGONAL BOLT - Call your local BRP dealership This part replaces 269800402.
269800132
$5.99
20
Lock Nut
269800160
$4.19
21
BOW ROLLER - Call your local BRP dealership
269800169
$20.99
22
GROMMET - Call your local BRP dealership
296000429
$8.69
23
WASHER - Call your local BRP dealership
269800184
$13.99
24
CENTERLOCK NUT - Call your local BRP dealership
269800299
Unavailable
25
FLAT WASHER - Call your local BRP dealership
269800300
Unavailable
26
HEX. CAP SCREW 3/8 -16 X 1 - Call your local BRP dealership
269800305
$1.09
27
WASHER 1/2'' - Call your local BRP dealership This part replaces 269800139.
269800309
$6.79
28
CENTERLOCK NUT 1/2-1 - Call your local BRP dealership
269800310
$1.09
29
HEX. BOLT 1/2''-13 X 4'' - Call your local BRP dealership
269800401
Unavailable
30
HEX. BOLT - Call your local BRP dealership
269800462
Unavailable
31
U-BOLT 3/8''-16 X 3-1/8'' X 2-3/8'' - Call your local BRP dealership
269800480
$9.29
32
FLARED U-BOLT - Call your local BRP dealership
269800488
$11.49
33
CENTER LOCK NUT 7/16'' - Call your local BRP dealership | XL1500
269800492
Unavailable
34
HEX. SOCKET SCREW 1/4'-20 X 1-1/2'' - Call your local BRP dealership
269800493
$4.39
35
U-BOLT 1/2''-13 X 2-1/16'' X 4-1/2'' - Call your local BRP dealership
269800495
Unavailable
36
END CAP - Call your local BRP dealership
269800575
$12.99
37
WINCH MOUNT CHANNEL SUPPORT, GALV. - Call your local BRP dealership | Galvanized Model
269800576
Unavailable
37
WINCH MOUNT CHANNEL SUPPORT, BLACK - Call your local BRP dealership | Black Model
269800577
$65.99
38
MOUNT CHANNEL SUPPORT, GALVANIZED - Call your local BRP dealership | Galvanized Model
269800578
Unavailable
38
MOUNT CHANNEL SUPPORT, BLACK - Call your local BRP dealership | Black Model
269800579
Unavailable
39
PLASTIC WASHER 1/2'' - Call your local BRP dealership | STD Model
269800598
Unavailable
42
HEX. CAP BOLT 3/8''-16 X 4'' - Call your local BRP dealership
291003301
$4.00
43
LH FENDER TRAILER, GREY - Call your local BRP dealership
291003781
Unavailable
43
LH FENDER TRAILER, BLACK - Call your local BRP dealership
291003844
$65.99
44
RH FENDER TRAILER, GREY - Call your local BRP dealership
291003782
Unavailable
44
RH FENDER TRAILER, BLACK - Call your local BRP dealership
291003845
Unavailable
