- Trailer Move II_Sea-Doo, 2014
05- Propulsion Spark_12A1407a

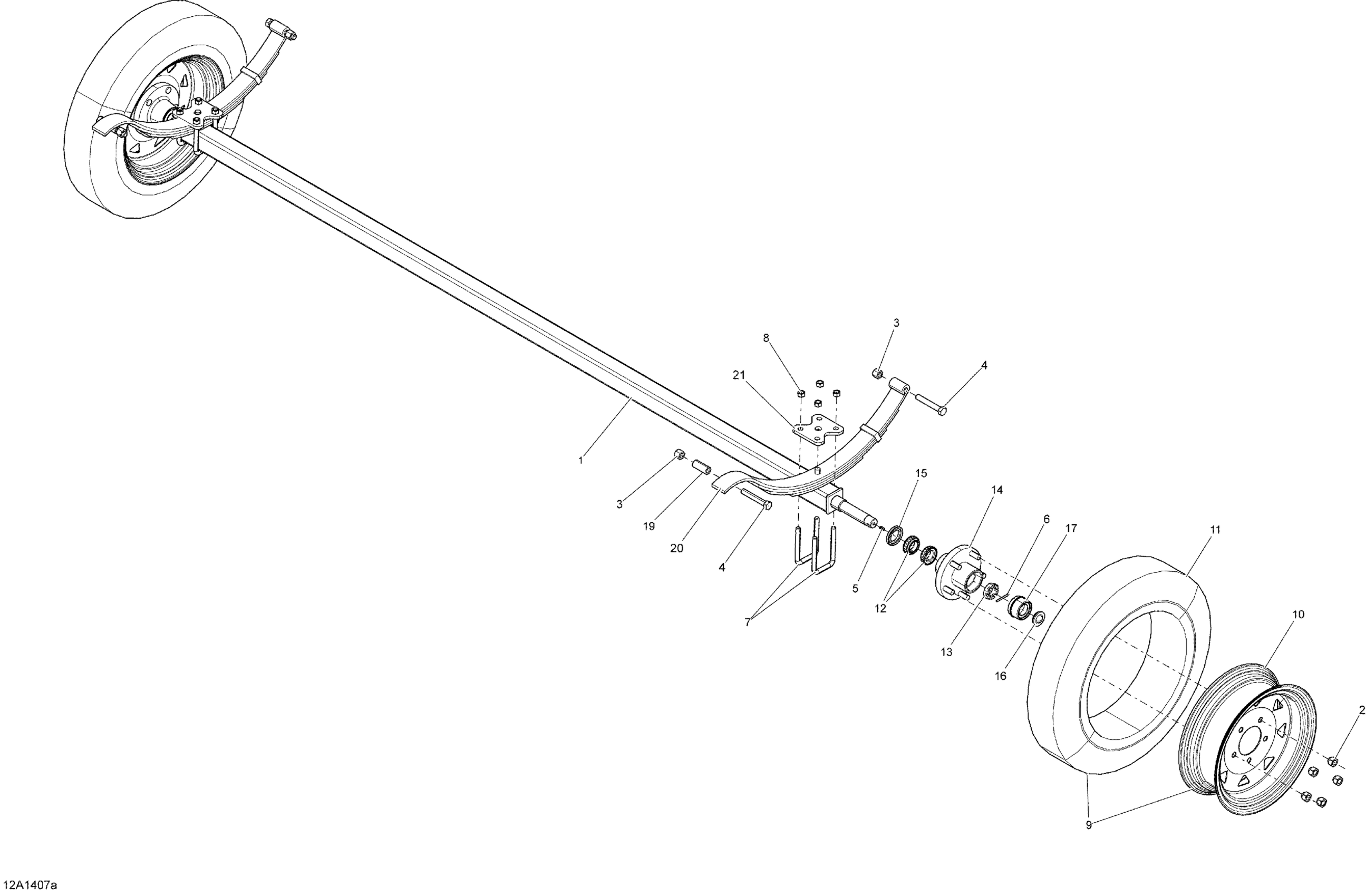

Sea-doo Trailer Move II_Sea-Doo, 2014 05- Propulsion Spark_12A1407a Diagram
#
Description
Price
1
AXLE ASSY - Call your local BRP dealership This part replaces 271001871.
262000300
Unavailable
2
NUT - Call your local BRP dealership
269800122
$3.29
3
NYLON LOCK NUT, 1/2''-13 - Call your local BRP dealership | Spring Leaf
269800479
$1.09
4
HEX. BOLT, 1/2''-13 X 3 1/4'' - Call your local BRP dealership | Spring Leaf
269800483
Unavailable
5
GREASE FITTING - Call your local BRP dealership
269800485
Unavailable
6
SPLIT SAFETY PIN - Call your local BRP dealership
269800486
$1.19
7
U-BOLT - Call your local BRP dealership | XL1500
269800490
$16.49
8
CENTER LOCK NUT 7/16'' - Call your local BRP dealership | XL1500
269800492
Unavailable
9
WHEEL ASS'Y 12 - Call your local BRP dealership | Galvanized Model, Includes 1 to 2
295100409
$119.99
10
Steel Galvanized Rim 12'' | Galvanized Model
271001677
$76.99
10
RIM_12 INCH PAINTED - Call your local BRP dealership | Black Model
262000061
$73.99
11
TIRE_4,80X12B - Call your local BRP dealership
271001678
$91.99
12
CONE BEARING - Call your local BRP dealership
271001821
$14.49
13
CROWN NUT, 1-14 NC - Call your local BRP dealership
271001822
$7.99
14
HUB 5 STUDS - Call your local BRP dealership | Spring Leaf
271001823
$75.99
15
SEAL JOINT - Call your local BRP dealership
271001824
$4.99
16
RUBBER DUST CAP - Call your local BRP dealership
271001825
Unavailable
17
DUST CAP - Call your local BRP dealership | Spring Leaf
271001826
$4.99
19
BUSHING - Call your local BRP dealership | Spring Leaf
279000229
Unavailable
20
4 SLIP SPRING - Call your local BRP dealership | Spring Leaf
279000231
Unavailable
21
SPRING PAD - Call your local BRP dealership | XL1500
279000232
$22.99
