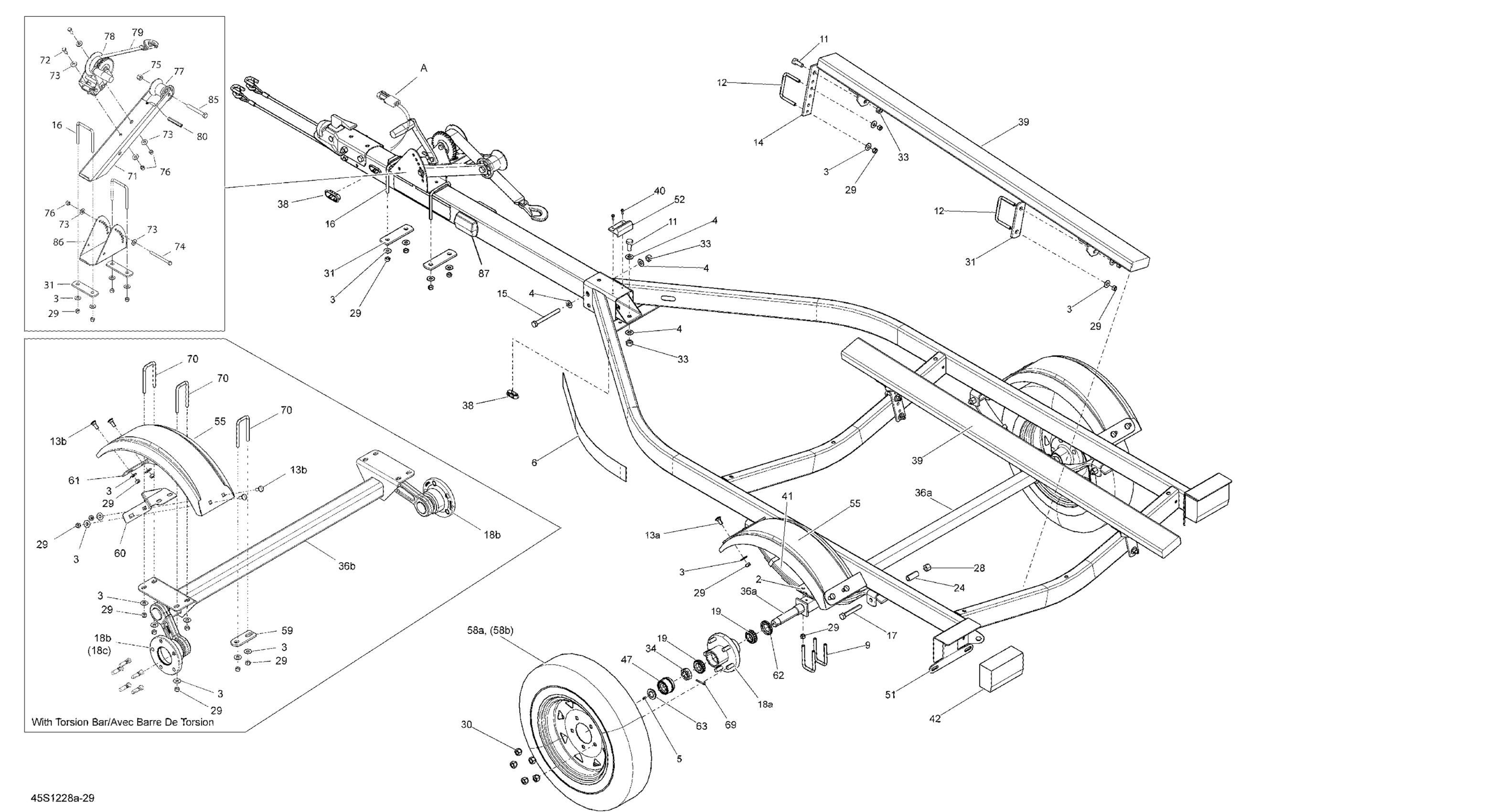

Sea-doo Trailer (MOVE I) STD/Hybrid 2012 09- Frame MOVE I STD Diagram
#
2
SPRING PAD - Call your local BRP dealership | Spring Leaf
279000230
Unavailable
3
FLAT WASHER - Call your local BRP dealership
269800300
Unavailable
3
FLAT WASHER - Call your local BRP dealership
269800300
Unavailable
4
WASHER 1/2'' - Call your local BRP dealership This part replaces 269800139.
269800309
$6.79
5
GREASE FITTING - Call your local BRP dealership
269800485
Unavailable
6
SEA-DOO DECAL - Call your local BRP dealership
219904018
Unavailable
9
U-BOLT 3/8''-16 X 1 9/16'' X 3-1/4'' - Call your local BRP dealership | Spring Leaf
269800484
$13.99
11
Hex. Bolt, 1/2''-13 X 1 1/4''
269800481
Unavailable
12
U-BOLT 3/8''-16 X 3-1/8'' X 2-3/8'' - Call your local BRP dealership
269800480
$9.29
14
BUNK BRACKET - Call your local BRP dealership
262000216
Unavailable
15
HEX. BOLT 1/2'' - 13 X 4 1/2'' - Call your local BRP dealership
269800307
Unavailable
16
U BOLT - Call your local BRP dealership This part replaces 269800400.
269800138
$11.49
16
U BOLT - Call your local BRP dealership This part replaces 269800400.
269800138
$11.49
17
HEX. BOLT, 1/2''-13 X 3 1/4'' - Call your local BRP dealership | Spring Leaf
269800483
Unavailable
19
CONE BEARING - Call your local BRP dealership
271001821
$14.49
24
BUSHING - Call your local BRP dealership | Spring Leaf
279000229
Unavailable
28
NYLON LOCK NUT, 1/2''-13 - Call your local BRP dealership | Spring Leaf
269800479
$1.09
29
CENTERLOCK NUT - Call your local BRP dealership
269800299
Unavailable
30
NUT - Call your local BRP dealership
269800122
$3.29
31
BAKING PLATE - Call your local BRP dealership
269800175
Unavailable
33
CENTERLOCK NUT 1/2-1 - Call your local BRP dealership
269800310
$1.09
34
CROWN NUT, 1-14 NC - Call your local BRP dealership
271001822
$7.99
38
PROTECTOR - Call your local BRP dealership
262000050
$7.49
39
BUNK ASS'Y - Call your local BRP dealership
262000217
Unavailable
40
SCREW - Call your local BRP dealership
269800136
Unavailable
41
4 SLIP SPRING - Call your local BRP dealership | Spring Leaf
279000231
Unavailable
42
LH REAR LIGHT - Call your local BRP dealership | Includes 2a to 2b, ADV. TEC 1, iCatch
278002479
Unavailable
42
RH REAR LIGHT - Call your local BRP dealership | Includes 3a to 3b, ADV. TEC 1, iCatch
278002480
Unavailable
47
DUST CAP - Call your local BRP dealership | Spring Leaf
271001826
$4.99
47
HUB DUST CAP - Call your local BRP dealership This part replaces 296000320.
271001851
Unavailable
51
SUPPORT - Call your local BRP dealership
269800142
Unavailable
52
KEEL PROTECTOR - Call your local BRP dealership
269800173
Unavailable
55
WHEEL FENDER, GREY - Call your local BRP dealership
262000042
Unavailable
55
WHEEL FENDER, BLACK - Call your local BRP dealership
262000242
Unavailable
59
Baking Plate
291003780
Unavailable
60
LH WING BRACKET, GALVANIZE - Call your local BRP dealership
291003552
Unavailable
60
LH WING BRACKET, BLACK - Call your local BRP dealership
291003554
Unavailable
61
RH WING BRACKET, GALVANIZE - Call your local BRP dealership
291003553
Unavailable
61
RH WING BRACKET, BLACK - Call your local BRP dealership
291003555
Unavailable
62
SEAL JOINT - Call your local BRP dealership
271001824
$4.99
63
RUBBER DUST CAP - Call your local BRP dealership
271001825
Unavailable
69
SPLIT SAFETY PIN - Call your local BRP dealership
269800486
$1.19
70
U-BOLT 3/8''-16 X 1 9/16'' X 4'' - Call your local BRP dealership | With Torsion Bar
269800487
Unavailable
71
MOUNT CHANNEL SUPPORT, GALV - Call your local BRP dealership | Galvanized Model
269800076
Unavailable
71
SUPPORT_WINCH PAINTED - Call your local BRP dealership | Black Model This part replaces 269800177.
269801298
Unavailable
72
HEX. CAP SCREW 3/8 -16 X 1 - Call your local BRP dealership
269800305
$1.09
73
FLAT WASHER - Call your local BRP dealership
269800300
Unavailable
74
HEX. BOLT 3/8''-16 X 4 1/2'' - Call your local BRP dealership
269800317
$13.49
75
CENTERLOCK NUT 1/2-1 - Call your local BRP dealership
269800310
$1.09
76
CENTERLOCK NUT - Call your local BRP dealership
269800299
Unavailable
76
LOCK NUT - Call your local BRP dealership
269800091
Unavailable
77
BOW ROLLER - Call your local BRP dealership
269800169
$20.99
78
WINCH - Call your local BRP dealership
269800078
Unavailable
79
WINCH STRAP - Call your local BRP dealership
296000328
Unavailable
80
GROMMET - Call your local BRP dealership
296000429
$8.69
85
HEX. BOLT 1/2''-13 X 4'' - Call your local BRP dealership
269800401
Unavailable
86
WINCH SUPPORT, BLACK - Call your local BRP dealership | Black Model
269800178
Unavailable
86
ADJUSTABLE WINCH SUPPORT GALVANIZED - Call your local BRP dealership | Galvanized Model This part replaces 269800074.
269800677
Unavailable
87
LATERAL LIGHT - Call your local BRP dealership This part replaces 278002481.
278002887
$16.49
13a
CARRIAGE BOLT 3/8''-16 X 7/8'' - Call your local BRP dealership
269800311
Unavailable
13b
Carriage Bolt
269800186
Unavailable
18a
HUB 5 STUDS - Call your local BRP dealership | Spring Leaf
271001823
$75.99
18b
HUB ASS'Y - Call your local BRP dealership | Includes 4 to 5
296000319
Unavailable
18c
HUB DUST CAP - Call your local BRP dealership This part replaces 296000320.
271001851
Unavailable
36a
SUSPENSION - Call your local BRP dealership | Spring Leaf This part replaces 271001831.
262000291
$409.99
36b
SUSPENSION AXLE - Call your local BRP dealership | With Torsion Bar
262000222
Unavailable
58a
TIRE_4,80X12B - Call your local BRP dealership
271001678
$91.99
58b
RIM_12 INCH PAINTED - Call your local BRP dealership | Black Model
262000061
$73.99
58b
Steel Galvanized Rim 12'' | Galvanized Model
271001677
$76.99
A
WIRING HARNESS - Call your local BRP dealership
278002884
Unavailable
