- Trailer (MOVE I) STD/Hybrid 2012
09- Frame MOVE I Hybrid

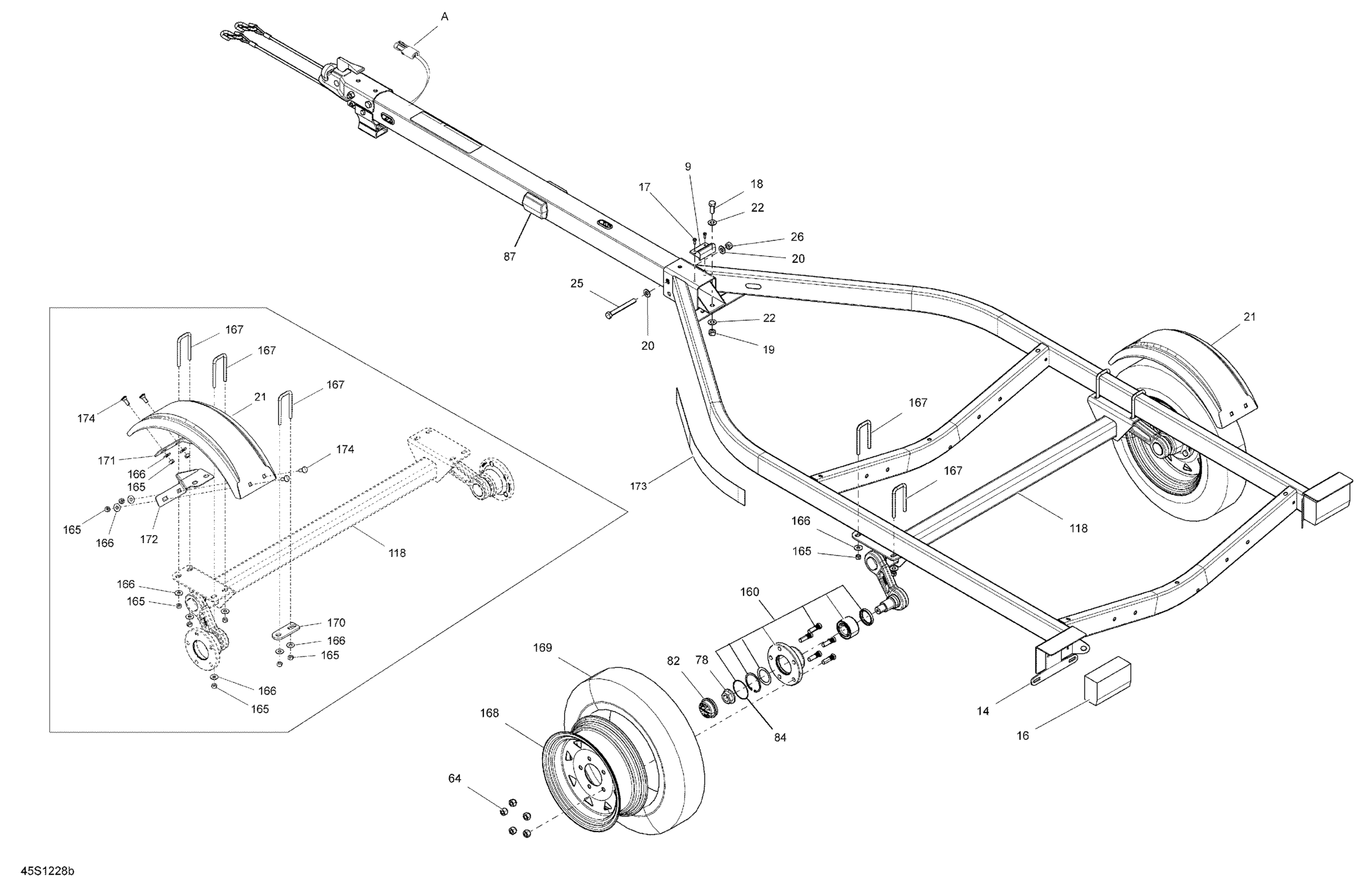

Sea-doo Trailer (MOVE I) STD/Hybrid 2012 09- Frame MOVE I Hybrid Diagram
#
Description
Price
9
KEEL PROTECTOR - Call your local BRP dealership
269800173
Unavailable
14
SUPPORT - Call your local BRP dealership
269800142
Unavailable
16
LH REAR LIGHT - Call your local BRP dealership | Includes 2a to 2b, ADV. TEC 1, iCatch
278002479
Unavailable
16
RH REAR LIGHT - Call your local BRP dealership | Includes 3a to 3b, ADV. TEC 1, iCatch
278002480
Unavailable
17
SCREW - Call your local BRP dealership
269800136
Unavailable
18
HEX. BOLT 1/2''-13 X 1-1/4'' - Call your local BRP dealership This part replaces 269800137.
269800308
Unavailable
19
CENTERLOCK NUT 1/2-1 - Call your local BRP dealership
269800310
$1.09
20
WASHER 1/2'' - Call your local BRP dealership This part replaces 269800139.
269800309
$6.79
21
WHEEL FENDER, GREY - Call your local BRP dealership
262000042
Unavailable
21
WHEEL FENDER, BLACK - Call your local BRP dealership
262000242
Unavailable
22
WASHER 1/2'' - Call your local BRP dealership This part replaces 269800139.
269800309
$6.79
25
HEX. BOLT 1/2'' - 13 X 4 1/2'' - Call your local BRP dealership
269800307
Unavailable
26
CENTERLOCK NUT 1/2-1 - Call your local BRP dealership
269800310
$1.09
64
NUT - Call your local BRP dealership
269800122
$3.29
78
CROWN NUT, 1-14 NC - Call your local BRP dealership
271001822
$7.99
82
HUB DUST CAP - Call your local BRP dealership This part replaces 296000320.
271001851
Unavailable
84
O-RING - Call your local BRP dealership | With Torsion Bar
271001852
Unavailable
87
LATERAL LIGHT - Call your local BRP dealership This part replaces 278002481.
278002887
$16.49
118
SUSPENSION AXLE - Call your local BRP dealership | With Torsion Bar
262000222
Unavailable
160
HUB ASS'Y - Call your local BRP dealership | Includes 4 to 5
296000319
Unavailable
165
CENTERLOCK NUT - Call your local BRP dealership
269800299
Unavailable
166
FLAT WASHER - Call your local BRP dealership
269800300
Unavailable
167
U BOLT - Call your local BRP dealership
269800464
$13.99
168
Steel Galvanized Rim 12'' | Galvanized Model
271001677
$76.99
168
RIM_12 INCH PAINTED - Call your local BRP dealership | Black Model
262000061
$73.99
169
TIRE_4,80X12B - Call your local BRP dealership
271001678
$91.99
170
Baking Plate
291003780
Unavailable
171
RH WING BRACKET, GALVANIZE - Call your local BRP dealership
291003553
Unavailable
171
RH WING BRACKET, BLACK - Call your local BRP dealership
291003555
Unavailable
172
LH WING BRACKET, GALVANIZE - Call your local BRP dealership
291003552
Unavailable
172
LH WING BRACKET, BLACK - Call your local BRP dealership
291003554
Unavailable
173
SEA-DOO DECAL - Call your local BRP dealership
219904018
Unavailable
174
Carriage Bolt
269800186
Unavailable
A
WIRING HARNESS - Call your local BRP dealership
278002884
Unavailable
