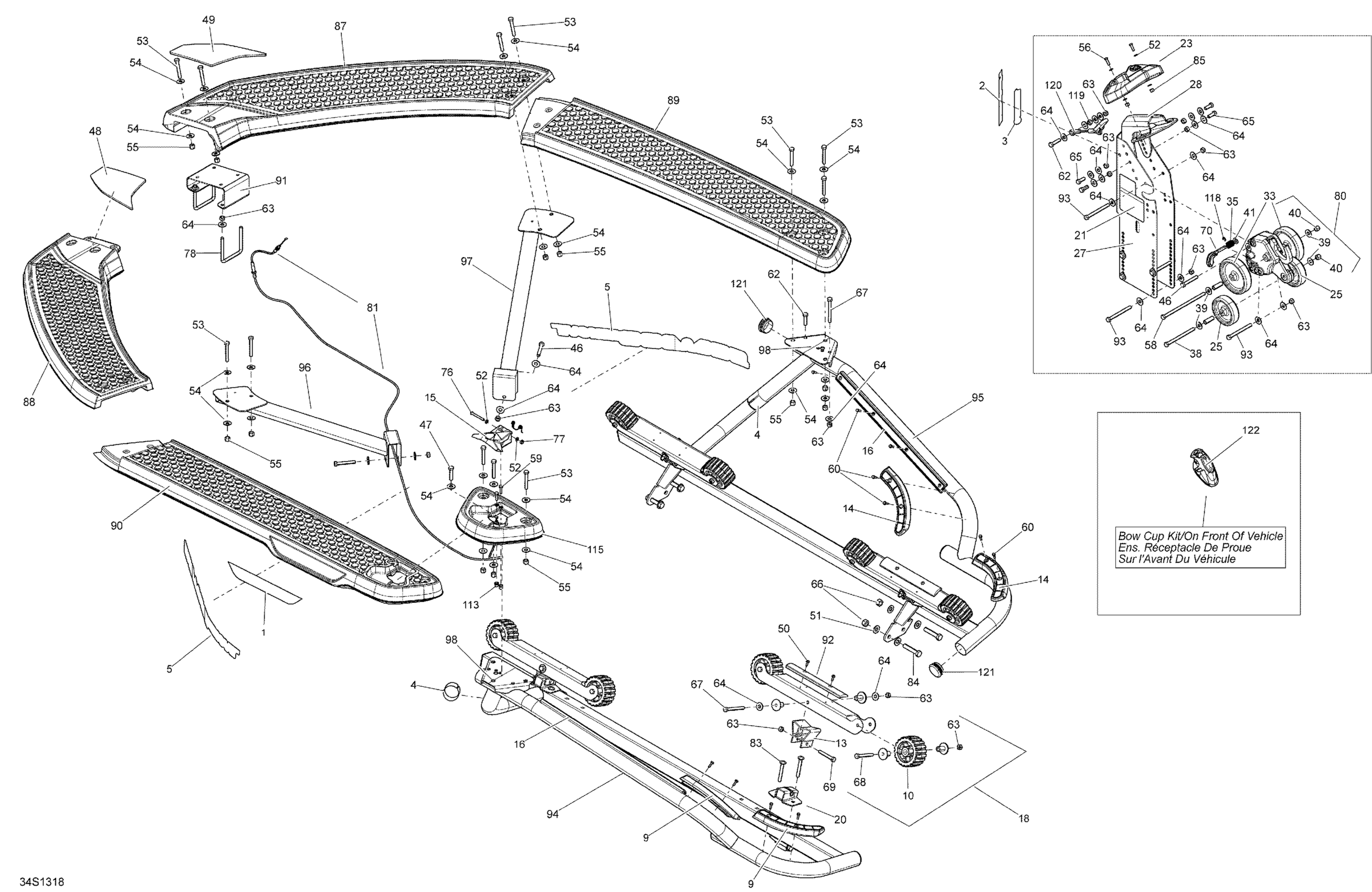

Sea-doo Trailer (MOVE I) iCatch-Walkpad 2013 09- Body Diagram
#
1
DECAL SEA-DOO MOVE - Call your local BRP dealership
219904019
Unavailable
2
SD DECAL ICATCH - Call your local BRP dealership This part replaces 219903236.
219904008
Unavailable
3
SD DECAL ADVANCE TECH - Call your local BRP dealership This part replaces 219903237.
219904009
Unavailable
4
Decal Water Level
219904017
Unavailable
5
SEA-DOO DECAL - Call your local BRP dealership
219904018
Unavailable
9
LH ELBOW PROTECTOR - Call your local BRP dealership
262000024
Unavailable
10
WHEEL - Call your local BRP dealership
262000028
Unavailable
14
RH Elbow Protector
262000057
Unavailable
15
HANDLE ASS'Y - Call your local BRP dealership
262000128
Unavailable
16
Protector
262000163
Unavailable
18
FRONT ROLLER BUNK - Call your local BRP dealership | Includes 14a to 19, Galvanised
262000170
Unavailable
18
FRONT ROLLER BUNK - Call your local BRP dealership | Includes 14a to 19, Black
262000171
Unavailable
18
Rear Roller Bunk | Includes 14b to 21, Galvanised
262000172
Unavailable
18
REAR ROLLER BUNK - Call your local BRP dealership | Includes 14b to 21, Black
262000173
Unavailable
19
END CAP - Call your local BRP dealership
262000175
Unavailable
20
Pivot | Galvanised
262000184
Unavailable
21
Warning Label
262000192
Unavailable
23
BUMPER - Call your local BRP dealership
269800003
Unavailable
25
CATCHER CASING - Call your local BRP dealership | Includes 81 to 94
269800399
Unavailable
27
Catcher Base Support | Galvanized Model
269800011
Unavailable
27
CATCHER BASE SUPPORT - Call your local BRP dealership | Black Model
269800182
Unavailable
28
BUMPER SUPPORT - Call your local BRP dealership | Galvanized Model
269800016
Unavailable
28
Bumper Support | Black Model
269800183
Unavailable
33
CATCH ROLLER, LARGE - Call your local BRP dealership
269800058
Unavailable
35
SPRING - Call your local BRP dealership
269800071
Unavailable
38
Hexagonal Bolt 3/8 X 5
269800088
Unavailable
39
WASHER 7/16 - Call your local BRP dealership
269800089
Unavailable
40
LOCK NUT - Call your local BRP dealership
269800091
Unavailable
41
WASHER - Call your local BRP dealership
269800092
Unavailable
43
Hex. Thin Lock Nut 1/4''-20
269800094
Unavailable
46
HEX. CAP BOLT 3/8''-16 X 2 1/2'' - Call your local BRP dealership This part replaces 269800106.
269800316
Unavailable
47
Hexagonal Head Bolt 3/8 X 1 3/4
269800107
Unavailable
48
Carpet
269800110
Unavailable
49
CARPET - Call your local BRP dealership
269800111
Unavailable
50
SCREW - Call your local BRP dealership
269800136
Unavailable
51
WASHER 1/2'' - Call your local BRP dealership This part replaces 269800139.
269800309
$6.79
52
Washer
269800150
$2.82
53
Hexagonal Head Bolt 3/8 X 2 1/2
269800153
Unavailable
54
Washer 3/8
269800154
Unavailable
55
Hex. Lock Nut 3/8 | iCATCH Model only
269800155
Unavailable
56
Button Head Screw
269800157
Unavailable
58
Hexagonal Bolt 3/8 X 7 1/2
269800159
Unavailable
59
HEX. CAP BOLT 1/4''-20 X 1'' - Call your local BRP dealership
269800318
Unavailable
60
Screw
269800200
Unavailable
62
HEXAGONAL BOLT - Call your local BRP dealership
269800298
Unavailable
63
CENTERLOCK NUT - Call your local BRP dealership
269800299
Unavailable
64
FLAT WASHER - Call your local BRP dealership
269800300
Unavailable
65
HEX. CAP SCREW 3/8 -16 X 1 - Call your local BRP dealership
269800305
$1.09
66
CENTERLOCK NUT 1/2-1 - Call your local BRP dealership
269800310
$1.09
67
HEX. BOLT 3/8''-16 X 3 1/2'' - Call your local BRP dealership
269800314
Unavailable
68
HEX. BOLT - Call your local BRP dealership
269800315
Unavailable
69
HEX. CAP BOLT 3/8''-16 X 2 1/2'' - Call your local BRP dealership This part replaces 269800106.
269800316
Unavailable
70
Locking HandleBar
269800365
$17.64
78
U-BOLT 3/8''-16 X 3-1/8'' X 3-3/4'' - Call your local BRP dealership
269800403
Unavailable
80
CATCHER CASING - Call your local BRP dealership
269800436
Unavailable
81
CABLE - Call your local BRP dealership
269800437
Unavailable
83
CARRIAGE BOLT - Call your local BRP dealership
269800461
Unavailable
84
HEX. BOLT - Call your local BRP dealership
269800462
Unavailable
85
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership
212000005
Unavailable
87
RH Front Walkpad
291002828
Unavailable
88
LH FRONT WALKPAD - Call your local BRP dealership
291002829
Unavailable
89
RH Rear Walkpad
291002830
Unavailable
90
LH Rear Walkpad
291002831
Unavailable
91
Bracket | Galvanized Model
291002973
Unavailable
92
Protector
291003015
Unavailable
93
HEX. CAP BOLT 3/8''-16 X 4'' - Call your local BRP dealership
291003301
$4.00
94
LH Guide | Galvanised
291003548
Unavailable
94
LH Guide | Black
291003550
Unavailable
95
RH Guide | Galvanised
291003549
Unavailable
95
RH Guide | Black
291003551
Unavailable
96
LH Bracket, Galvanized | Galvanized
291003542
Unavailable
96
LH Bracket, Black | Black
291003546
Unavailable
97
RH BRACKET, GALVANIZED - Call your local BRP dealership | Galvanized
291003544
Unavailable
97
RH Bracket, Black | Black
291003547
Unavailable
98
Plate
291003628
Unavailable
98
Plate | iCATCH Model only
291003629
Unavailable
113
Nut
291003652
$6.20
115
Lever Box | iCATCH Model only
291003685
Unavailable
118
Circlip 7mm
293370010
$11.99
119
NUT 3/8''-16 - Call your local BRP dealership
293650215
$0.90
120
Security Cable
705202300
$33.99
121
CAP - Call your local BRP dealership
705202886
Unavailable
122
BOW CUP KIT - Call your local BRP dealership
295100586
Unavailable
