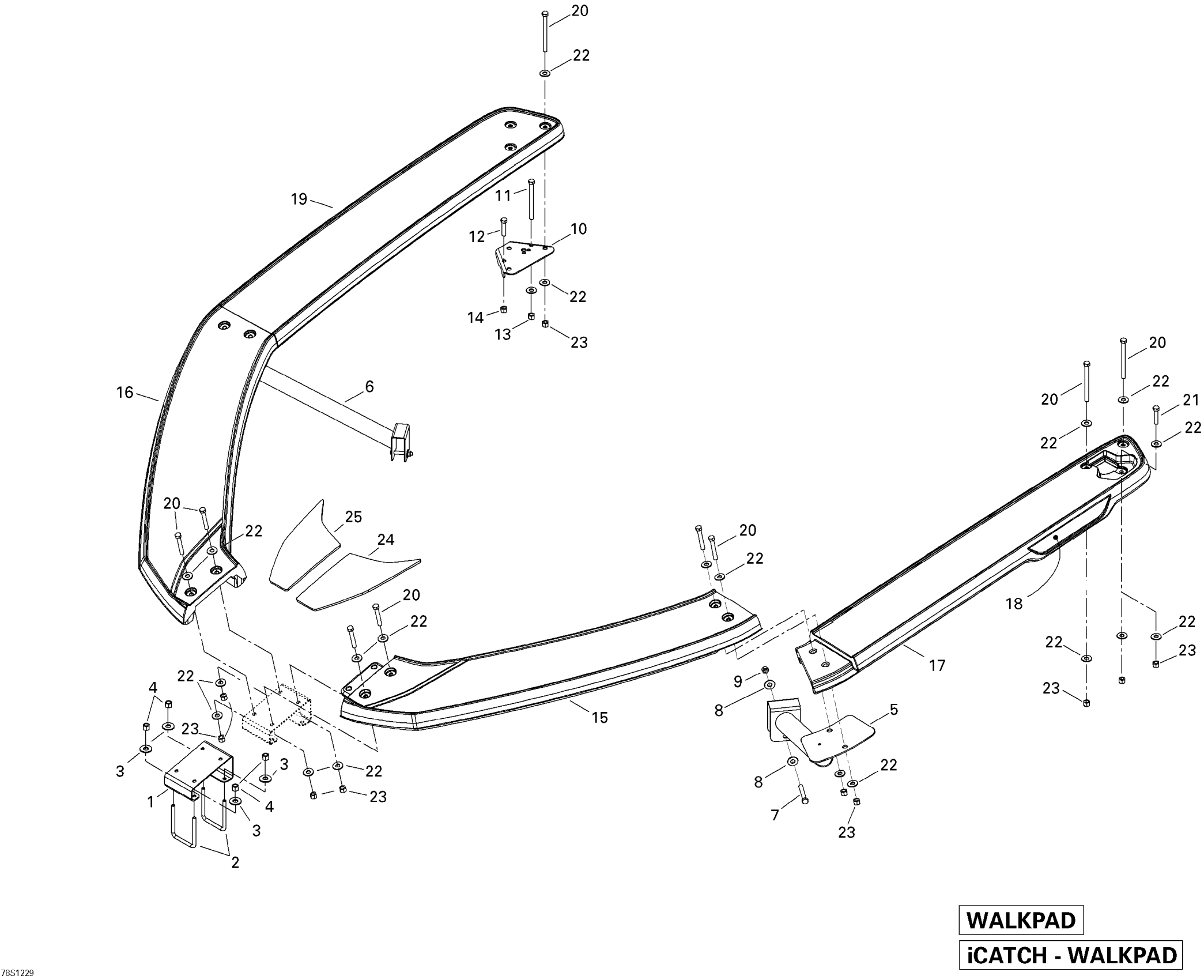

Sea-doo Trailer (MOVE I) iCatch-Walkpad 2012 09- Walkpad Diagram
#
Description
Price
1
Bracket | Galvanized Model
291002973
Unavailable
2
U-BOLT 3/8''-16 X 3-1/8'' X 3-3/4'' - Call your local BRP dealership
269800403
Unavailable
3
FLAT WASHER - Call your local BRP dealership
269800300
Unavailable
4
CENTERLOCK NUT - Call your local BRP dealership
269800299
Unavailable
5
LH Bracket, Galvanized | Galvanized
291003542
Unavailable
5
LH Bracket, Black | Black
291003546
Unavailable
6
RH BRACKET, GALVANIZED - Call your local BRP dealership | Galvanized
291003544
Unavailable
6
RH Bracket, Black | Black
291003547
Unavailable
7
HEX. CAP BOLT 3/8''-16 X 2 1/2'' - Call your local BRP dealership This part replaces 269800106.
269800316
Unavailable
8
FLAT WASHER - Call your local BRP dealership
269800300
Unavailable
9
CENTERLOCK NUT - Call your local BRP dealership
269800299
Unavailable
10
Plate
291003628
Unavailable
11
HEX. BOLT 3/8''-16 X 3 1/2'' - Call your local BRP dealership
269800314
Unavailable
12
HEXAGONAL BOLT - Call your local BRP dealership
269800298
Unavailable
13
FLAT WASHER - Call your local BRP dealership
269800300
Unavailable
14
CENTERLOCK NUT - Call your local BRP dealership
269800299
Unavailable
15
LH FRONT WALKPAD - Call your local BRP dealership
291002829
Unavailable
16
RH Front Walkpad
291002828
Unavailable
17
LH Rear Walkpad
291002831
Unavailable
18
DECAL SEA-DOO MOVE - Call your local BRP dealership
219904019
Unavailable
19
RH Rear Walkpad
291002830
Unavailable
20
Hexagonal Head Bolt 3/8 X 2 1/2
269800153
Unavailable
21
Hexagonal Head Bolt 3/8 X 1 3/4
269800107
Unavailable
22
Washer 3/8
269800154
Unavailable
23
Hex. Lock Nut 3/8 | iCATCH Model only
269800155
Unavailable
24
Carpet
269800110
Unavailable
25
CARPET - Call your local BRP dealership
269800111
Unavailable
