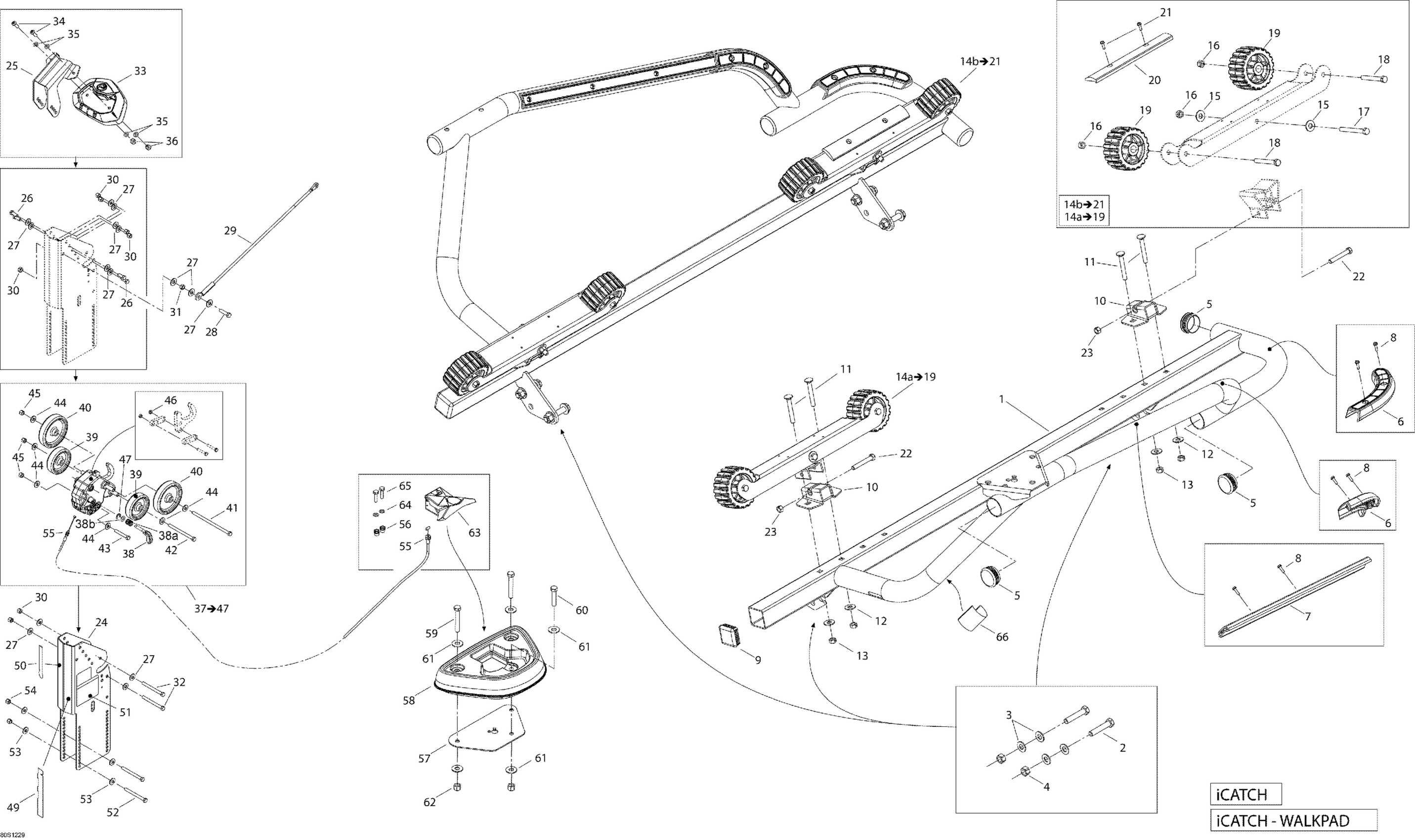

Sea-doo Trailer (MOVE I) iCatch-Walkpad 2012 09- iCATCH Diagram
#
1
LH Guide | Galvanised
291003548
Unavailable
1
LH Guide | Black
291003550
Unavailable
1
RH Guide | Galvanised
291003549
Unavailable
1
RH Guide | Black
291003551
Unavailable
2
HEX. BOLT - Call your local BRP dealership
269800462
Unavailable
3
WASHER 1/2'' - Call your local BRP dealership This part replaces 269800139.
269800309
$6.79
4
CENTERLOCK NUT 1/2-1 - Call your local BRP dealership
269800310
$1.09
5
CAP - Call your local BRP dealership
705202886
Unavailable
6
LH ELBOW PROTECTOR - Call your local BRP dealership
262000024
Unavailable
6
RH Elbow Protector
262000057
Unavailable
7
Protector
262000163
Unavailable
8
Screw
269800200
Unavailable
9
END CAP - Call your local BRP dealership
262000175
Unavailable
10
Pivot | Galvanised
262000184
Unavailable
10
Pivot | Black
262000185
Unavailable
11
CARRIAGE BOLT - Call your local BRP dealership
269800461
Unavailable
12
FLAT WASHER - Call your local BRP dealership
269800300
Unavailable
13
CENTERLOCK NUT - Call your local BRP dealership
269800299
Unavailable
15
FLAT WASHER - Call your local BRP dealership
269800300
Unavailable
16
CENTERLOCK NUT - Call your local BRP dealership
269800299
Unavailable
17
HEX. BOLT 3/8''-16 X 3 1/2'' - Call your local BRP dealership
269800314
Unavailable
18
HEX. BOLT - Call your local BRP dealership
269800315
Unavailable
19
WHEEL - Call your local BRP dealership
262000028
Unavailable
20
Protector
291003015
Unavailable
21
SCREW - Call your local BRP dealership
269800136
Unavailable
22
HEX. CAP BOLT 3/8''-16 X 2 1/2'' - Call your local BRP dealership This part replaces 269800106.
269800316
Unavailable
23
CENTERLOCK NUT - Call your local BRP dealership
269800299
Unavailable
24
Catcher Base Support | Galvanized Model
269800011
Unavailable
24
CATCHER BASE SUPPORT - Call your local BRP dealership | Black Model
269800182
Unavailable
25
BUMPER SUPPORT - Call your local BRP dealership | Galvanized Model
269800016
Unavailable
25
Bumper Support | Black Model
269800183
Unavailable
26
HEX. CAP SCREW 3/8 -16 X 1 - Call your local BRP dealership
269800305
$1.09
27
FLAT WASHER - Call your local BRP dealership
269800300
Unavailable
28
HEXAGONAL BOLT - Call your local BRP dealership
269800298
Unavailable
29
Security Cable
705202300
$33.99
30
CENTERLOCK NUT - Call your local BRP dealership
269800299
Unavailable
31
NUT 3/8''-16 - Call your local BRP dealership
293650215
$0.90
32
HEX. CAP BOLT 3/8''-16 X 4'' - Call your local BRP dealership
291003301
$4.00
33
BUMPER - Call your local BRP dealership
269800003
Unavailable
34
Button Head Screw
269800157
Unavailable
35
Washer
269800150
$2.82
36
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership
212000005
Unavailable
37
CATCHER CASING - Call your local BRP dealership
269800436
Unavailable
38
Locking HandleBar
269800365
$17.64
39
CATCHER CASING - Call your local BRP dealership | Includes 81 to 94
269800399
Unavailable
40
CATCH ROLLER, LARGE - Call your local BRP dealership
269800058
Unavailable
41
Hexagonal Bolt 3/8 X 7 1/2
269800159
Unavailable
42
Hexagonal Bolt 3/8 X 5
269800088
Unavailable
43
HEX. CAP BOLT 3/8''-16 X 2 1/2'' - Call your local BRP dealership This part replaces 269800106.
269800316
Unavailable
44
WASHER 7/16 - Call your local BRP dealership
269800089
Unavailable
45
LOCK NUT - Call your local BRP dealership
269800091
Unavailable
46
Hex. Thin Lock Nut 1/4''-20
269800094
Unavailable
47
Circlip 7mm
293370010
$11.99
49
SD DECAL ICATCH - Call your local BRP dealership This part replaces 219903236.
219904008
Unavailable
50
SD DECAL ADVANCE TECH - Call your local BRP dealership This part replaces 219903237.
219904009
Unavailable
51
Warning Label
262000192
Unavailable
52
HEX. CAP BOLT 3/8''-16 X 4'' - Call your local BRP dealership
291003301
$4.00
53
FLAT WASHER - Call your local BRP dealership
269800300
Unavailable
54
CENTERLOCK NUT - Call your local BRP dealership
269800299
Unavailable
55
CABLE - Call your local BRP dealership
269800437
Unavailable
56
Nut
291003652
$6.20
57
Plate | iCATCH Model only
291003629
Unavailable
58
Lever Box | iCATCH Model only
291003685
Unavailable
59
Hexagonal Head Bolt 3/8 X 2 1/2
269800153
Unavailable
60
Hexagonal Head Bolt 3/8 X 1 3/4
269800107
Unavailable
61
Washer 3/8
269800154
Unavailable
62
Hex. Lock Nut 3/8 | iCATCH Model only
269800155
Unavailable
63
HANDLE ASS'Y - Call your local BRP dealership
262000128
Unavailable
64
Washer
269800150
$2.82
65
HEX. CAP BOLT 1/4''-20 X 1'' - Call your local BRP dealership
269800318
Unavailable
66
Decal Water Level
219904017
Unavailable
14a
FRONT ROLLER BUNK - Call your local BRP dealership | Includes 14a to 19, Galvanised
262000170
Unavailable
14a
FRONT ROLLER BUNK - Call your local BRP dealership | Includes 14a to 19, Black
262000171
Unavailable
14b
Rear Roller Bunk | Includes 14b to 21, Galvanised
262000172
Unavailable
14b
REAR ROLLER BUNK - Call your local BRP dealership | Includes 14b to 21, Black
262000173
Unavailable
38a
SPRING - Call your local BRP dealership
269800071
Unavailable
38b
WASHER - Call your local BRP dealership
269800092
Unavailable
