- Trailer Click and GO (Europe Only), 2017
Guide Frame

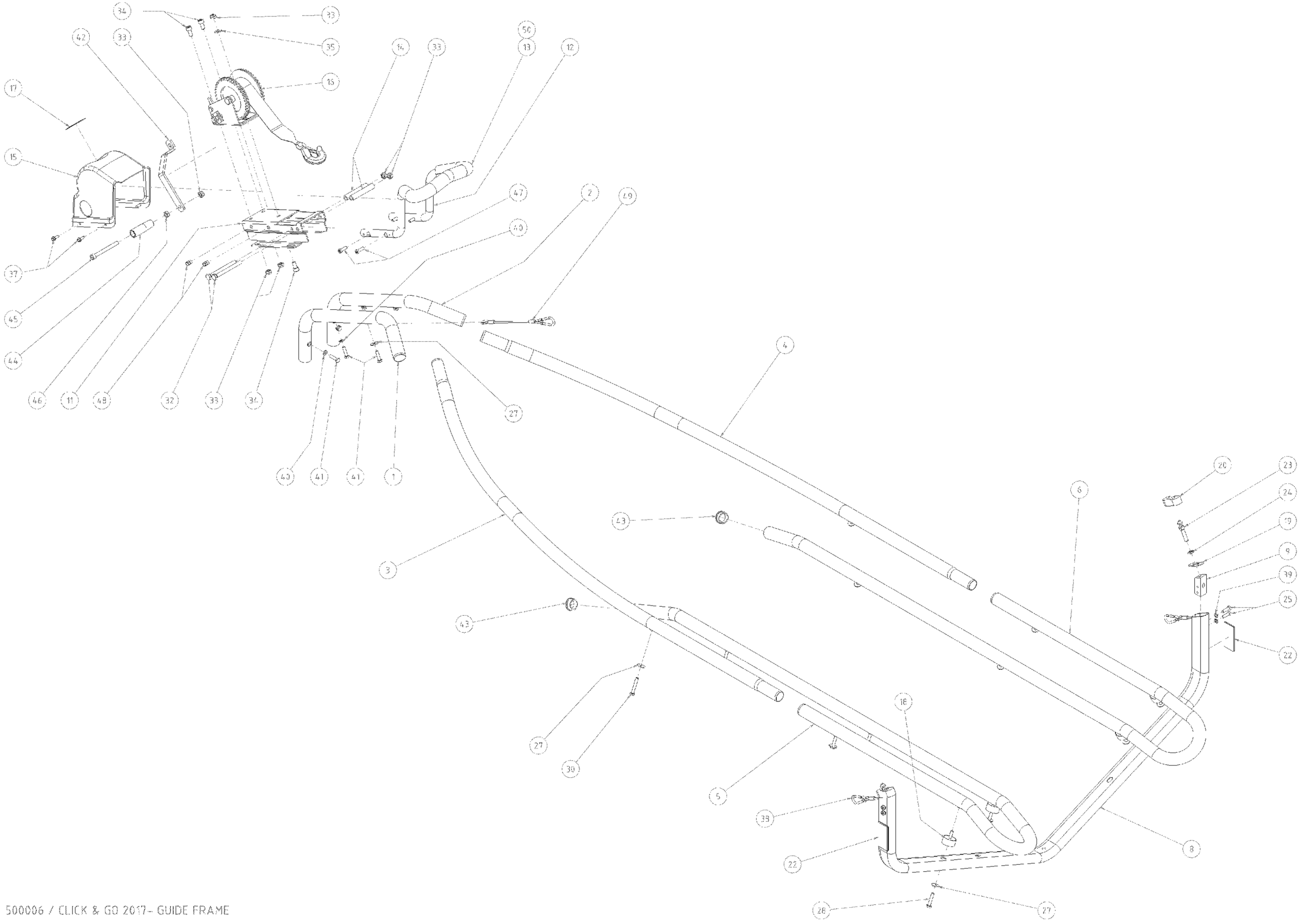

Sea-doo Trailer Click and GO (Europe Only), 2017 Guide Frame Diagram
#
1
Outer Tube [front left]
619590457
Unavailable
2
Outer Tube [front right]
619590458
Unavailable
3
Outer Tube [left]
619590455
Unavailable
4
Outer Tube [right]
619590456
Unavailable
5
Underrun Protection
619 590 453
Unavailable
6
Inner Tube [right]
619590454
Unavailable
8
Crossbeam looking FZV
619590433
Unavailable
9
Mounting Bracket
619590441
Unavailable
11
Winsch plate
619590439
Unavailable
12
Front guard
619590435
Unavailable
13
Softdock Front Guard
619590475
Unavailable
14
Spacer
619590366
Unavailable
15
Winsch Cover
619590367
Unavailable
16
Winch
619590368
Unavailable
17
BRP Logo 68mm
516008739
$16.99
18
Rubber Buffer
619590472
Unavailable
19
Washer
619590442
Unavailable
20
Soft Washer
619590468
Unavailable
22
Reflector Amber
619 590 384
Unavailable
23
Locking Stud
619590478
Unavailable
24
Nut low M10
619590517
Unavailable
25
Torx Screw M8 x 25
619590499
Unavailable
27
Washer Ø8,4 / 16 / 1,6
619590503
Unavailable
27
Washer Ø8,4 / 24 / 2
619 590 504
Unavailable
28
Hex. Cap Screw M8 x 40
619590487
Unavailable
30
Hex. Cap Screw M8 x 50
619590488
Unavailable
32
Hex. Cap Screw M10 x 110
619590372
Unavailable
33
Elastic Locking Nut M10
619 590 359
Unavailable
34
Allen screw M10 x 20 FZB
619590524
Unavailable
35
Washer Ø11 / 22 / 2
619590375
Unavailable
37
Drill screw 6,3 x 19 FZB
619590428
Unavailable
38
Safety Cable
619590469
Unavailable
39
Lockingwasher Ø8,4
619590507
Unavailable
41
Hex. Cap Screw M8 x 30
619590486
Unavailable
42
Winch Handle
619590562
Unavailable
43
Cap Ø 38
619590483
Unavailable
44
Handle
619590377
Unavailable
45
Allen screw M10 x 100 FZB
619590525
Unavailable
46
Nut M10 FZB
619590526
Unavailable
47
Torx Screw M8 x 25
619590499
Unavailable
48
Threaded Inserts Steel Open Hex. M8
619590529
Unavailable
49
Saftey Cable
619590527
Unavailable
50
Shrink tubing
619590528
Unavailable
