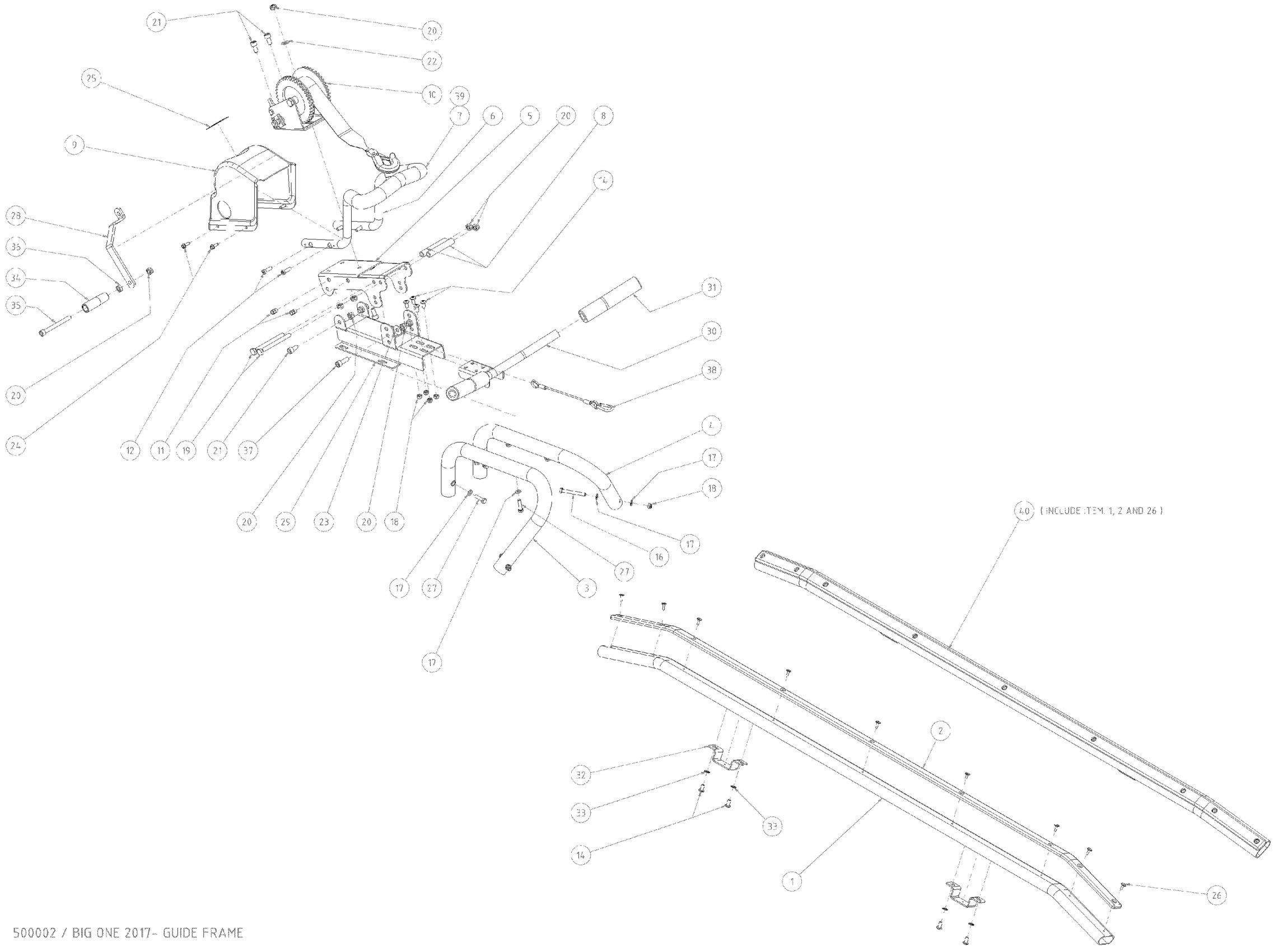

Sea-doo Trailer Big One (Europe Only), 2017 Guide Frame Diagram
#
1
Runner Big One
619590363
Unavailable
2
Boat Slide Big One
619590364
Unavailable
3
Outer tube front Big One [left]
619590447
Unavailable
4
Outer tube front Big One [right]
619590448
Unavailable
5
Winch Bracket
619590365
Unavailable
6
Front guard
619590435
Unavailable
7
Softdock Front Guard
619590475
Unavailable
8
Spacer
619590366
Unavailable
9
Winsch Cover
619590367
Unavailable
10
Winch
619590368
Unavailable
11
Threaded Inserts Steel Open M8
619590511
Unavailable
11
Threaded Inserts Steel Open Hex. M8
619590529
Unavailable
12
Torx Screw M8 x 25
619590499
Unavailable
14
Torx Screw M8 x 16
619 590 370
Unavailable
16
Hex. Cap Screw M8 x 65
619590489
Unavailable
17
Washer Ø8,4 / 16 / 1,6
619590503
Unavailable
18
Elastic Locking Nut M8
619 590 371
Unavailable
19
Hex. Cap Screw M10 x 110
619590372
Unavailable
20
Elastic Locking Nut M10
619 590 359
Unavailable
20
Nut M10 FZB
619590526
Unavailable
21
Allen screw M10 x 20 FZB
619590524
Unavailable
22
Washer Ø11 / 22 / 2
619590375
Unavailable
23
Washer Ø11,0 / 28 / 2,0
619590548
Unavailable
24
Drill screw 6,3 x 19 FZB
619590428
Unavailable
25
BRP Logo 68mm
516008739
$16.99
26
Pop rivet 4,8 x 16 [Black] Big head
619590376
Unavailable
27
Hex. Cap Screw M8 x 30
619590486
Unavailable
28
Winch Handle
619590562
Unavailable
29
Bracket
619590378
Unavailable
30
Front Runner Big One FZV
619590379
Unavailable
31
Softdock Big One
619590380
Unavailable
32
Bracket
619590449
Unavailable
33
Lockingwasher Ø8,4
619590507
Unavailable
34
Handle
619590377
Unavailable
35
Allen screw M10 x 100 FZB
619590525
Unavailable
36
Elastic Locking Nut M10
619 590 359
Unavailable
37
Allen screw M10 x 30 FZB
619590544
Unavailable
38
Saftey Cable
619590527
Unavailable
