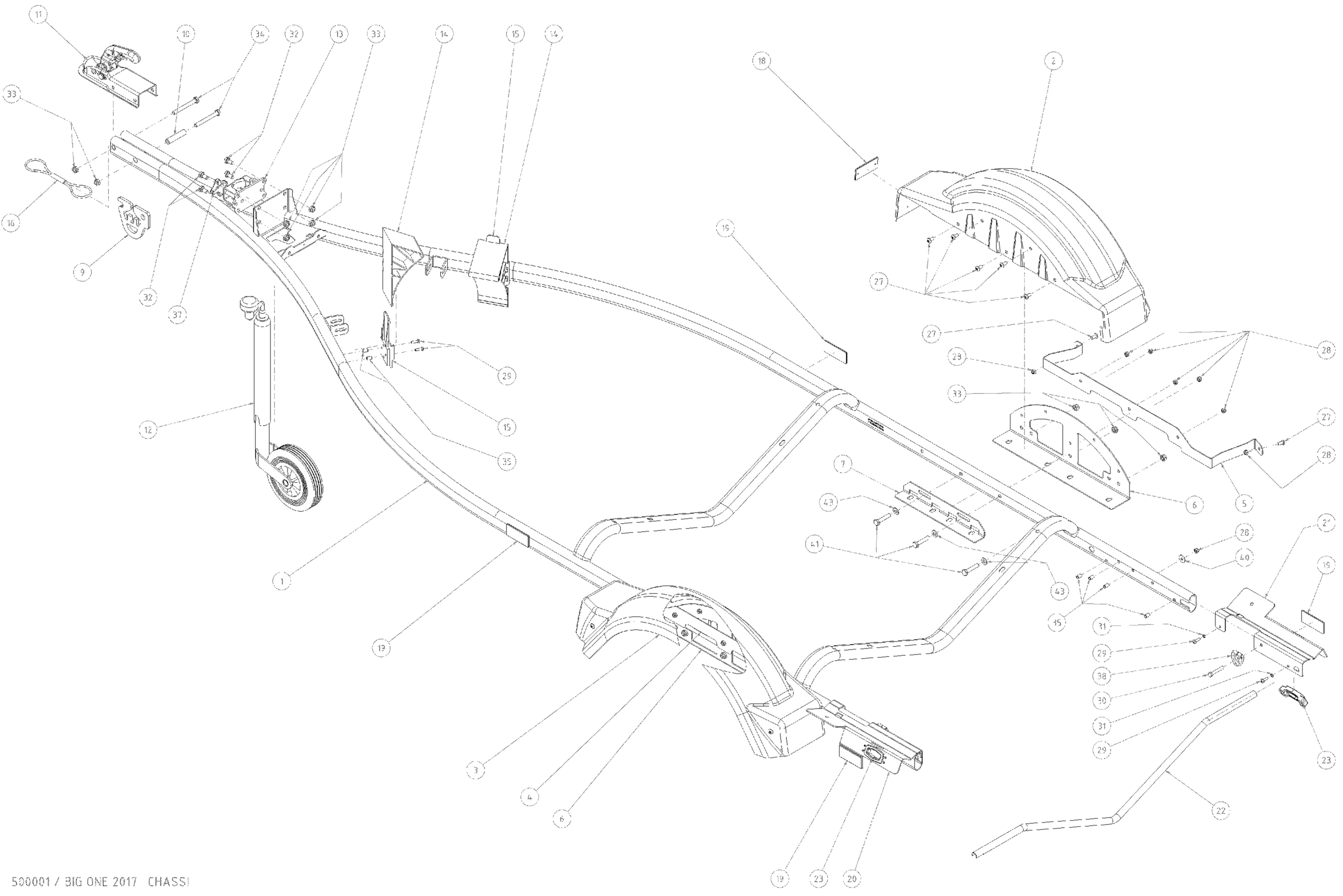

Sea-doo Trailer Big One (Europe Only), 2017 Chassis Diagram
#
1
Frame
619 590 446
Unavailable
2
Mudguard Big One [right]
619 590 348
Unavailable
3
Mudguard Big One [left]
619 590 349
Unavailable
4
Mudguard bracket Left
619 590 540
Unavailable
5
Mudguard bracket Right
619 590 541
Unavailable
6
Mounting Bracket Axle & Mudguard
619 590 451
Unavailable
7
Axle Bracket
619 590 452
Unavailable
9
Wire bracket
619 590 350
Unavailable
10
Spacer
619 590 351
Unavailable
11
Ball coupling
619590352
Unavailable
12
Jockey Wheel
619 590 353
Unavailable
13
Jockey Wheel Bracket
619 590 354
Unavailable
14
Wheel Chock
619 590 481
Unavailable
15
Holder Wheel Chock
619 590 482
Unavailable
16
Safety Cable
619 590 355
Unavailable
18
Reflector White
619 590 429
Unavailable
19
Reflector Amber
619 590 384
Unavailable
20
Light bracket [left]
619 590 537
Unavailable
21
Light bracket [right]
619 590 538
Unavailable
22
Underrun Protection
619 590 453
Unavailable
23
Linq Base Kit
715002350
$25.99
27
Torx Screw M8 x 16
619 590 370
Unavailable
28
Elastic Locking Nut M8
619 590 371
Unavailable
29
Torx Screw M6 x 20
619 590 542
Unavailable
30
Frame
619 590 446
Unavailable
31
Lockingwasher Ø6,4 / 11
619 590 539
Unavailable
32
Hex. Cap Screw M10 x 20
619 590 358
Unavailable
33
Elastic Locking Nut M10
619 590 359
Unavailable
34
Hex. Cap Screw M10 x 90
619 590 360
Unavailable
35
Threaded Inserts Steel Open Round M8
619 590 523
Unavailable
37
Knob M12 x 60
619 590 480
Unavailable
38
Anchor Ring
619 590 520
Unavailable
40
Washer Ø8,4 / 24 / 2
619 590 504
Unavailable
41
Hex. Cap Screw M10 x 50
619 590 490
Unavailable
