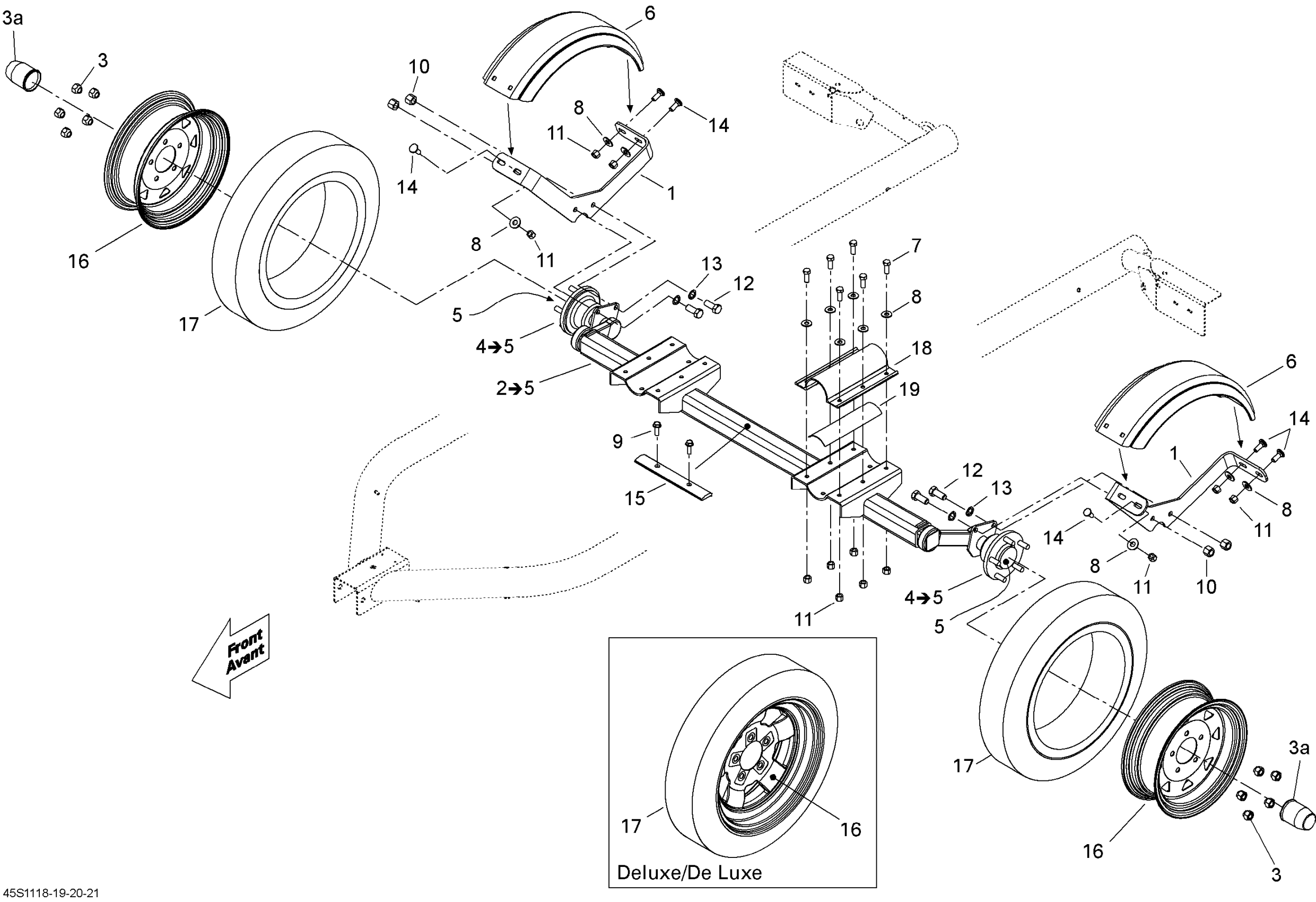

Sea-doo Trailer (Advanced Tec iCatch I De Luxe) 2011 09- Frame Diagram

Bracket | Galvanized Model

262000041

Unavailable

BRACKET - Call your local BRP dealership | Black Model

262000067

Unavailable

SUSPENSION ASS'Y - Call your local BRP dealership | Includes 2 to 5

262000040

Unavailable

CHROME NUT 1/2-20 - Call your local BRP dealership

269800118

Unavailable

CHROME CAP - Call your local BRP dealership

269800119

$29.99

HUB ASS'Y - Call your local BRP dealership | Includes 4 to 5

296000319

Unavailable

HUB DUST CAP - Call your local BRP dealership This part replaces 296000320.

271001851

Unavailable

WHEEL FENDER, GREY - Call your local BRP dealership

262000042

Unavailable

HEX. CAP SCREW 3/8 -16 X 1 - Call your local BRP dealership

269800305

$1.09

FLAT WASHER - Call your local BRP dealership

269800300

Unavailable

SCREW - Call your local BRP dealership

269800136

Unavailable

CENTERLOCK NUT 1/2-1 - Call your local BRP dealership

269800310

$1.09

CENTERLOCK NUT - Call your local BRP dealership

269800299

Unavailable

Hex. Bolt 1/2-13 X 1-1/4

269800407

Unavailable

Indented Lock Washer 1/2''

269800408

Unavailable

CARRIAGE BOLT 3/8-16 X 1 - Call your local BRP dealership

269800409

Unavailable

Protector

291003015

Unavailable

ALLOY RIM 12'' - Call your local BRP dealership

269800120

Unavailable

TIRE_4,80X12B - Call your local BRP dealership

271001678

$91.99

Clamp

262000043

Unavailable

Gasket

269800144

Unavailable
