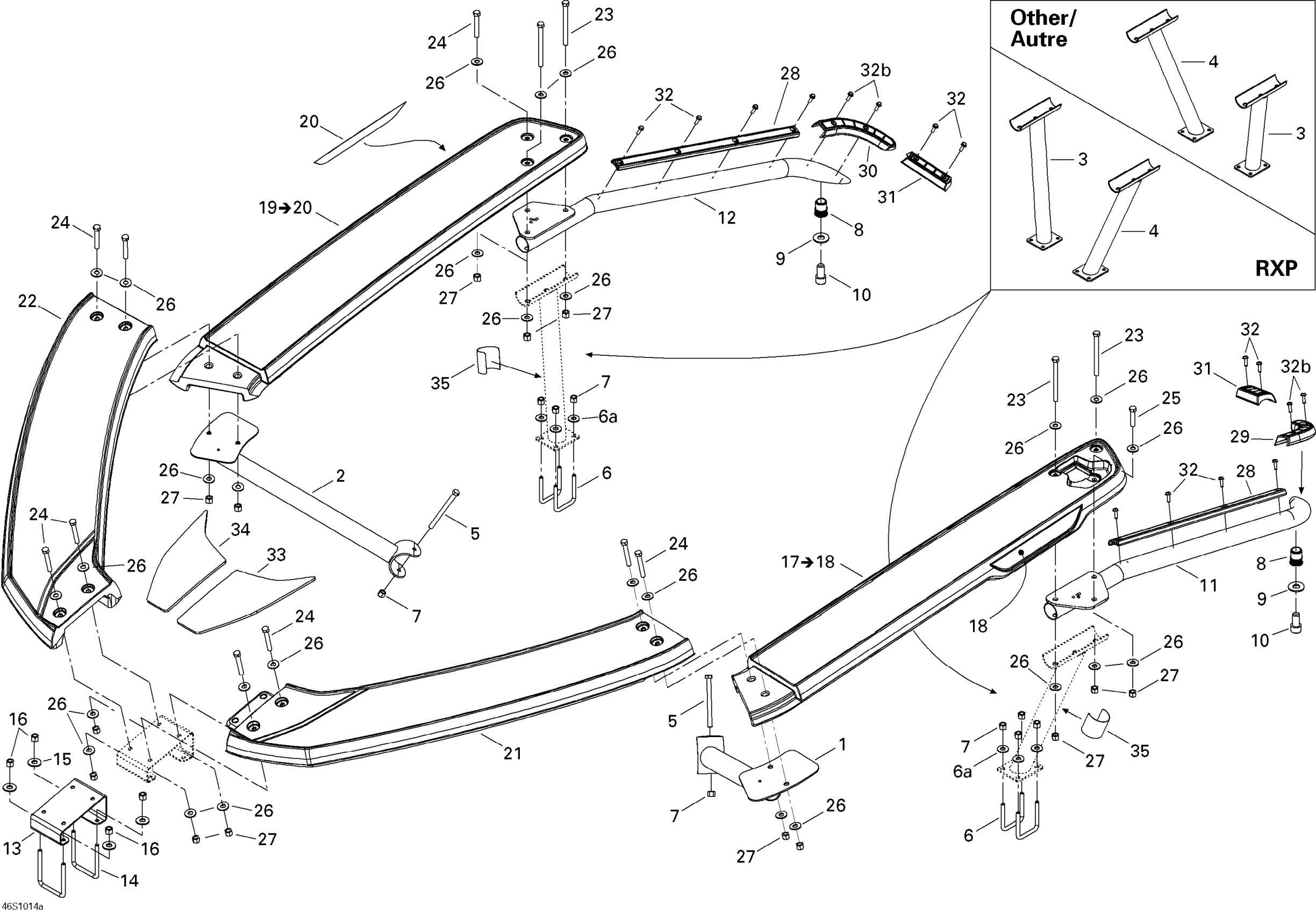

Sea-doo Trailer Advanced Tec iCatch 1 2010 09- Utilities 1 Diagram

#

Description
Price

1

LH FRONT WALK-FOOT BRACKET, GALVANIZED - Call your local BRP dealership | Galvanized Model

291002967

Unavailable

1

LH Front Walk-Foot Bracket, Black | Black Model

291003083

Unavailable

2

RH FRONT WALK-FOOT BRACKET, GALVANIZED - Call your local BRP dealership | Galvanized Model

291002968

Unavailable

2

RH FRONT WALK-FOOT BRACKET, BLACK - Call your local BRP dealership | Black Model

291003084

Unavailable

3

LH REAR FOOT BRACKET, GALVANIZED - Call your local BRP dealership | Galvanized Model

291003325

Unavailable

3

LH REAR FOOT BRACKET, BLACK - Call your local BRP dealership | Black Model

291003327

Unavailable

4

RH REAR FOOT BRACKET, GALVANIZED - Call your local BRP dealership | Galvanized Model

291003326

Unavailable

4

RH REAR FOOT BRACKET, BLACK - Call your local BRP dealership | Black Model

291003328

Unavailable

5

HEX. BOLT 3/8''-16 X 4 1/2'' - Call your local BRP dealership

269800317

$13.49

6

U-BOLT 3/8''-16 X 2-7/16'' X 3-1/4'' - Call your local BRP dealership

269800313

Unavailable

6a

FLAT WASHER - Call your local BRP dealership

269800300

Unavailable

7

LOCK NUT - Call your local BRP dealership

269800091

Unavailable

8

THREAD INSERT - Call your local BRP dealership

269800165

Unavailable

9

FLAT WASHER - Call your local BRP dealership

269800300

Unavailable

10

Socket Head Screw

269800164

Unavailable

11

LH REAR GUIDE, GALVANIZED - Call your local BRP dealership | Galvanized Model

291003400

Unavailable

11

LH REAR GUIDE, BLACK - Call your local BRP dealership | Black Model

291003401

Unavailable

12

RH Rear Guide, Galvanized | Galvanized Model

291002972

Unavailable

12

RH REAR GUIDE, BLACK - Call your local BRP dealership | Black Model

291003088

Unavailable

13

Bracket | Galvanized Model

291002973

Unavailable

13

Bracket | Black Model

291003089

Unavailable

14

U BOLT - Call your local BRP dealership This part replaces 269800400.

269800138

$11.49

15

FLAT WASHER - Call your local BRP dealership

269800300

Unavailable

16

LOCK NUT - Call your local BRP dealership

269800091

Unavailable

17

LH Rear Walkpad

291002831

Unavailable

18

DECAL - Call your local BRP dealership

219903227

Unavailable

19

RH Rear Walkpad

291002830

Unavailable

20

DECAL - Call your local BRP dealership

219903227

Unavailable

21

LH FRONT WALKPAD - Call your local BRP dealership

291002829

Unavailable

22

RH Front Walkpad

291002828

Unavailable

23

Hexagonal Head Bolt 3/8 X 4 1/2

269800152

Unavailable

24

Hexagonal Head Bolt 3/8 X 2 1/2

269800153

Unavailable

25

Hexagonal Head Bolt 3/8 X 1 3/4

269800107

Unavailable

26

Washer 3/8

269800154

Unavailable

27

Hex. Lock Nut 3/8 | iCATCH Model only

269800155

Unavailable

28

Protector

262000037

Unavailable

29

LH ELBOW PROTECTOR - Call your local BRP dealership

262000024

Unavailable

30

RH Elbow Protector

262000057

Unavailable

31

Protector

262000059

Unavailable

32

SCREW - Call your local BRP dealership

269800136

Unavailable

32b

Screw

269800200

Unavailable

33

Carpet

269800110

Unavailable

34

CARPET - Call your local BRP dealership

269800111

Unavailable

35

DECAL - Call your local BRP dealership

219903230

Unavailable
